DRIVETRAIN
347
DRIVETRAIN

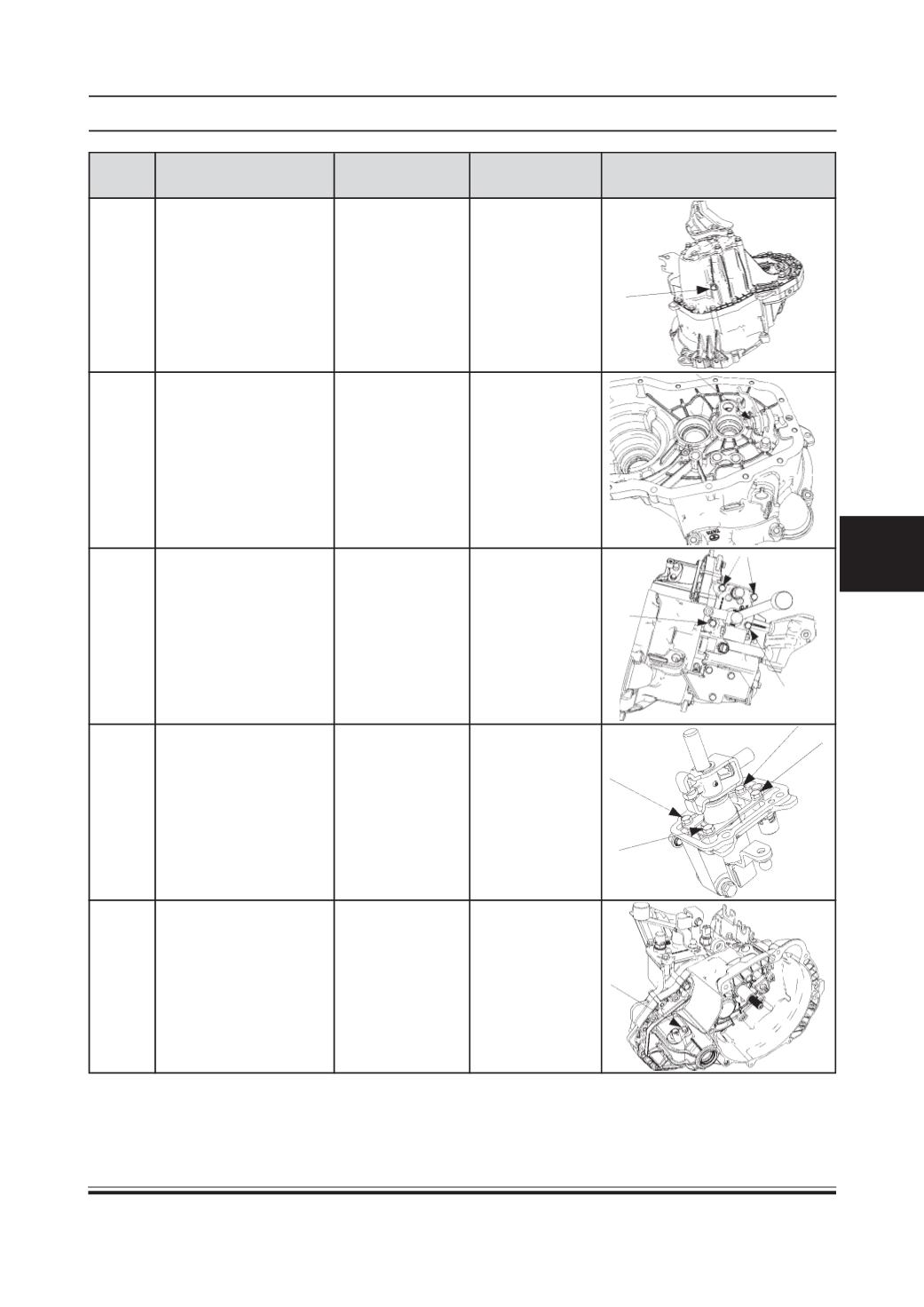

11 Reverse Idler bolt.
M8 Bolt
2.1 ~ 2.5
(1 No)
12 Reverse shifter pin on
M8 Bolt (pin)
2.1 ~ 2.5
the bracket.
(1No)
13 Top cover assembly
M8 Bolts
2.1 ~ 2.5
fastening on rear half.
(4 Nos.)
14 Top cover plate
M6 Bolts
0.85 ~ 1.25
fastening.
(4 Nos.)
15 Vehicle speed sensor on
M6 Bolt
0.85 ~ 1.25
transaxle
(1 No)
SL NO DESCRIPTION
FASTENER
TORQUE
LOCATION
TYPE / QTY
(Kg–m)
