NANO

TRANSAXLE-AMT

4.0 TIGHTENING TORQUES AND CONSTRUCTIONAL DETAILS:-

Precautions:-

1. The fasteners should be tightened to following specified torque. If the fasteners are not tightened to

specified torque that is either over tightened or under tightened. It will result in leakage at joints &

damage to the parts/threads. It will also adversely affect the performances of the parts / system because

various clearances / bearing plays in the aggregates are governed by the recommended torques of the

fasteners.

2. When choosing the torque wrench, remember that it should not be subjected to torque exceeding three-

fourth of its capacity.

3. Before tightening, clean the threads and apply a little lubricating oil if required.

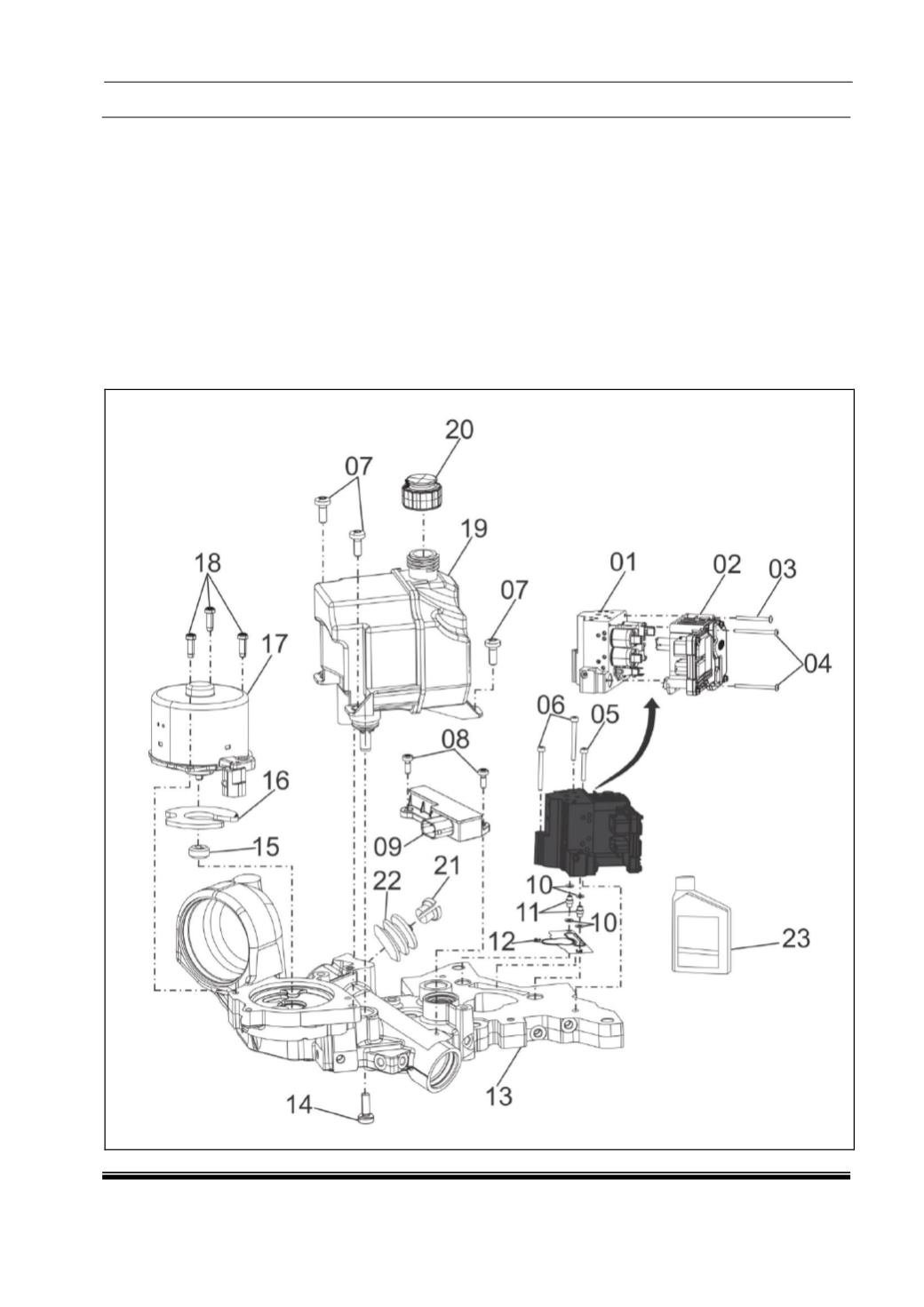

A. Exploded View:
