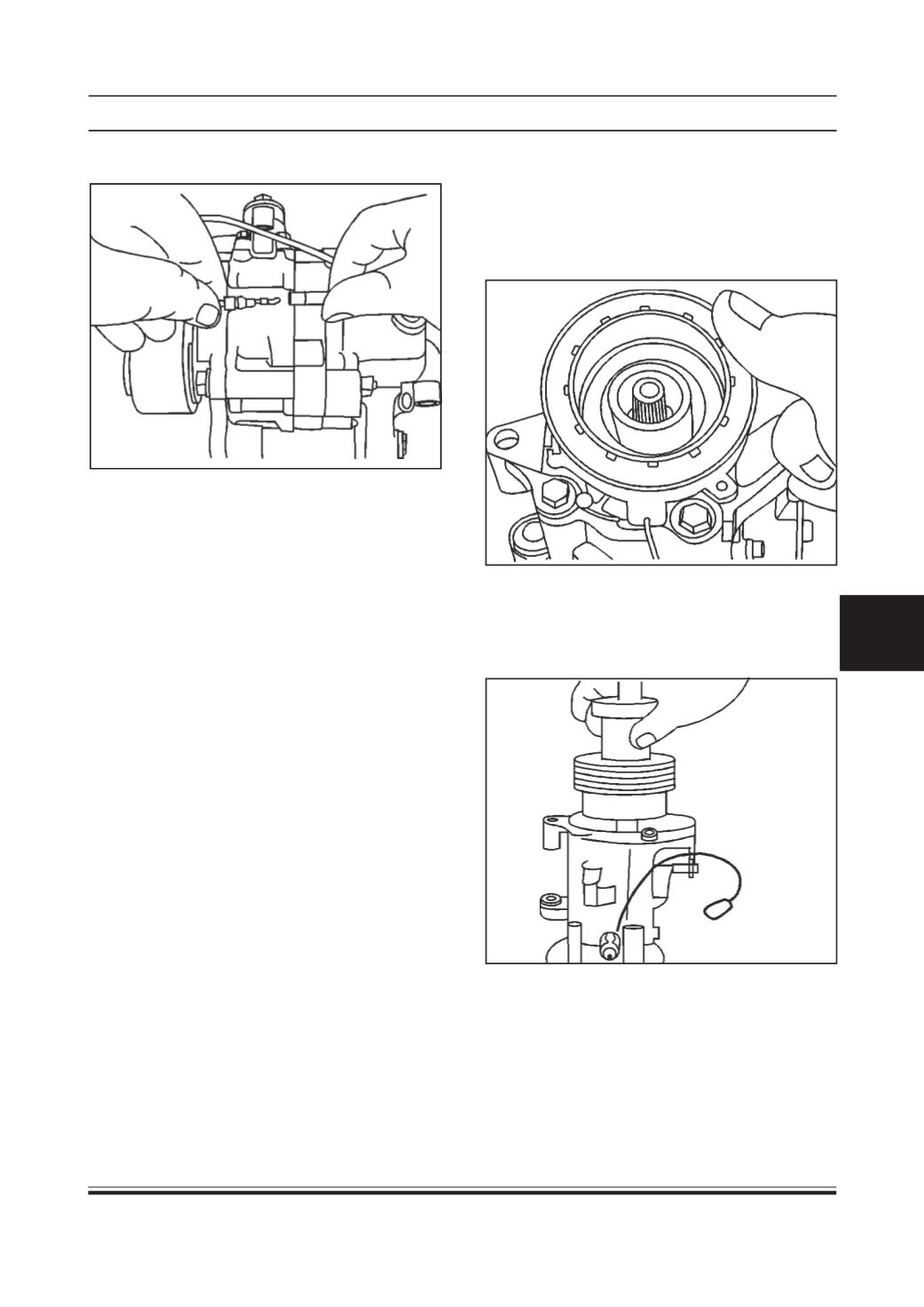

- Remove the thermal coil and thermal protector

COMPRESSOR CLUTCH ASSEMBLY

Follow the above order reversely for assembling, taking

note the following points.

- Always use new circlips

- Fit the lug of coil to the compressor dented portion

when fix the coil.

- Plain surface of circlip to be attached to the

armature side when coil is mounted.

- The clutch pulley to be inserted using special tool

FF-002.
