ELECTRICAL
675
ELECTRICAL

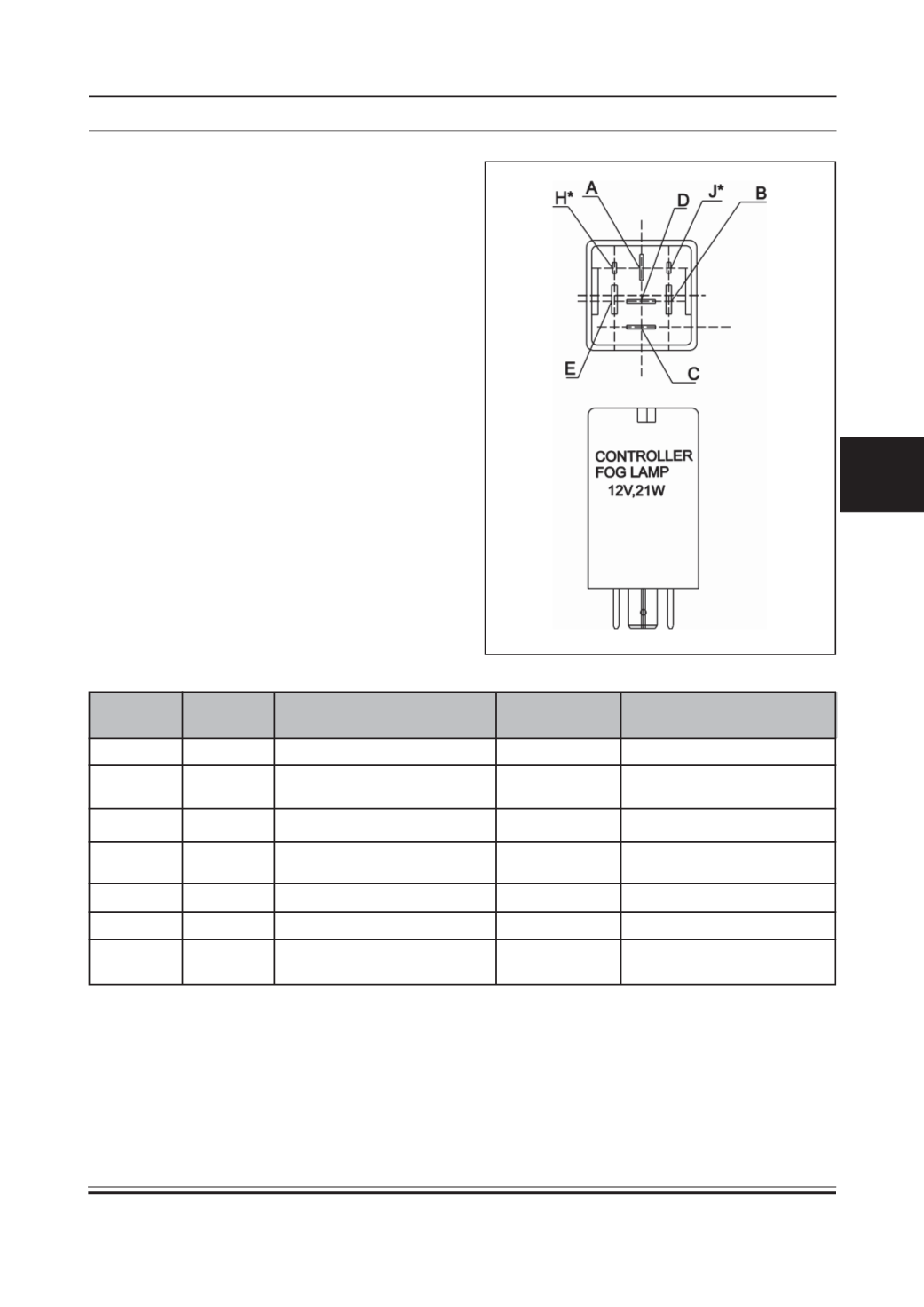

8.10 FOG LAMP CONTROLLER
FUNCTION :
It controls the fog lamp operation.
Fog lamp is ON only when the headlamp & parking
lamp is ON.
LOCATION:
It is located in the cabin fuse box.
CONNECTIONDETAILS:
TERMINAL TERMINAL DESCRIPTION
ACTIVE
CONDITION
NAME
TYPE
LEVEL
B
Supply Battery supply (30)
VCC
Permanent
H
Input
Parking Input/Key in
VCC
Parking lamps on/
Key in
J
Input
Input from fog lamp S/w
VCC
Switch ON
C
Input
Input from combi switch,
VCC
Switch ON
Headlamp ON
D
Input
Input from rear fog lamp switch
VCC
Switch ON
E
Input
Ground To Unit
GND
Permanent
A
Output
Output to Fog lamp
VCC
As per performance
check table
