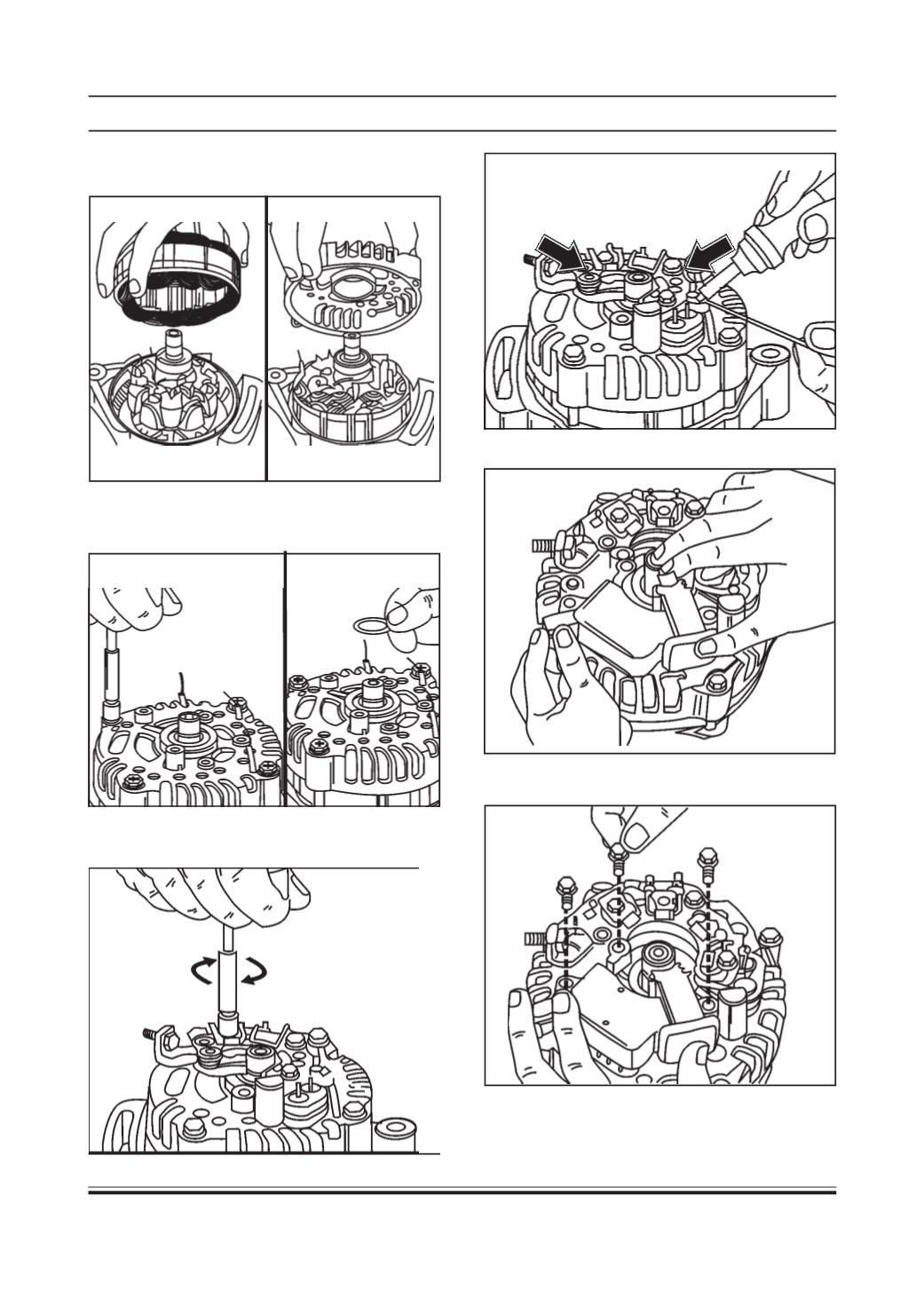

14) Hold the Regulator cum Brush Box then fix the

screw 3 nos.

12) Place the rectifier then fix the screws 3 nos. and

soldering the stator leads.

13) Insert the Regulator cum Brush Box.

10) Insert the Stator winding assembly and fix the SRE

bracket assembly.

11) Tightening the Through bolt 4 nos. to the SRE

Bracket assembly and fix the Rubber Seal into the

Bracket.
