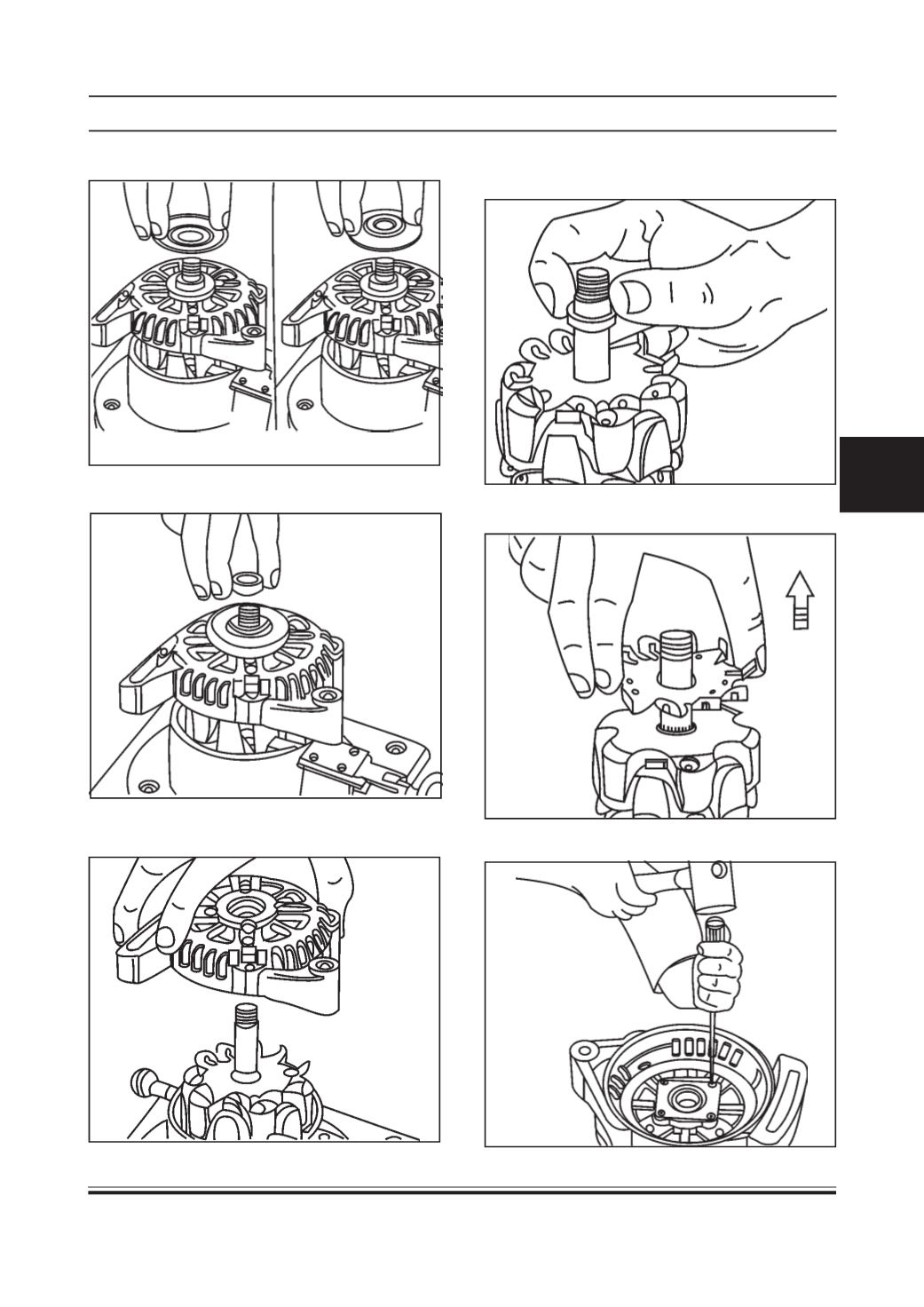

17) Remove the Bearing Collar from the Rotor
assembly.
18) Remove and Separate the DE Bracket assy. from
the Stator winding assembly.
19) Remove and Separate the Spacer from theArma-
ture assembly.
20) Remove and Separate the DE Fan from the Ro-
tor assembly.
16) Remove the Pulley from the DE Bracket assy.
21) Remove the rivet from the DE Bracket assembly.
