NANO

SUSPENSION SYSTEM

463

SUSPENSION

NOTE:

Refer exploded view of Wheel Hub andWheel

Bearing for removal and installation process.

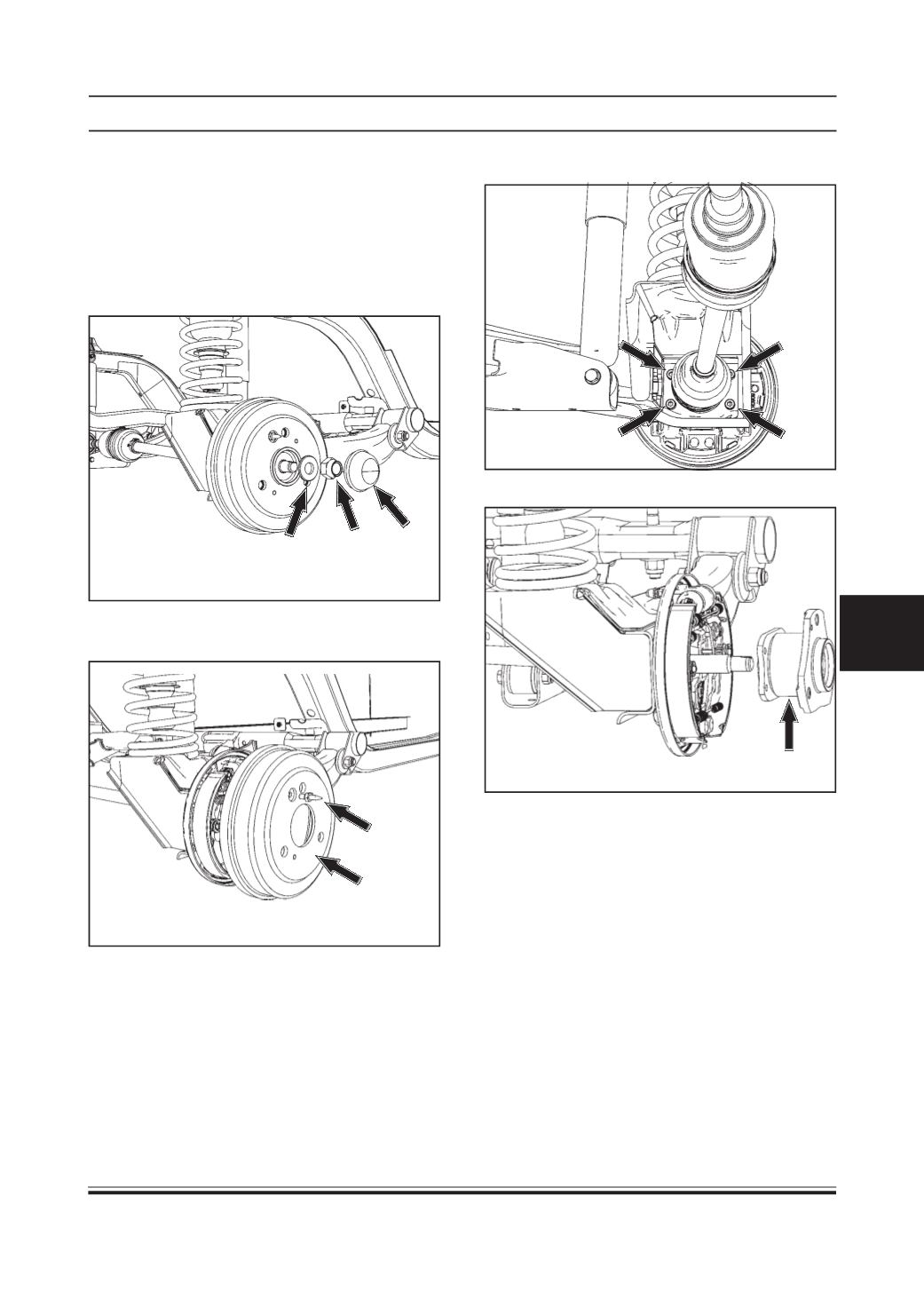

Removal

1. Remove wheel(s) (Refer wheel removal procedure/

Wheels and tires group)

2. Remove wheel hub cover (10), wheel lock nut (09)

and thrust washer (08) .

3. Remove the brake drum pin (spring dowel) (06)

securing brake drum and pull out brake drum (07).

4. Remove four mounting bolts of rear hub unit (01)

5. Take out rear hub unit (01).

6. Disassemble the hub unit by removing brake drum

mounting flange (05) from thewheel bearing housing

(02) with the help of following special tools.

(a) Puller for removing wheel bearing housing from

flange (Part No. 3125892533)

(b) Dolly to guide the puller (3125892533) for

removing wheel bearing housing from flange (Part

No. 2871 5890 32 04).
