SUSPENSION SYSTEM

Sr. No.

Description

1 Shock absorber

2 Semi trailing arm

3 Semi trailing arm bush

4 Coil spring

5 Rubber spring seat (upper)

The construction of rear suspension system is as given below:

Rear suspension is also independent, which comprises of semi trailing arm assembly with coil spring and hydraulic

shock absorbers.

The semi trailing arm assemblies are bolted to the sub frame using rubber bushes.

The bottom end of hydraulic shock absorber is mounted to semi trailing arm assembly while the upper end is

bolted to the body. Similarly coil spring bottom end is mounted on semi trailing arm assembly and top end is

mounted on body.

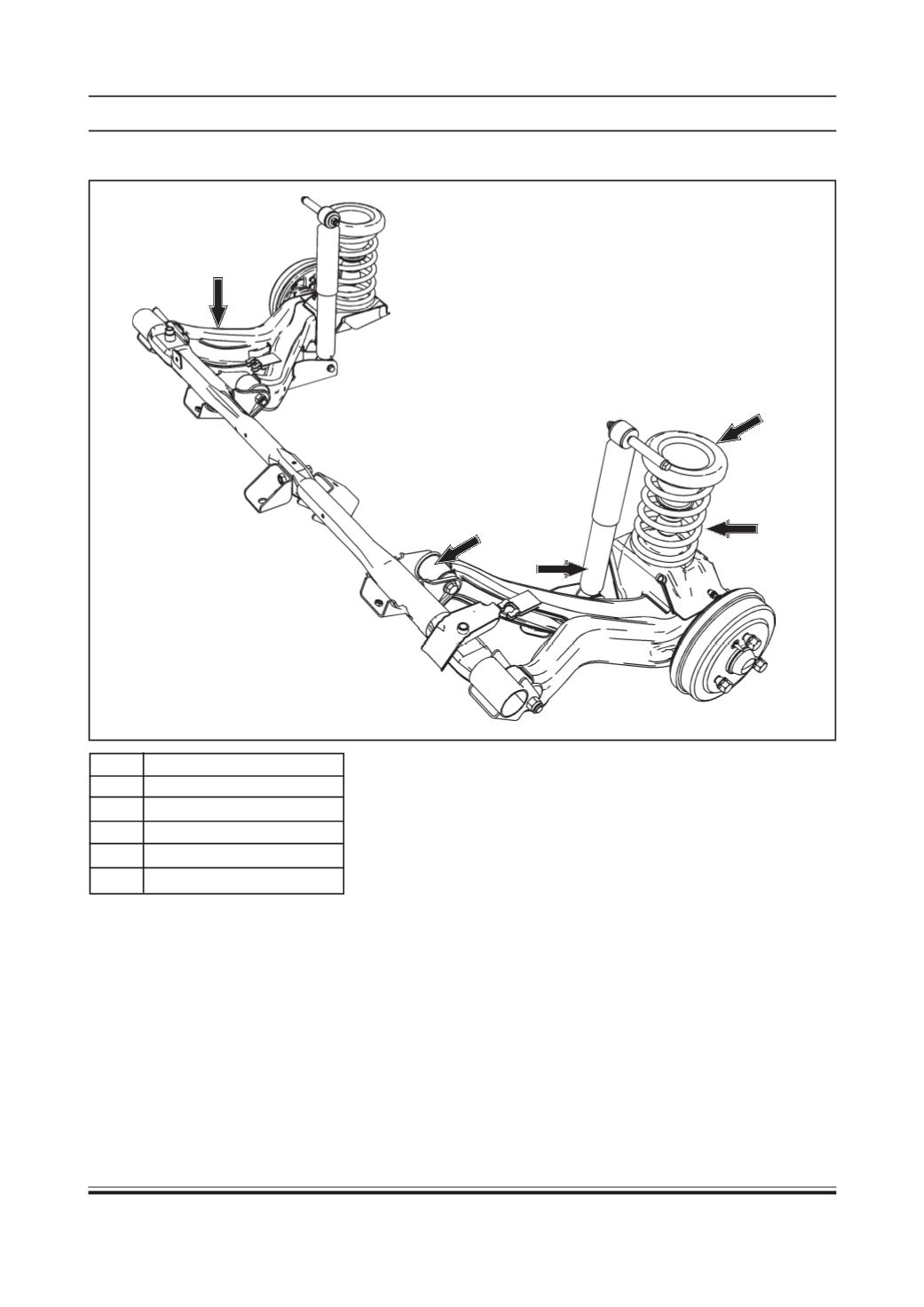

LAY OUT OF REAR SUSPENSION SYSTEM
