NANO

DRIVETRAIN

339

DRIVETRAIN

2. Insert the clip to lock the clutch cable with the

firewall.

Fitment:

Precautions:

•

Ensure that grease is applied at pedal holding

hook.

•

Ensure clutch cable roller is free to rotate and then

assemble the cable into the hook.

•

Ensure that there is no sharp bend in the cable in

routed condition, There is sufficient clearance be-

tween clutch cable & exhaust manifold.

•

Ensure clutch cable is free at clutch release lever.

•

Ensure that cable heat shield is in place

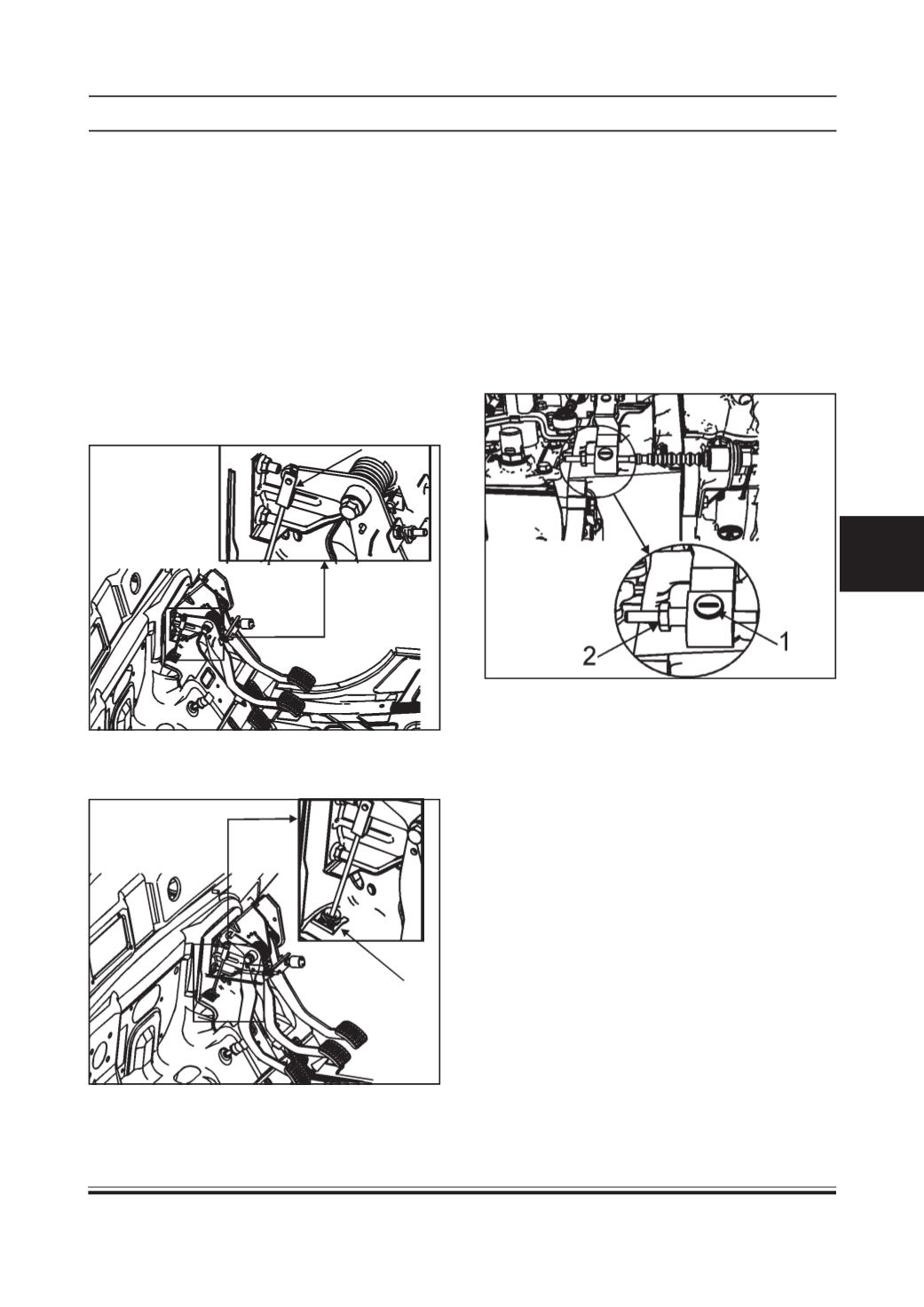

1. First lock the clutch cable with clutch pedal lever.

3. Pass the clutch cable from underside of the body

by placing the clips in there respective position,

but do not tighten the bolts.

5. Tighten all the bolts with the body so that clutch

cable remains firm in its position.

NOTE:

Marking on the cable has to be matched with the

clamps, when the cables are replaced.

4. Now lock the clutch cable at the transaxle end by

putting the pin (1) in its position & then tighten the

nut (2) as described.

a) Push the lever towards clutch cable mounting

bracket by hand until resistance is felt.

b) Tighten the lock nut by hand till touches the pin.

c) Adjust the clutch cable lock nut such that free

play 2.5 to 3 mm.

d) Check the free play of 15 to 20 mm by pressing

clutch pedal by finger until the resistance felt.
