NANO

DRIVETRAIN

335

DRIVETRAIN

Fitment:

For fitment follow the reverse order of the removal

procedure, using the Tool 2834 5890 25 01 (Clutch

Mandrel) and tighten the M8 bolts to a torque of 3.2

Kg m.

Do not mix clutch mounting bolts with other

fasteners. Do not use longer or shorter screws.

Longer screws may not tighten the clutch at all.

Shorter screws will not provide enough threads to

achieve desired tightening.

While tightening clutch mounting screws check

aligning mandrel for continuous free sliding to

ensure concentric installation of clutch disc which

will avoid trouble during installation of transaxle.

NOTE

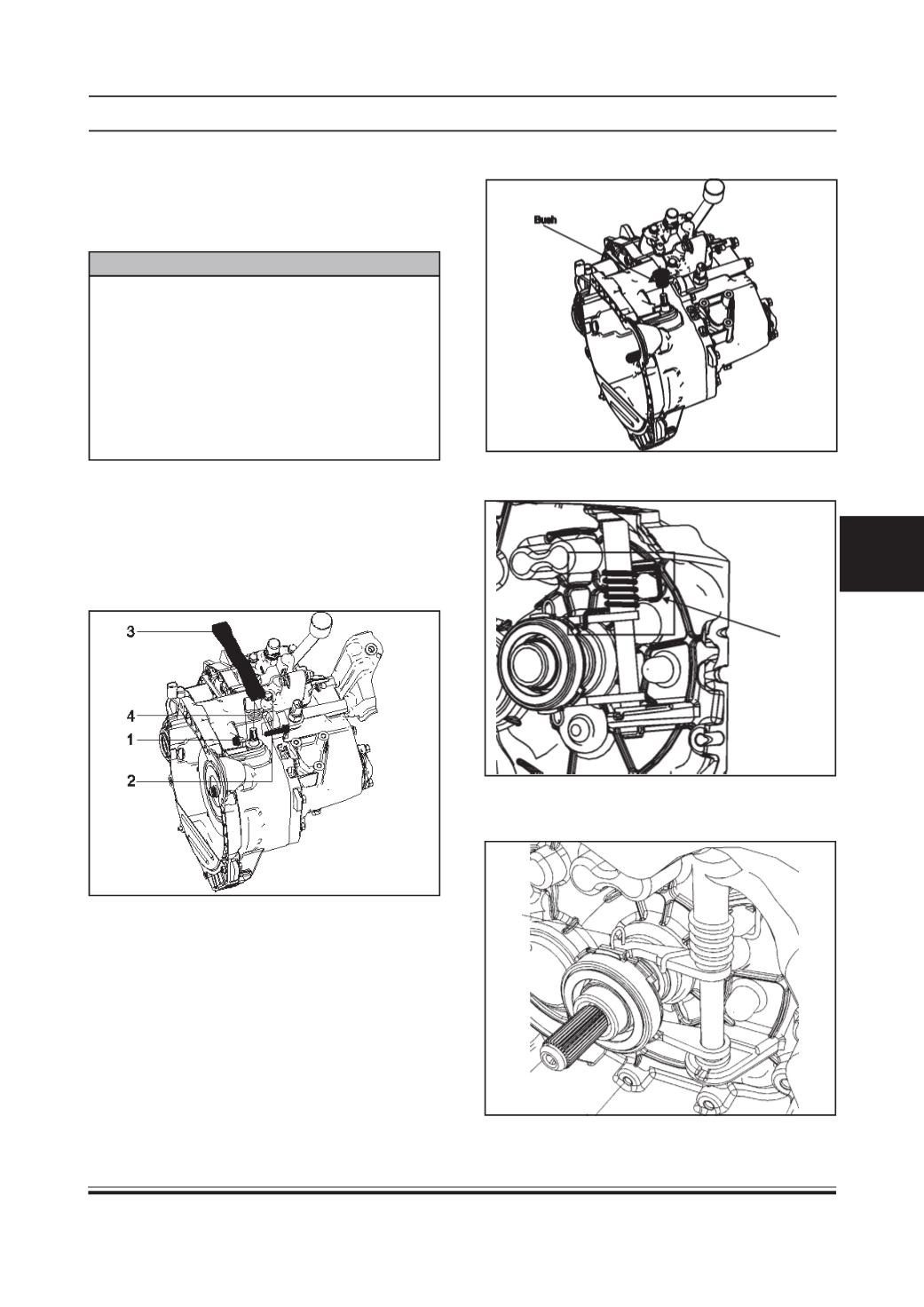

4. Remove upper bush on housing.

(b) Clutch Actuation Mechanism Overhaul

Disassembly:

1. Remove the hexagonal nut (1) & bolt (2) to loosen

clutch release lever (3).

2. Now take out the clutch release lever (3).

3. Remove external return spring (4).

5. Disconnect the internal return spring from the front

half housing.

6. Disconnect the clutch release bearing by releas-

ing the locking clip.
