DRIVETRAIN
323
DRIVETRAIN

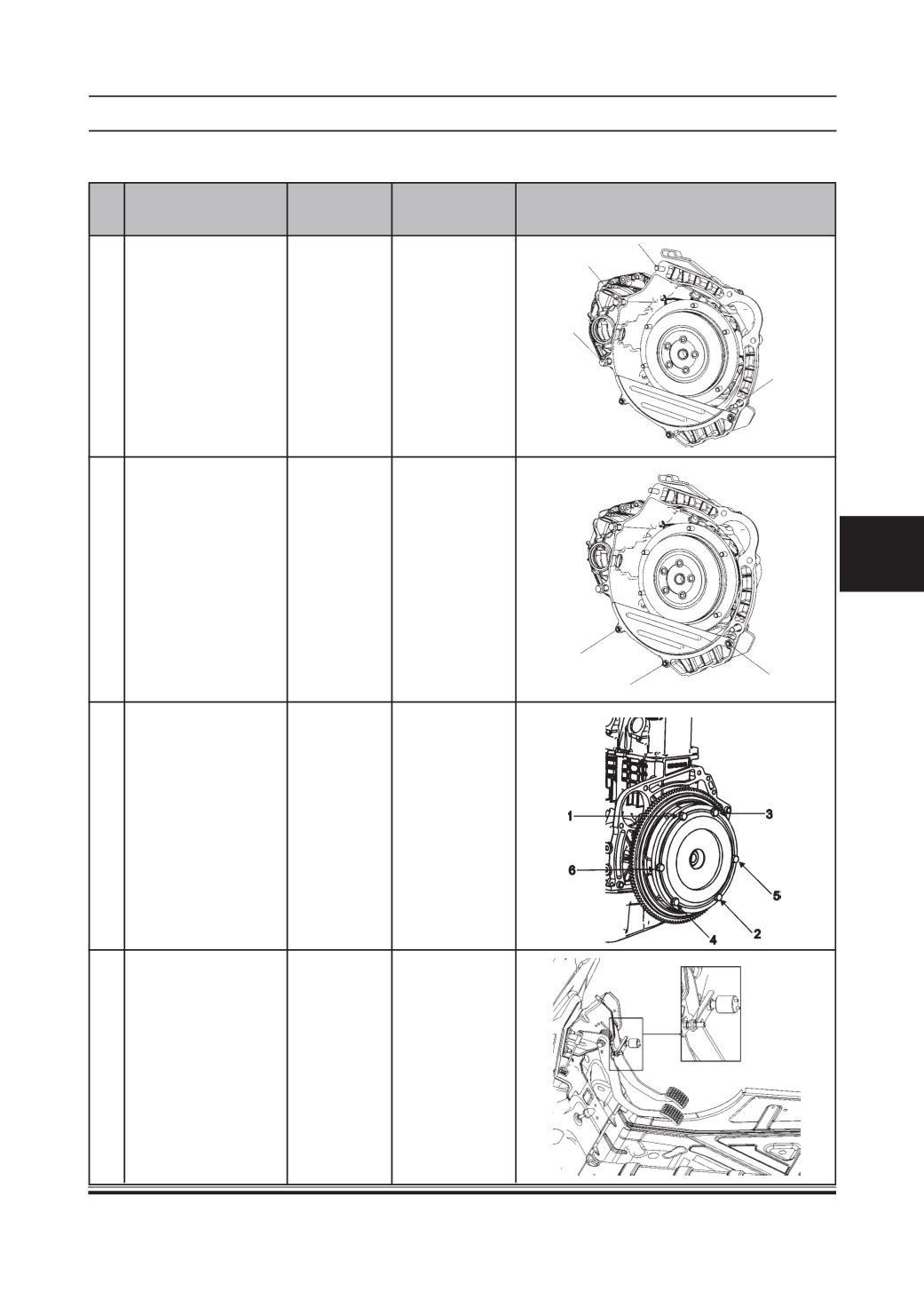

TIGHTENING TORQUES
1.
Mounting Bolts
(Clutch Housing to M8 X 40
Cylinder block)
4 Bolts
2.3 Kg -m
Sr.
No.
Description
Fastener
Type/Qty
Torque (Kg-m)
Location
2.
Mounting Bolts
Back Plate
M6 X 30
Fastening Bolts
3 Bolts
1.6 Kg -m
3.
Clutch Pressure Plate M8
Mounting Bolts
6 Bolts
3.2 Kg -m
4.
Clutch Pedal Height
M6
Adjusting Nut
1 Nut
1 – 1.2 Kg -m
