ENGINE

ECU Specifications

Component Information:

Product

MOTRONIC - Engine

Management Control Unit

Type

M17.8.4

Microcontroller

TC1762/40MHz Clock Speed

Word Length

32 Bits

Flash

1 MB

RAM

32 KB

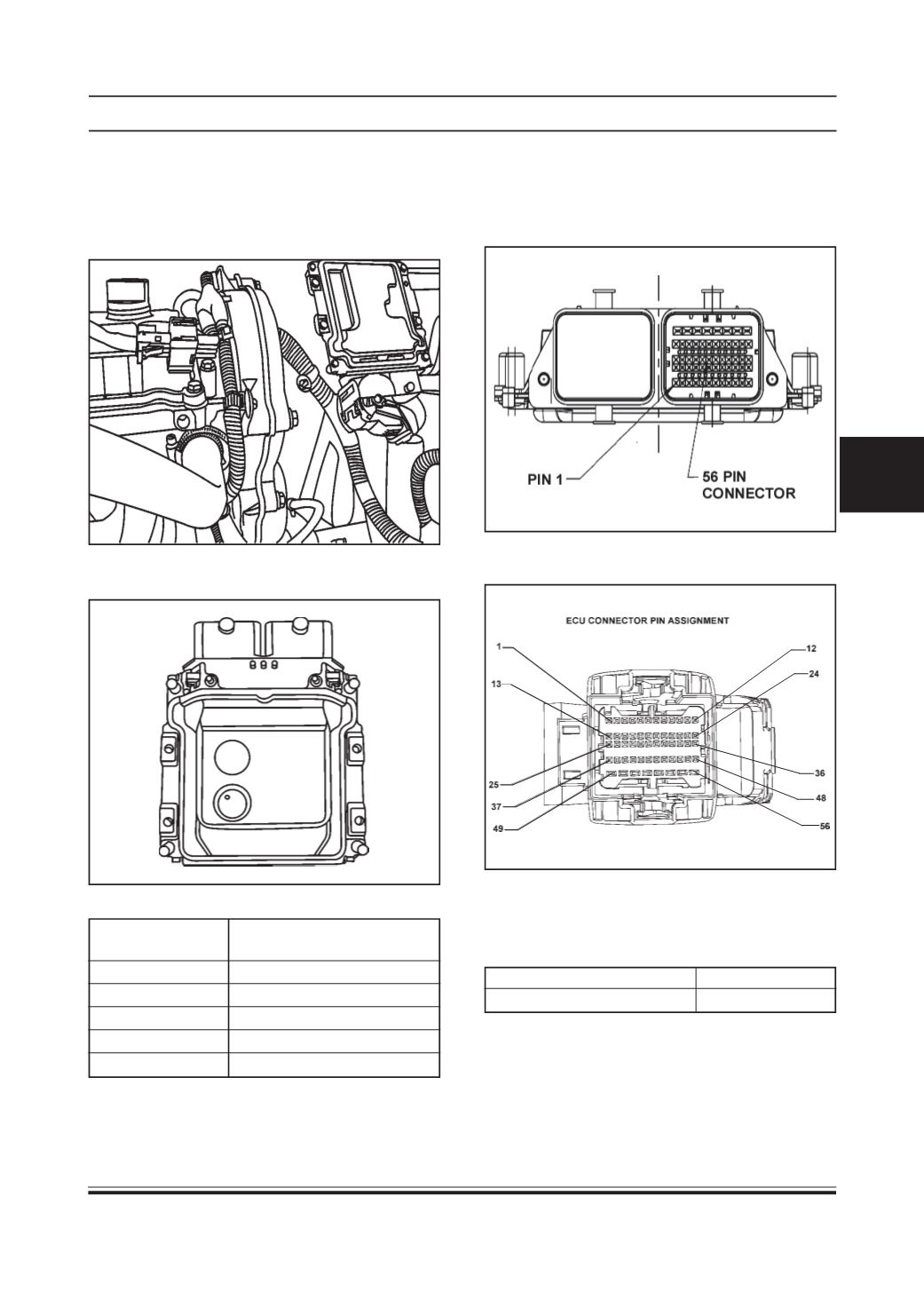

3.11.1 ECU (Electronic Control Unit)

ECU Location

ECU (Electronic Control Unit) is mounted in engine

compartment.

ECU Pin Out details

The ECU has 56 Pins allocated in one connector.

Front View of the ECU connector

ECU Connector View (Wiring Harness Side)

How to identify the pins in the wiring harness is also

shown in the picture.

ECU Storage Conditions

Storage temperature

- 40°C to 105°C

Storage relative humidity

25% to 75%
