NANO

GENERAL

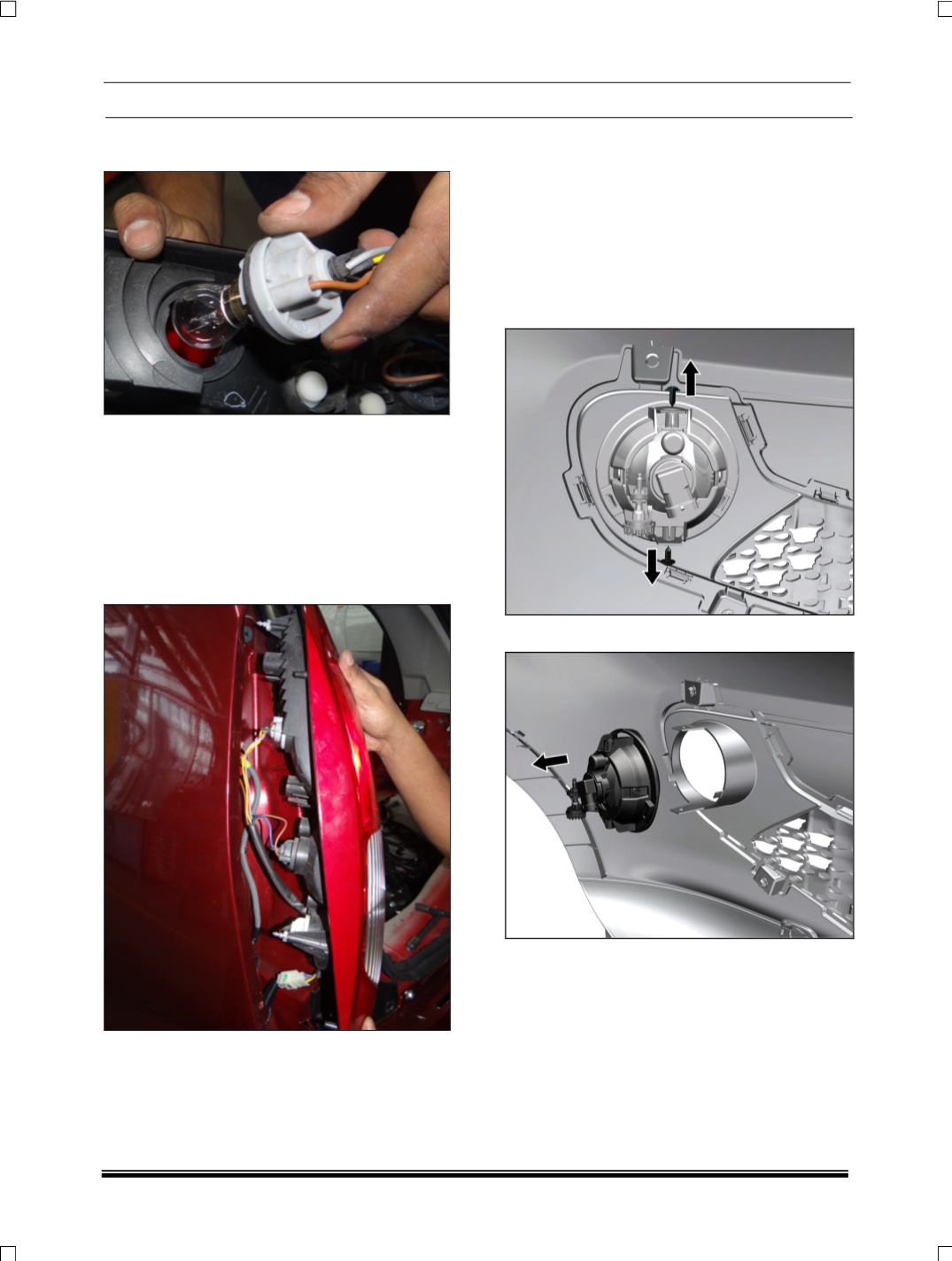

3. Remove tail lamp by turning it counter clock-

wise direction.

Re-fitment of tail lamp assembly:

1. Connect tail lamp assembly wiring connector

with harness.

2. Align guide pins of tail lamp assembly with

holes provided on body panel. Push light

through guide holes.

3. Tighten two bolts provided to fix the tail lamp

assembly.

1.6

FRONT FOG LAMP REMOVAL AND RE-

FITMENT

REMOVAL

1. Remove front bumper.

2. Disconnect electrical connection of fog lamp.

3. Take out the bumper along with fog lamp.

4. From back side of the bumper remove 2 mount-

ing screw of fog lamp.

5. Take out fog lamp.

REFITMENT

1. Fit the fog lamp assembly in the cut section of

bumper

2. Tighten the 2 mounting screw of fog lamp as-

sembly.

3. Connect electrical connection.

4. Fit the front bumper.
