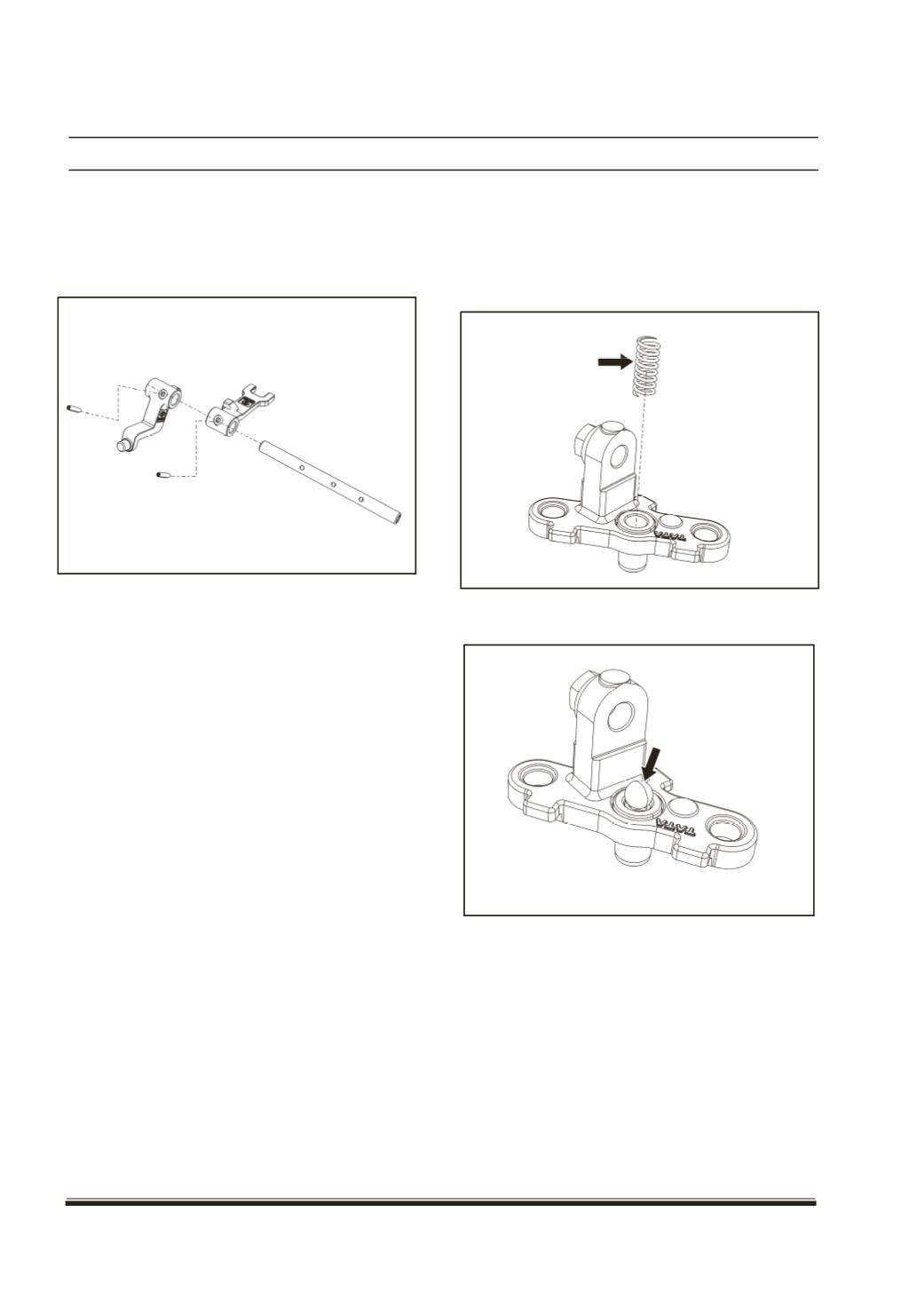

5. Assemble the reverse gear shifter by inserting

the shifter dog followed by the shifter finger from

the end.

9. Then fit the dowel (Spiral) pin such that it does

not protrude from both ends.

REVERSE GEAR SHIFTER BRACKET -

ASSEMBLY

1. Place the barrel with spring onto the reverse idler

shaft bracket.

2. Place the ball on the spring.
