ELECTRICALS
113

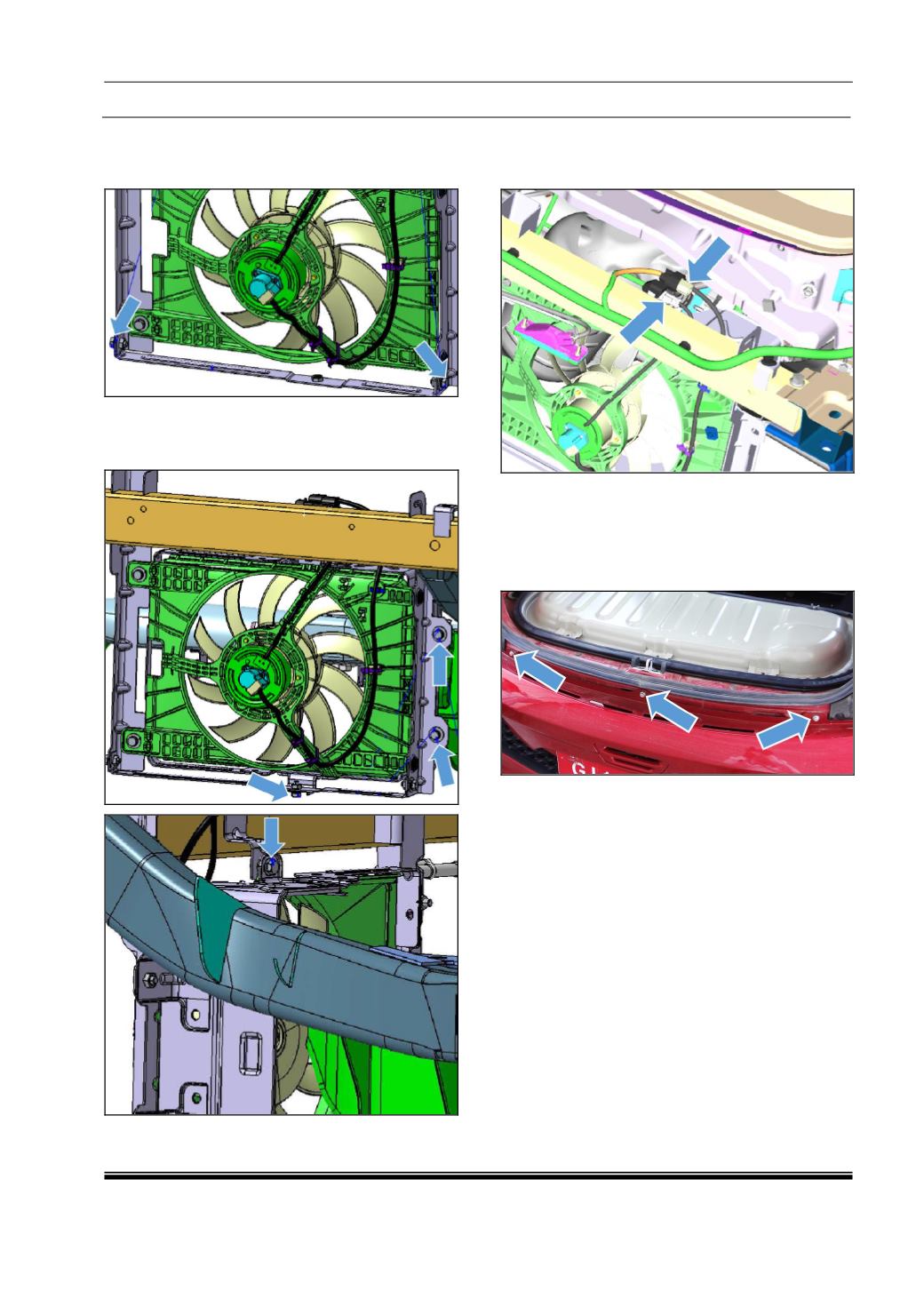

3. Fit the bolted bracket to welded bracket by
screws with washer (Quantity 2 each) and
tighten it as per specified torque. (11 ± 1 Nm).
4. Fit the all 4 bolts and washer (Quantity 3) of
exhaust fan duct assembly to welded bracket
as per specified torque. (11 ± 1 Nm).
5. Connect both (pole motor and pole sensor)
wiring harness connectors of exhaust fan
assembly.
6. Properly align the rear bumper so that no gaps
are seen in the matching face of bumper and
the body align bumper clip too.
7. Tighten the all mounting bolts and clips of rear
bumper as per specified torque.
