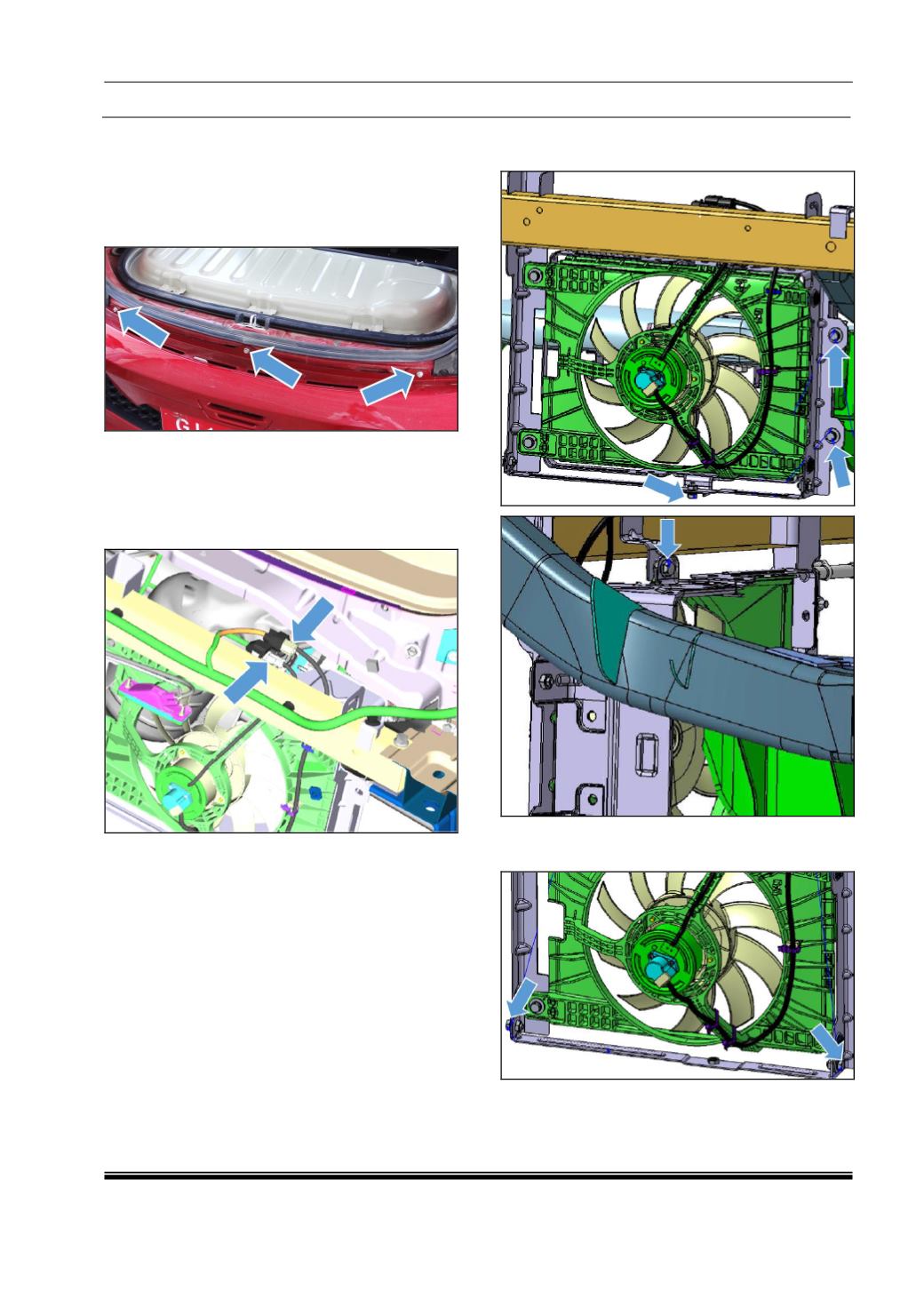

6.0 EXHAUST FAN REMOVAL AND RE-

FITMENT ON VEHICLE:-

Removal:

1. Remove the all mounting bolts and clips of rear

bumper.

2. Take out the rear bumper carefully securing to

the body.

3. Disconnect the both (pole motor and pole

sensor) wiring harness connectors of exhaust

fan assembly

4. Remove all 4 bolts and washer (Quantity 3) of

exhaust fan duct assembly from bracket.

5. Remove the both screws and washer (Quantity

2 each) of bolted bracket from welded bracket.
