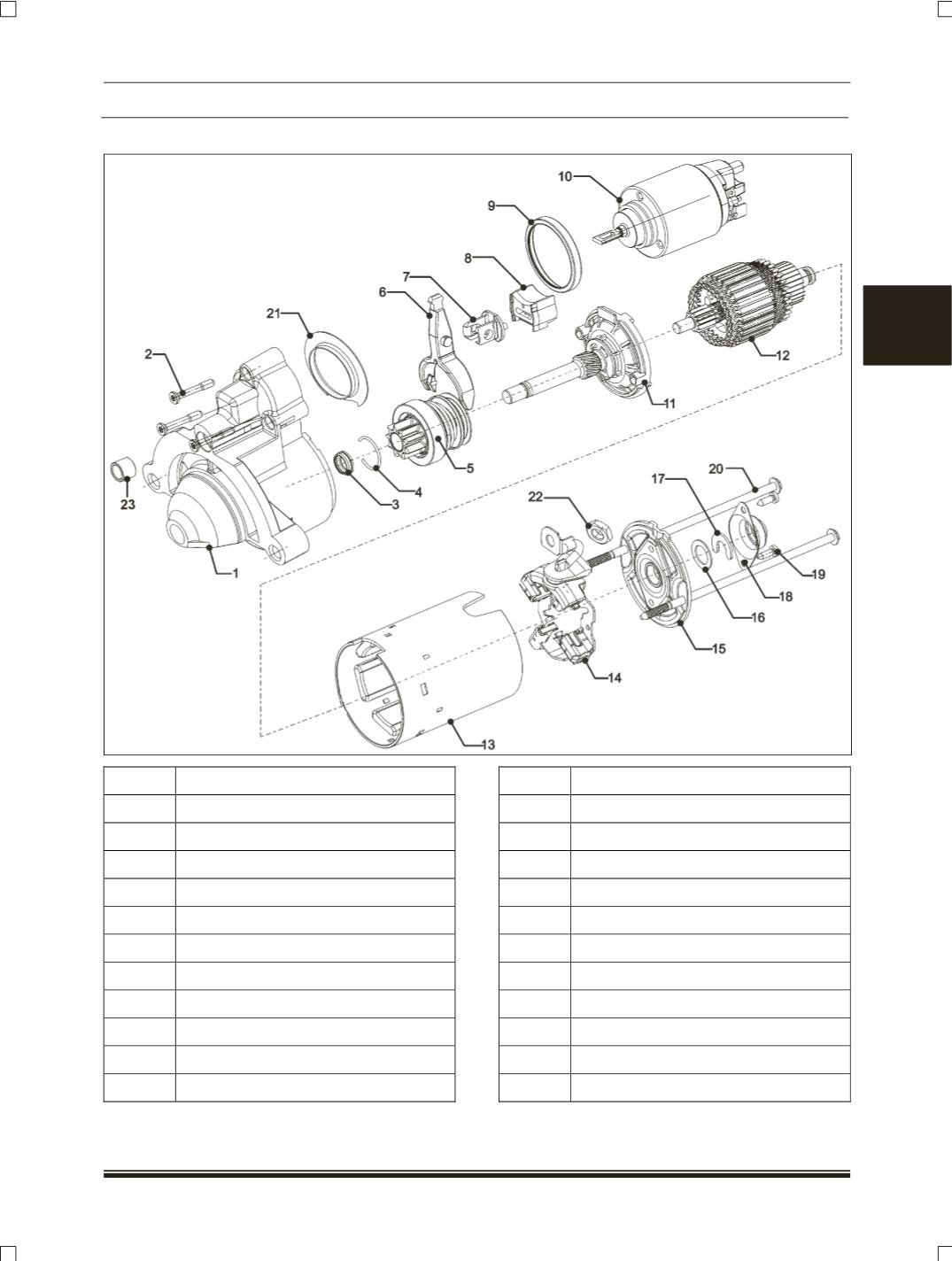

EXPLODED VIEW:
SR.NO.
DESCRIPTION
1
Drive End Shield
2
Counter Sunk Screws
3
Retainer
4
Stop Ring
5
Over Running Clutch Drive
6
Fork Lever
7
Bearing Pedestal
8
Seal
9
Seal Ring
10
Solenoid Switch
11
Epicycloidal Gear Train
12
Armature
13
Stator Frame
14
Brush Holder
15
Commutator End Shield
16
Shim
17
Retaining Washer
19
Closure Cap
18
Screw
20
Hexagon Screw
21
Cover Disc
22
Hexagon Nut
23
Dowel
