ENGINE
30

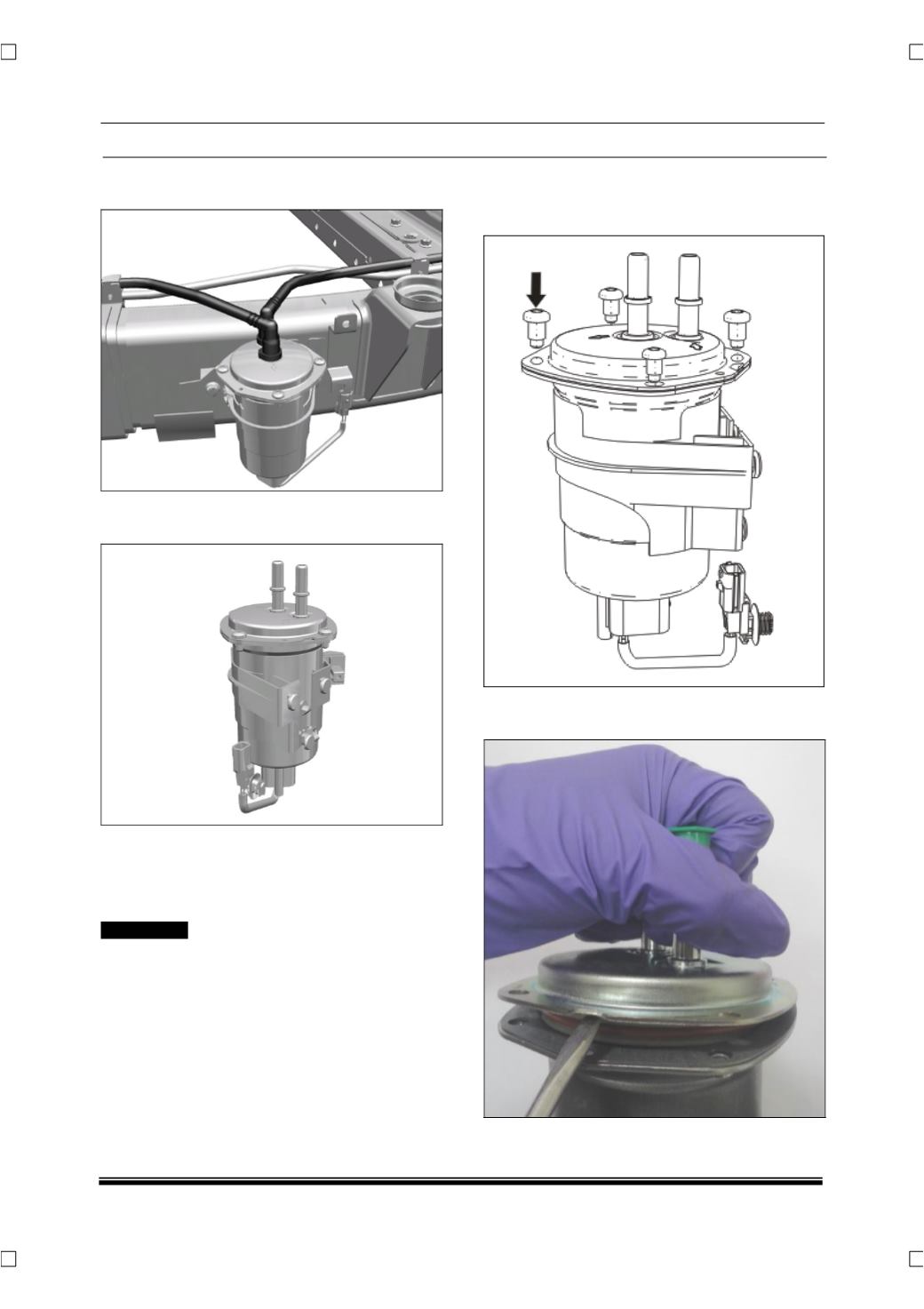

5. Disconnect the inlet and outlet fuels lines as indi-
cated in the figure below.
6. Press the vertical snap fit lug and push up the
sedimentor assembly.
NOTE
Fuel filter bottle & bracket can be separately re-
placed or the whole assembly fuel filter with bracket
can be replaced.
!!
WARNING
The sedimentor may still contain diesel in it, which
may get accidentally spilled onto the operator if it is
not handled properly.
FITMENT
•
For fitment follow the reverse order of removal.
•
Using hand priming pump refill the fuel lines.
G. PREFILTER CARTIRDGE REPLACEMENT
1. Hold the bottom of prefilter with one hand & Re-
move the 4 screw.
2. Lift the cover on the projection with flat screw
driver.
Note:
Ensure that screw driver is not causing any
damage to internal parts.
