253 / 1575
CLUTCH
8

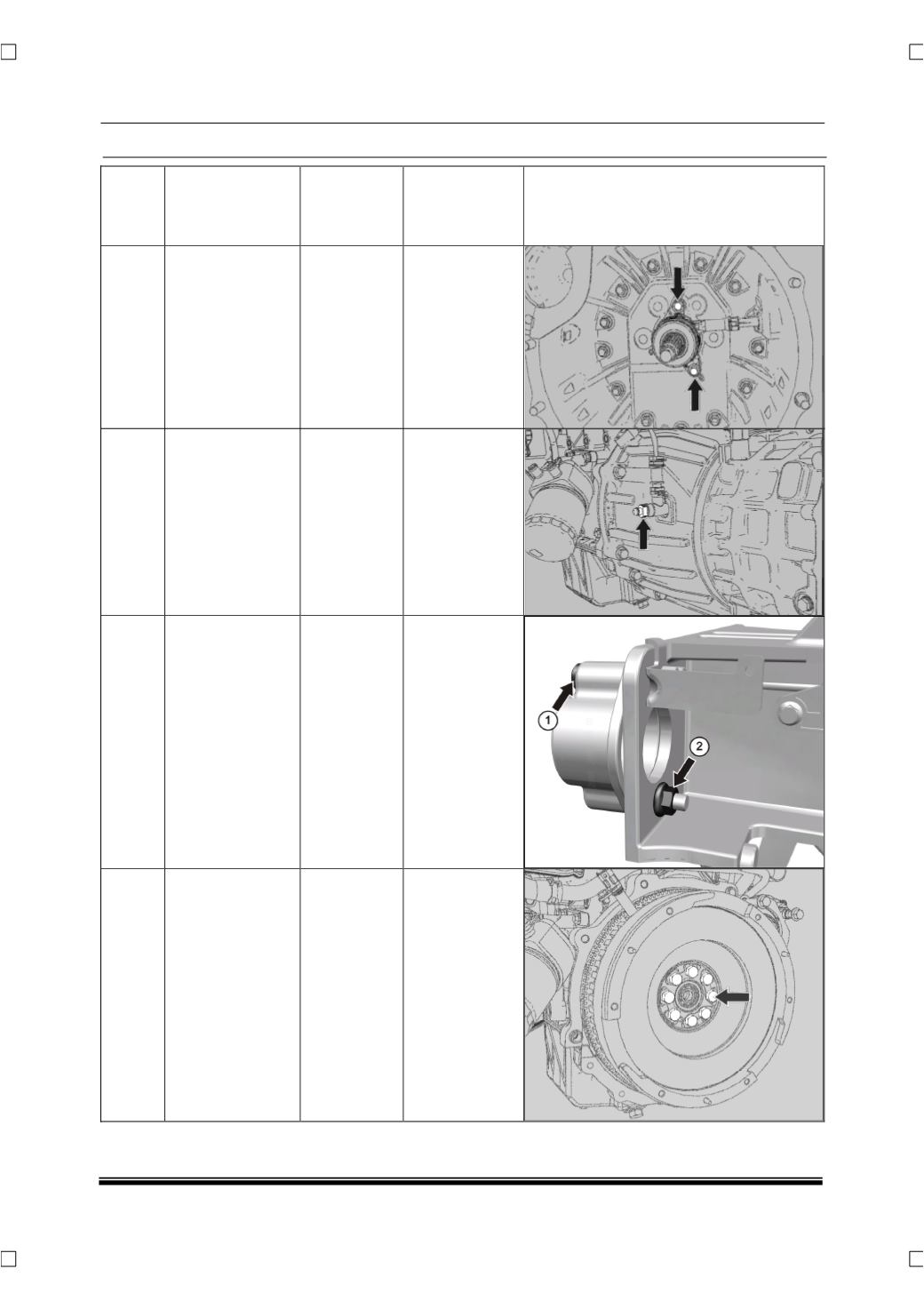

SR. NO. DESCRIPTION
FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
4
Mounting Screws
Concentric Slave
Cylinder to clutch
housing
Hex. FL Screw
M6X30
(2 Nos.)
(10.9)
a. Initially tighten
both the screws
to torque of 0.5.
b. Finally tighten
the screws to 1.2
± 0.18
5
Bleeding valve on
Hydraulic Adapter
–
Hand operated
ON/OFF knob
6
Allen screw (1) and
Mounting Nut (2)
CMC / Bayonet
Adapter to control
bracket
M8 X 50 (1)
AM8 (2)
2.5
7
Mounting Bolt
(Flywheel to crank
shaft)
Hex Bolt
M10 X 1
(8 Nos.)
(10.9)
a. Initially tighten
the bolt to torque
of 3.3 ± 0.3.
b. Finally tighten
the bolt by 55
o
±
5
o
angle
