ENGINE
176

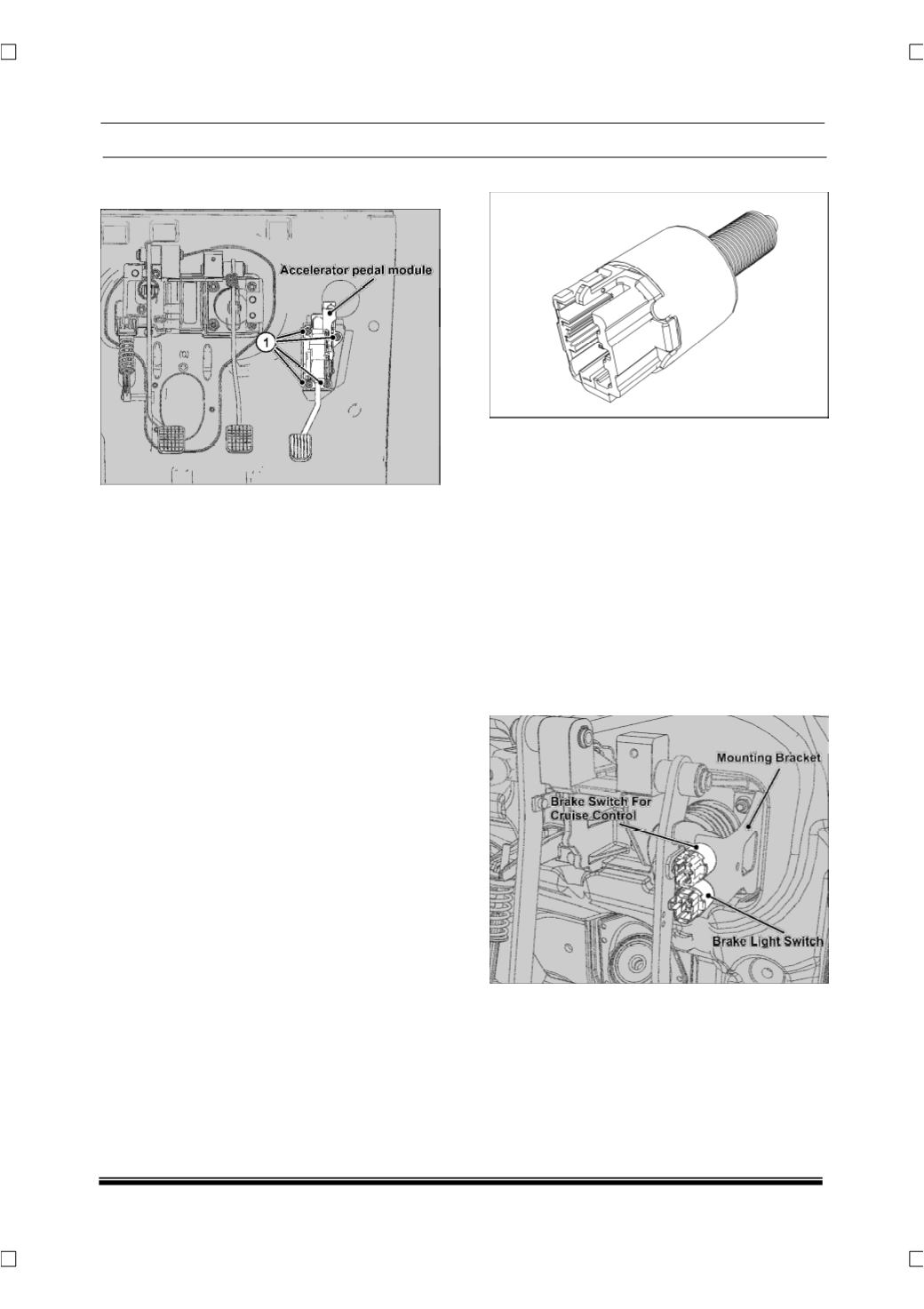

2. Loosen and remove the 4 mounting nuts (1)
and remove the accelerator pedal module.
INSPECTION
Check the resistance
•
1.7K ohm +/- 0.8 between terminals 1 & 5
•
1.2K ohm +/- 0.5 between terminals 2 & 3
REFITMENT
1. Locate accelerator pedal module and fit 4
mounting nuts.
2. Connect the accelerator pedal electrical con-
nector (1) to the accelerator pedal module.
12. BRAKE SWITCH
The brake pedal is fitted with two Brake switches,
which provide the information to ECU about the
brake pedal application.
•
Upper brake switch give signal to EMS ECU for
cruise control functionality.
•
Lower brake switch give signal to tail lamp&
ABS/ESP ECU.
NOTE
Brake switch for cruise control is fitted only if the
vehicle is having cruise control feature.
LOCATION
Brake switches are fitted on brake light switch
mounting bracket.
