EXPLODED VIEWS OF FRONT SUSPENSION

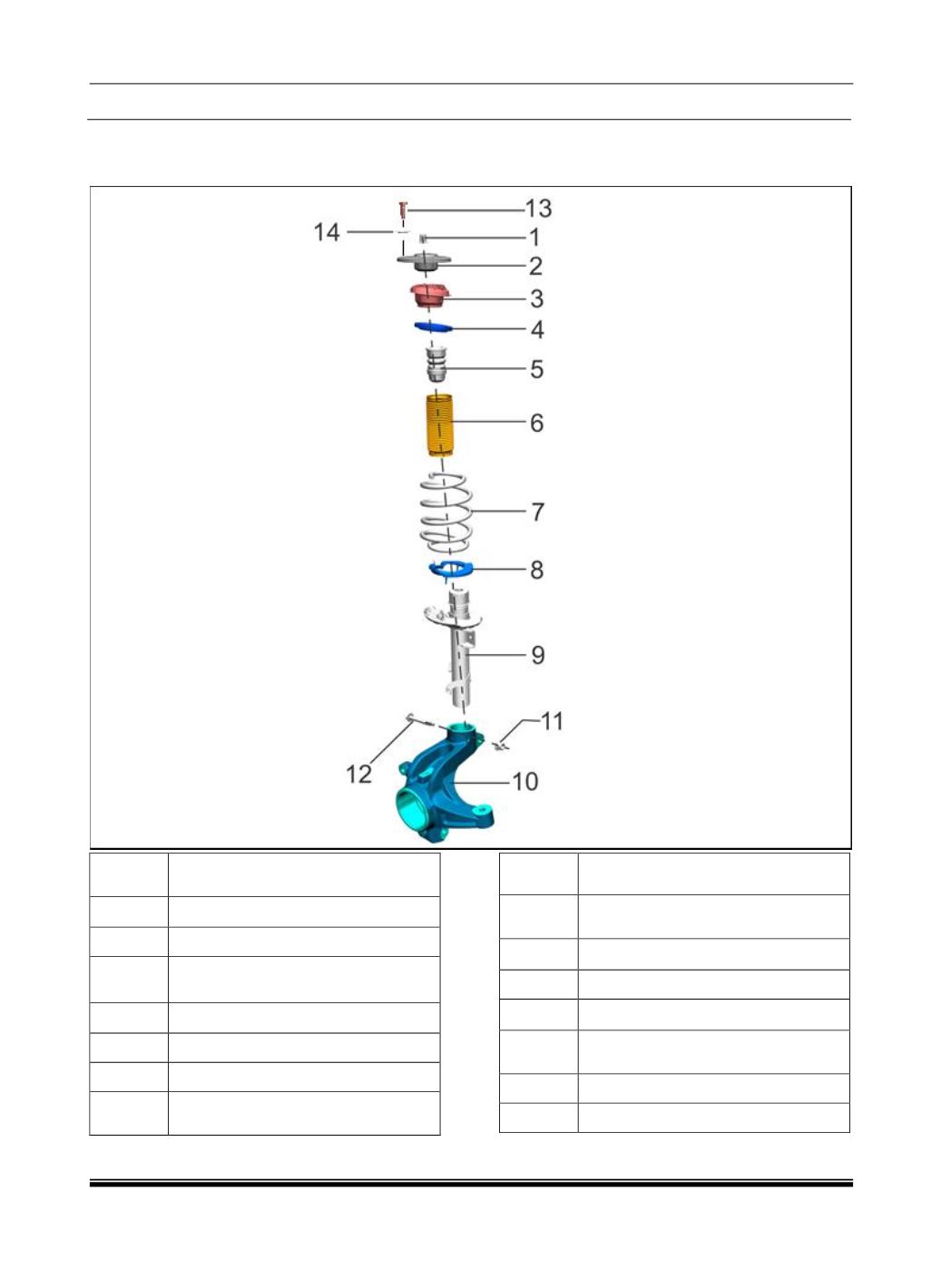

A) ASSEMBLY FRONT STRUT EXPLODED VIEW
SR NO.
DESCRIPTION
1
HEX NUT NYLOC M12X1.25-10
2
PLATE STRUT TOP
3
BEARING ASSY,TOP CUP FRONT
STRUT
4
SEAT FRONT SPRING TOP
5
BUMP STOPPER
6
DUST COVER
7
COIL
SPRING
FRONT
SUSPENSION
SR NO.
DESCRIPTION
8
RUBBER SEAT,FRONT STRUT
LOWER
9
DAMPER FRONT TUBE
10
STUB AXLE
11
HEX FL NYLOC NUT M12
12
HEX FLANGE BOLT,FRONT
STRUT MTG BOLT (M12X1.75)
13
BOLT,STRUT MTG TO BIW
14
WASHER
