367 / 745
SUSPENSION
5

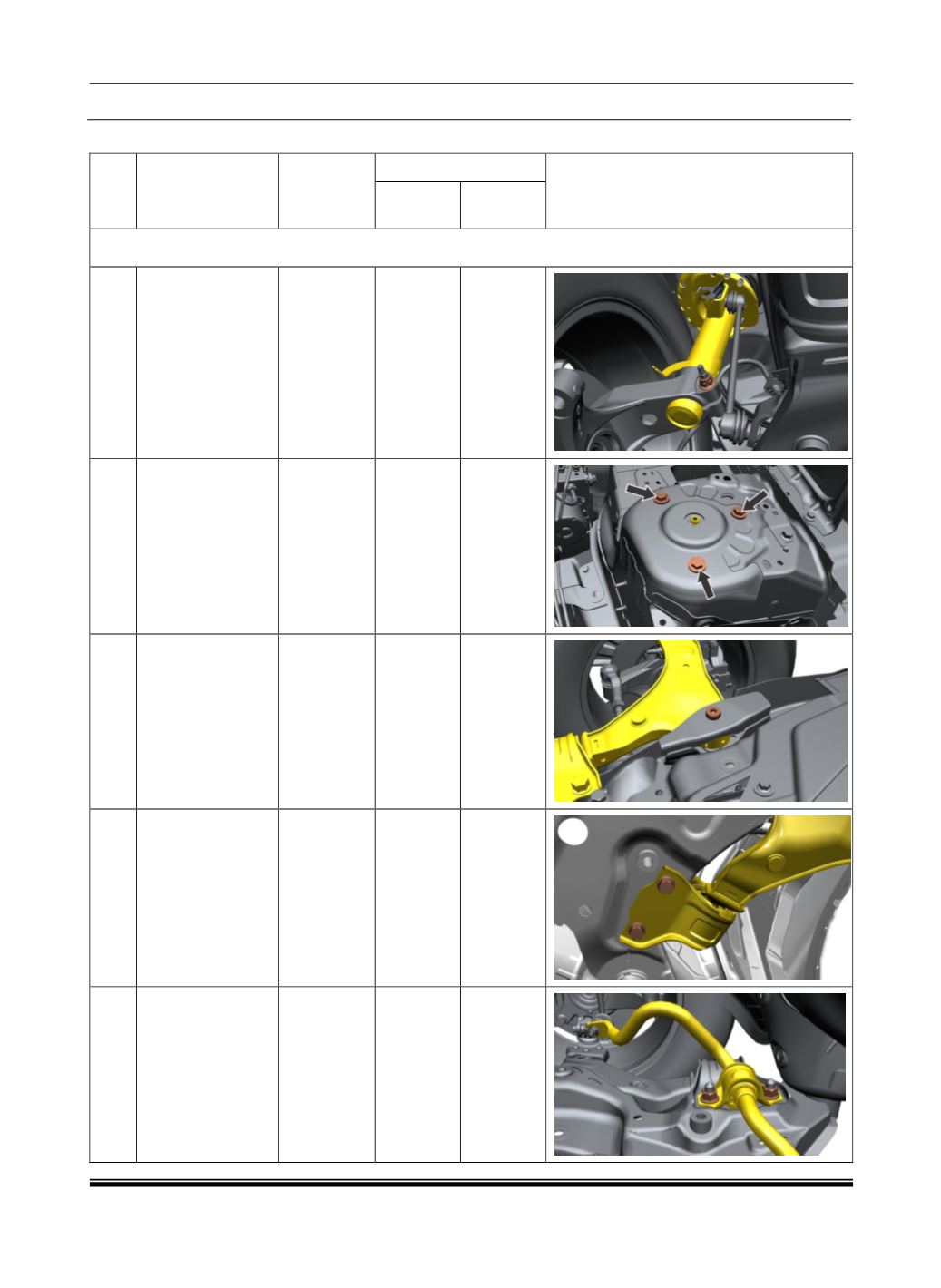

3. TIGHTENING TORQUES
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE (Kg-m)
LOCATION
SUNG
TORQUE
ANGLE
FRONT SUSPENSION
1.
Front strut
mounting on stub
axle
M12x1.75 11.2 ± 0.5
-
2.
Strut top
mounting to BIW
M8 X 1.25 3.3 ± 0.3
-
*3
*LCA Front pivot
bush to
Subframe
M14X2
14.3 ± 2
45°±5°
4
LCA Rear pivot
bush to
Subframe
M14X2
17.8 ± 0.5
-
5
Anti-roll bar
Clamp mounting
on Sub-frame
Assy
HEX
FLANGE
NYLOC
NUT
17.8 ± 0.5
-
