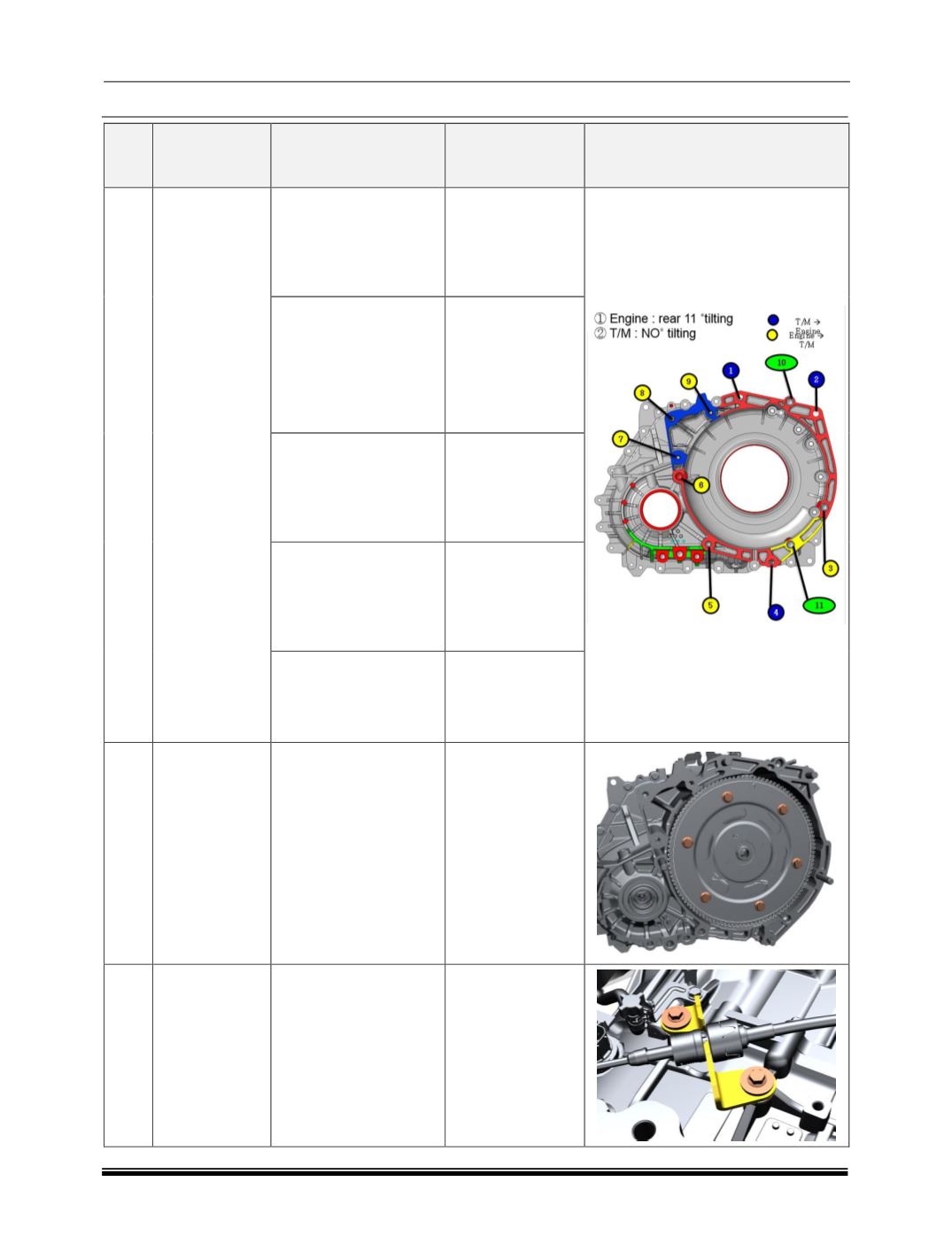

274 / 745
6F33 TRANSAXLE
6
SR.
NO
DESCRIPTION
FASTENER TYPE
TIGHTENING
TORQUE (Kgfm)
LOCATION
4
PT Mounting
Callout 1,2
Hex
Fl
bolt
M12X1.25X65
(From T/M to Engine)
4.9-7.3
Callout 3,6
Stud M12x1.25x84
H/FL NUT AM12X1.25
(Hex fl. nut to be from
Engine side)
4.9-7.3
Callout 4
Hex
Fl
bolt
M10X1.25X60
(From T/M to Engine)
3.7- 4.5
Callout 5
Hex
Fl
bolt
M10X1.25X60
(From Engine to T/M)
3.7- 4.5
Callout 7,8,9
Hex fl. screw M8x1.25
(Starter motor to T/M)
2.4-3.0
5
Bolts for Flex
plate & Torque
converter
FL SCR M10X1.25X14
(6 Nos)
3.7- 4.5
6
Cable
Anchoring
bracket. fixing
on Gearbox
HEX FL BOLT M8X25
(2 Nos)
2.2-2.8
