C635 TRANSAXLE
20

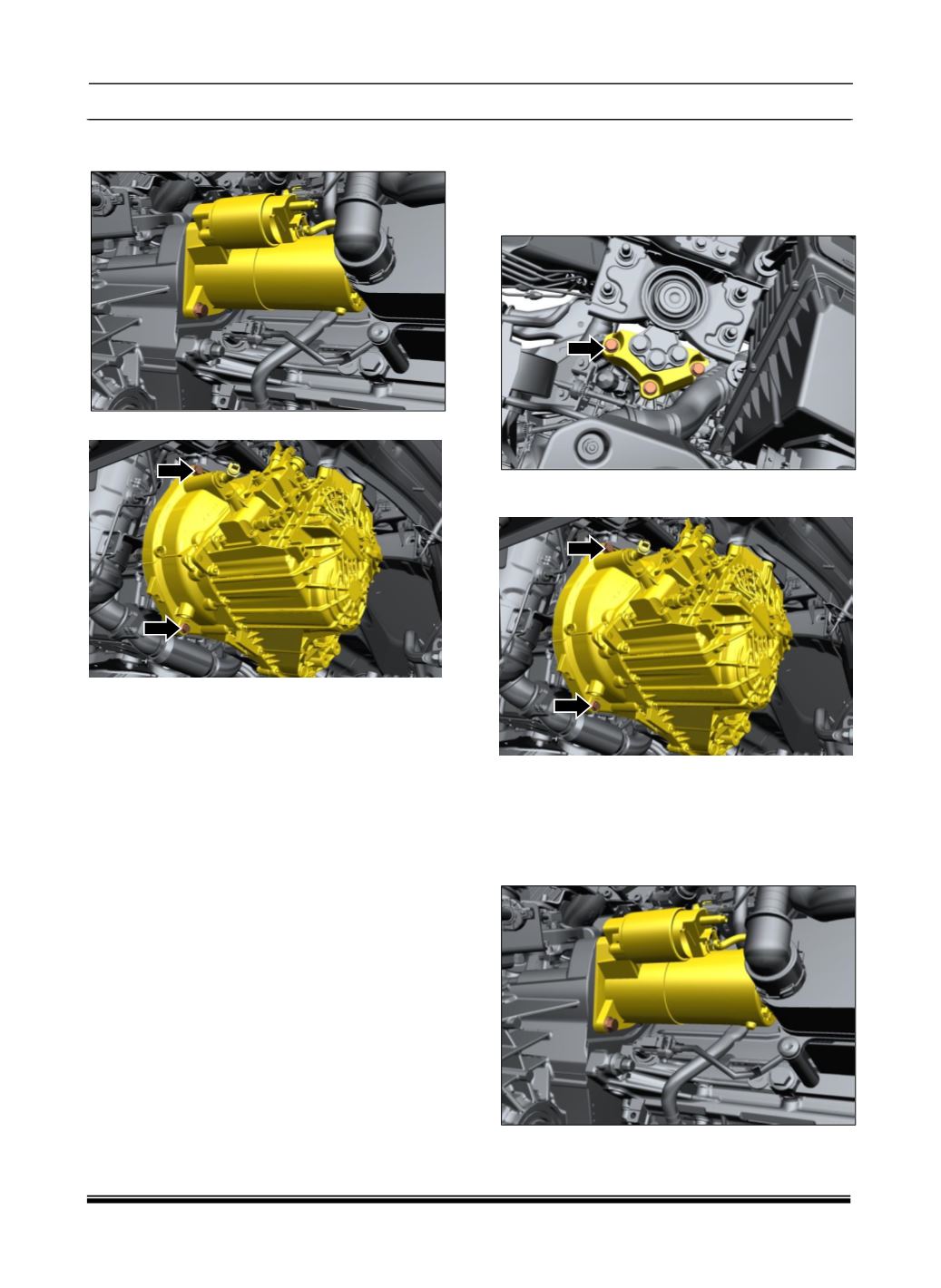

25.Remove the starter bolts and the bracket, and
then remove the starter.
26.Remove all transmission to engine mountings.
27.Lower Gear Box with help of transmission jack.
7. ASSEMLY OF TRANSAXLE ON VEHICLE
1. Place the transaxle in position under the vehicle
using a suitable transmission jack.
2. Tighten the hex flange bolt on B mount of
Transaxle.
3. Align the transmission to the engine and tighten
the bolt to the proper Torque Specifications.
4. Remove the transmission jack.
5. Position the starter with NEW gasket and
bracket in position, hold in place with top starter
bolt.
6. Install and tighten the starter bolts to the proper
(Torque Specifications).
