CLOCK SPRING ALIGNMENT PROCEDURE
! CAUTION
If this alignment is not done the clock spring may
get severely damage.
•
Rotate the clock spring rotor in clockwise
direction till it reaches the maximum limit of
rotation.
•
Turn the clock spring in anticlockwise direction
for 2.5 rotations from this extreme position.
This will be the straight ahead position of the
clock spring.
•

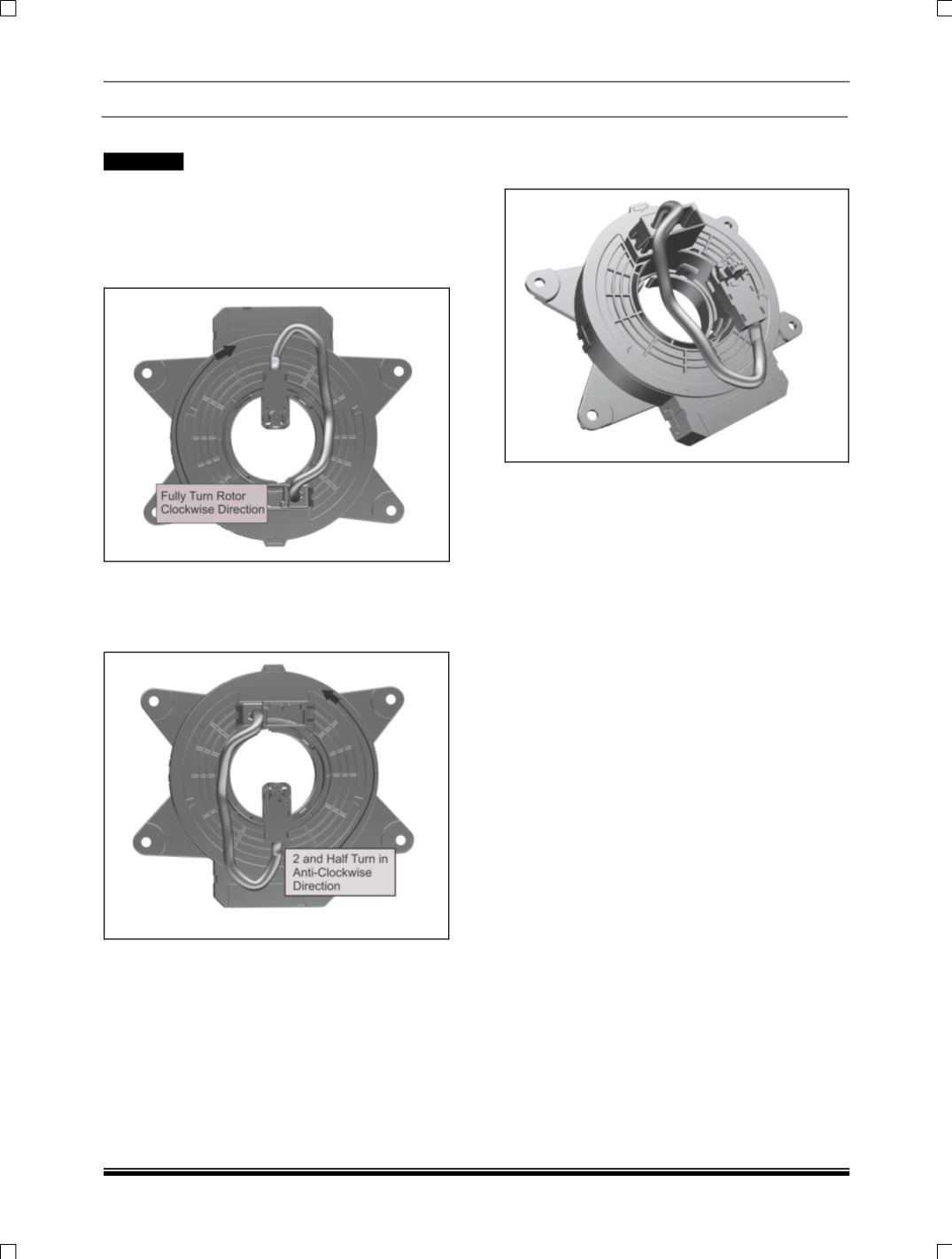

The straight ahead position of the clock spring
can be confirmed by arranging two arrows in
front of each other as shown in figure
•
Assemble the clock spring in this position.
