TroubleShooting:-
Flow Diagram or table format for diagnosing the fault code
Step no
.
Description
Check Point
if YES
if NO
1
Remove the 12V LV battery negative
terminal.
After a minute connect the 12V LV battery
negative terminal & "Ignition Switch" to ON
position.
Crank and wait for 2 minutes.
Check for the fault code.
Fault code
P130026 is
present?
Go to step 2
Repair
complete.
2
Check the DCDC Converter Output Under
voltage DTC
Fault code
P130027 is
present?
Go to P130027 DTC
document and follow
the procedure and check
for P130026 DTC again
Replace
DCDC
Converter
DTC
’
s
confirmation:-
After rectification, ensure the following points by referring DCDC parameters using TML diagnostic tool before handing over to
customer.
a) DCDC converter charging LV battery in the range of 8V to 16V

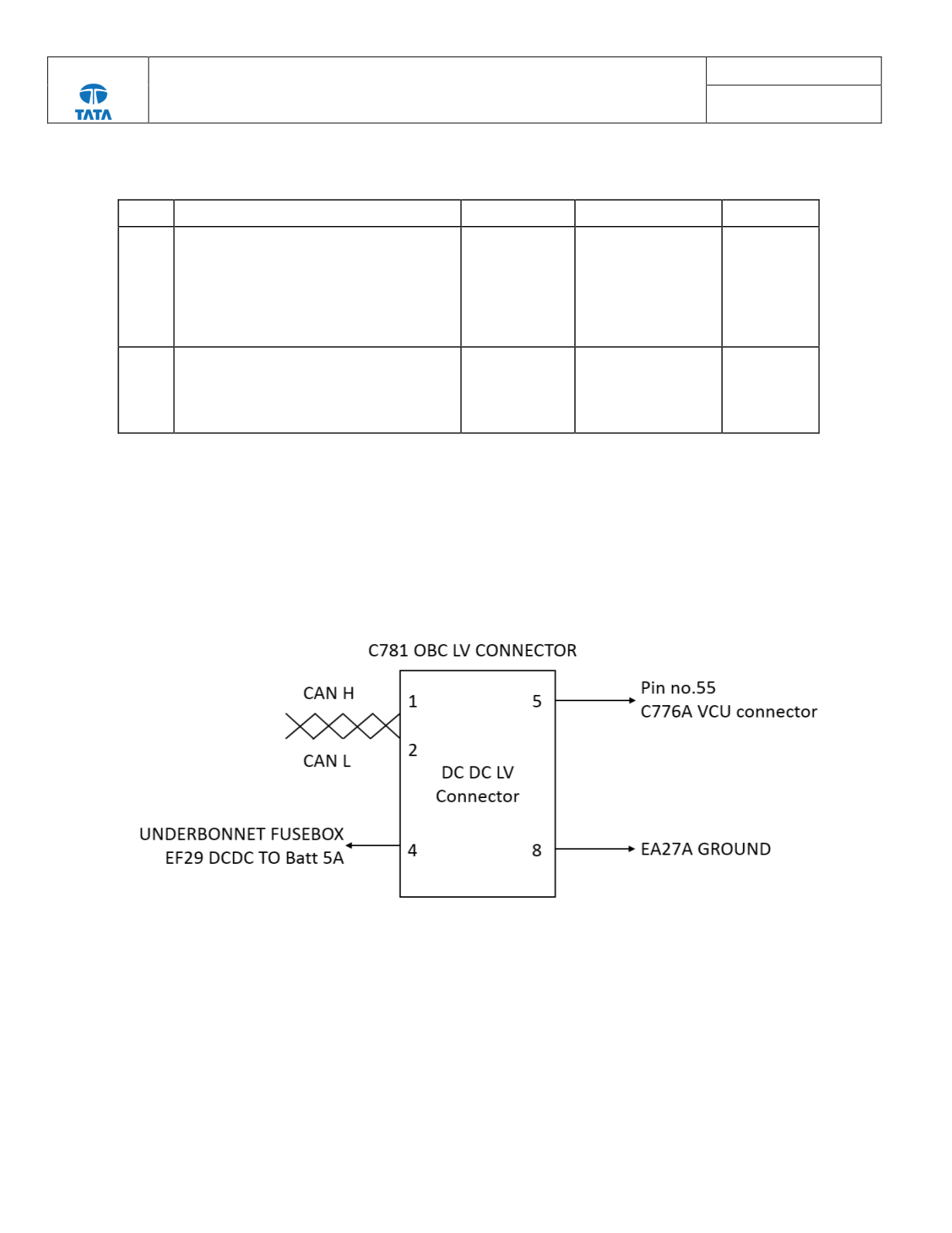

Schematic Block Diagram:-
