HV ELECTRICAL SYSTEM
48

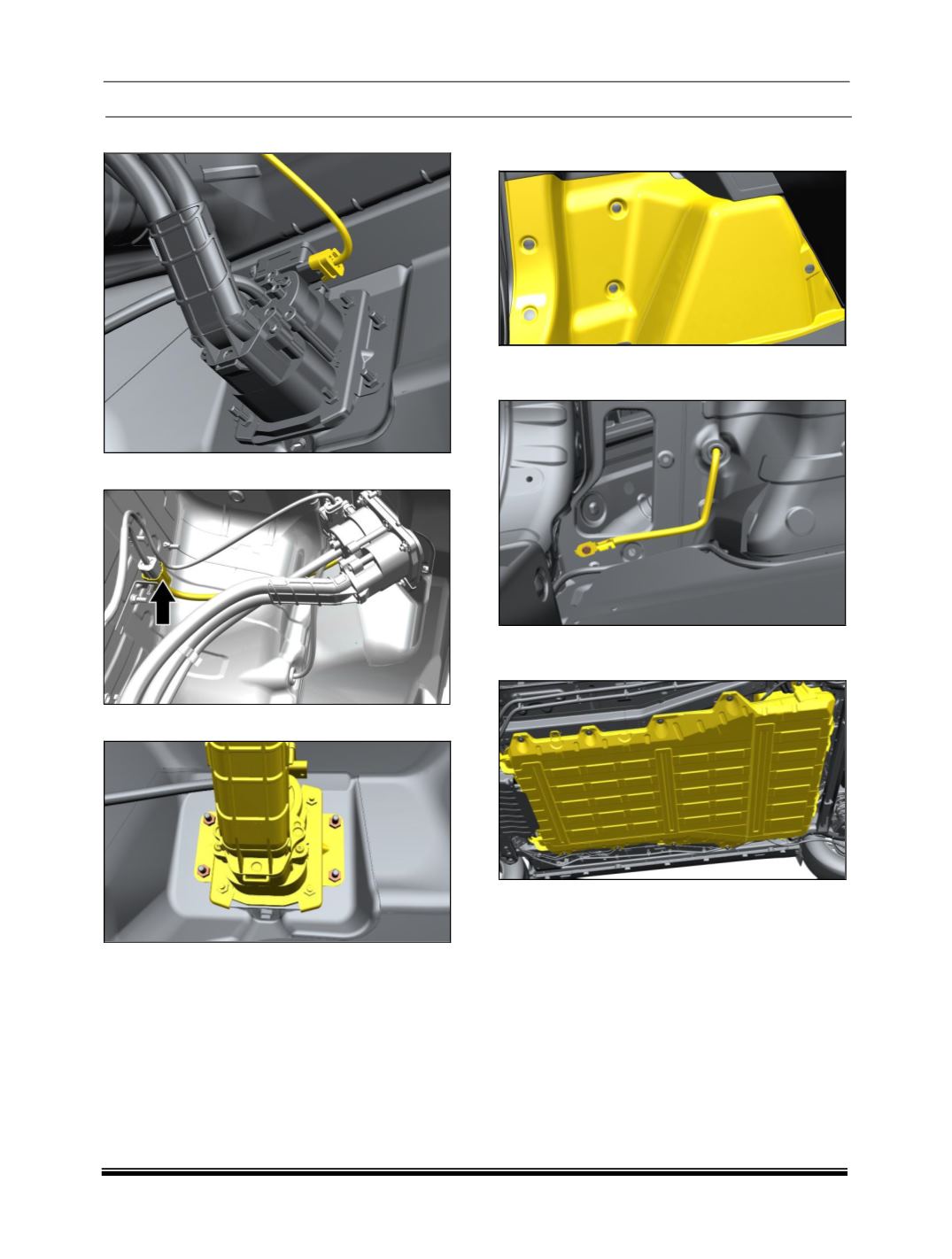

5. Disconnect the electrical wiring harness.
6. Remove LV connection on charging port.
7. Remove the mounting nuts of flue cap.
8. Open tail gate
9. Remove tail gate trim
(refer removal from body
section)
10. Loosen and Remove the ground terminal cable
screw.
11. Remove HV Battery
(refer HV Battery removal
from section).
12. Remove electrical connection and take out the
HV charger cable.
Fitment
Follow reverse procedure for assembly.
