HV ELECTRICAL SYSTEM
40

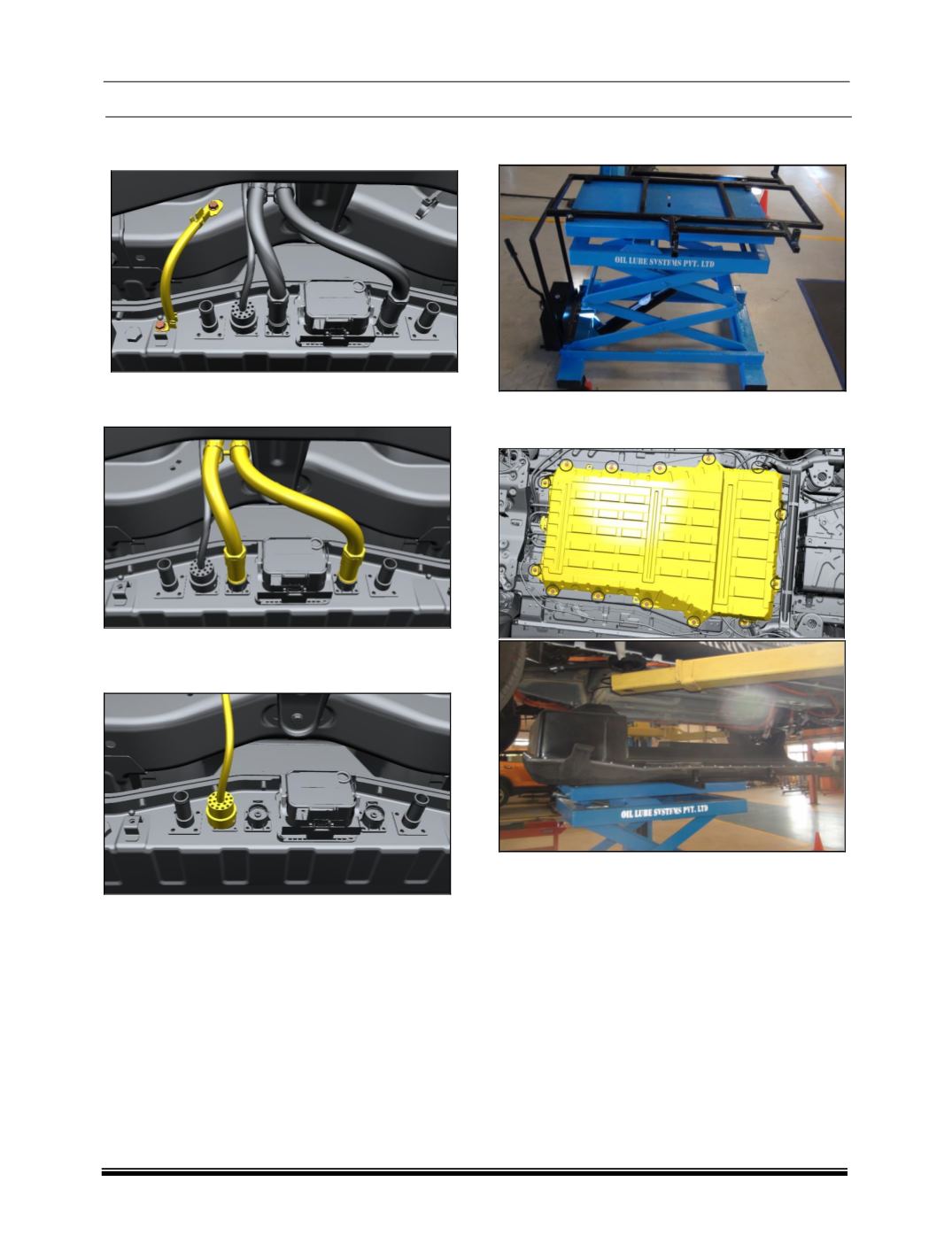

3. Remove the connector and chassis ground
cable connected to HV battery assembly.
4. Disconnect the connector cable of PDU to
Battery.
5. Disconnect and Remove the connector and
powertrain harness connected to HV battery
assembly
NOTE
Use special tool to keep HV battery.
6. Loosen and Remove the mounting screws of
HV battery assembly safely take out
(use
Special tool).
Fitment
Follow reverse procedure for assembly.
