BODY
11

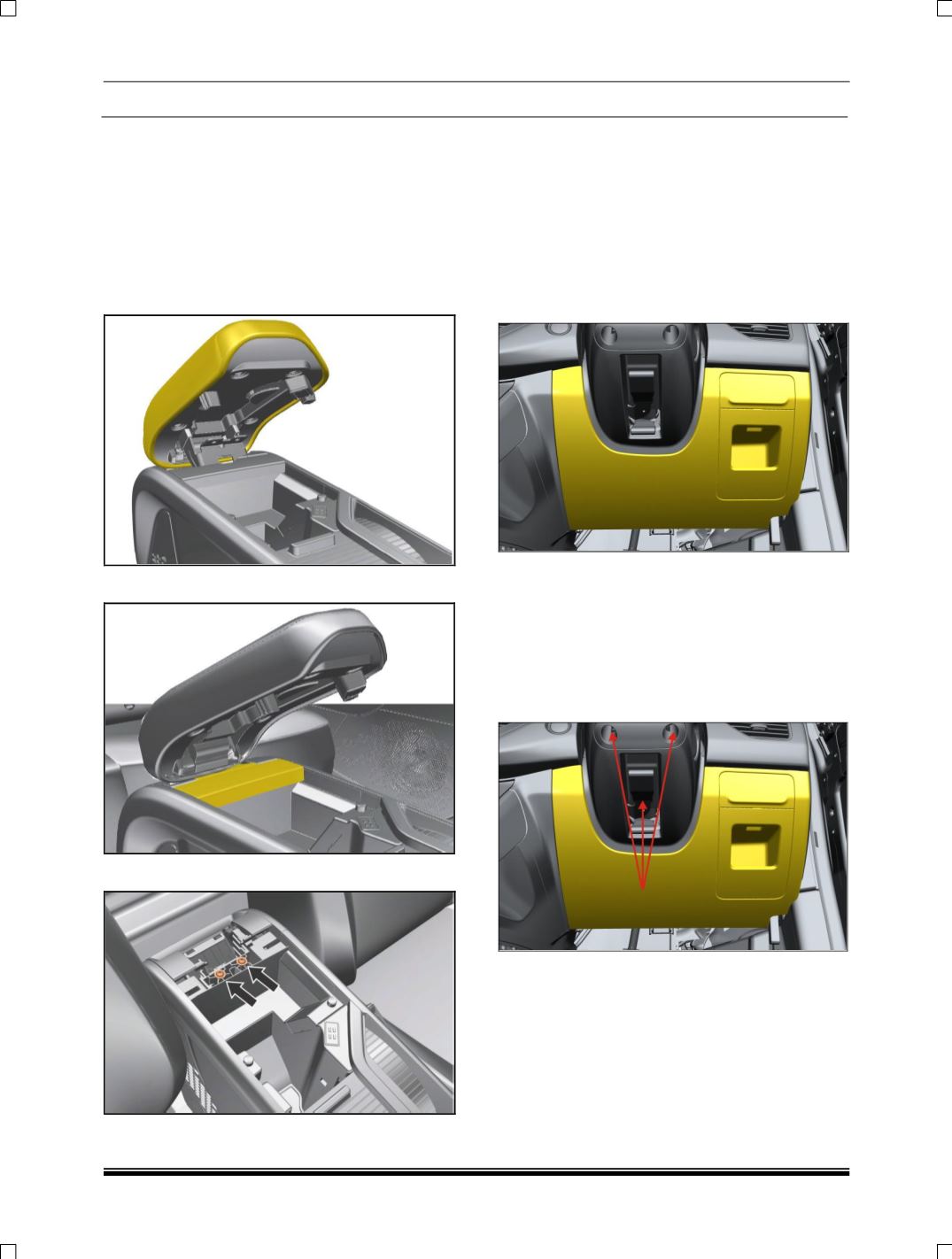

ARM REST REMOVAL
NOTE
For ease of removal and fitment the hand brake
cable can be loosened from the rear end. (For the
hand brake adjustment, refer brake section.)
1. Remove the gear lever boot.
(For procedure
refer the gear lever boot removal process.)
2. Pull the Armrest up ward direction.
3. Remove Console Hinge cover.
4. Remove rear screw of central floor console.
4.3. DASHBOARD SKIN (Top Panel Assembly
including duct assembly, PAB Chute, Air
Vent assembly etc.)
REMOVAL
1. Remove steering wheel with Driver air bag (if
applicable) (For procedure refer steering wheel
removal process in steering section.)
2. Remove End Cap RH. Pull out Driver lower
panel.
3. Remove nacelle Assembly. Nacelle Upper
assembly detached from Nacelle Lower &
Cluster Cover (Gap Hider which is a part of
Nacelle Upper is attached to Cluster Cover by
rib locks) (For removal refer steering column
removal process in steering section)
4. Remove Nacelle Lower (by removing three
screws with steering column)
5. Remove combination switch assembly and
ignition switch assembly (For procedure refers
combination switch and ignition switch removal
process in Electrical section)
