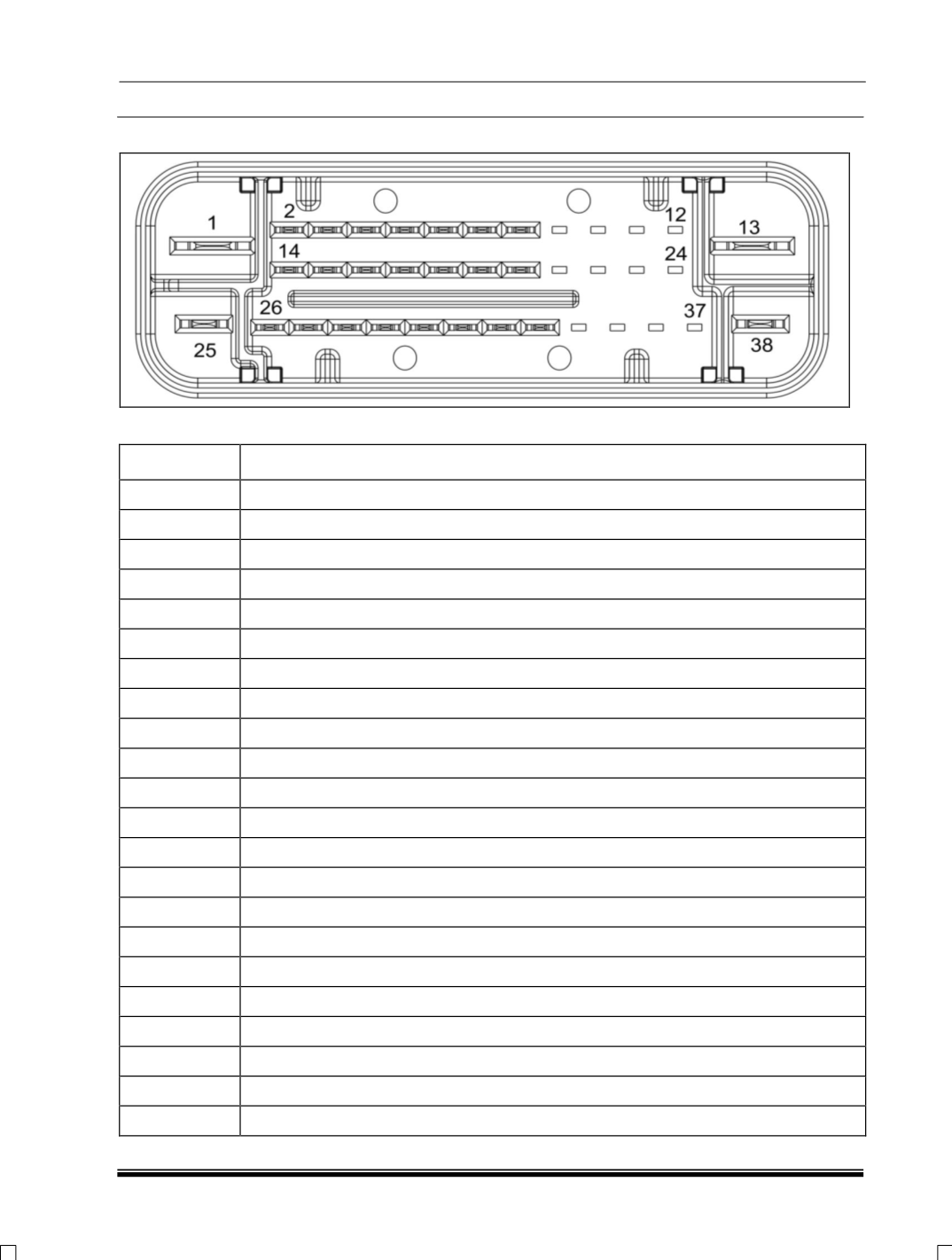

16. ABS ECU CONNECTOR (K2):
ECU PIN DETAILS:
PIN NO.
DESCRIPTION
1
Power Supply to ABS / ESP Pump Motor Relay
2
Vehicle Speed Output
3
EBD Warning Lamp
4
Wheel Speed Sensor Signal Front Right
5
ABS Warning Lamp
7
Not Used
8
Wheel Speed Sensor Signal Front Right
13
Ground to ABS / ESP Motor Pump Relay
14
CAN Low Signal
15
Not Used
16
Wheel Speed Sensor Power Front Right
17
Wheel Speed Sensor Power Rear Right
18
Wheel Speed Sensor Power Rear Left
19
Wheel Speed Sensor Power Front Left
25
Power Supply to ABS ESP Valve Relay
26
CAN High Signal
27
Not Used
28
Ignition Power Supply to ECU
29
Wheel Speed Sensor Signal Rear Right
30
Brake Light Switch Signal
31
Wheel Speed Sensor Signal Rear Left
38
Ground to ABS / ESP ECU
