HV ELECTRICAL SYSTEM
30

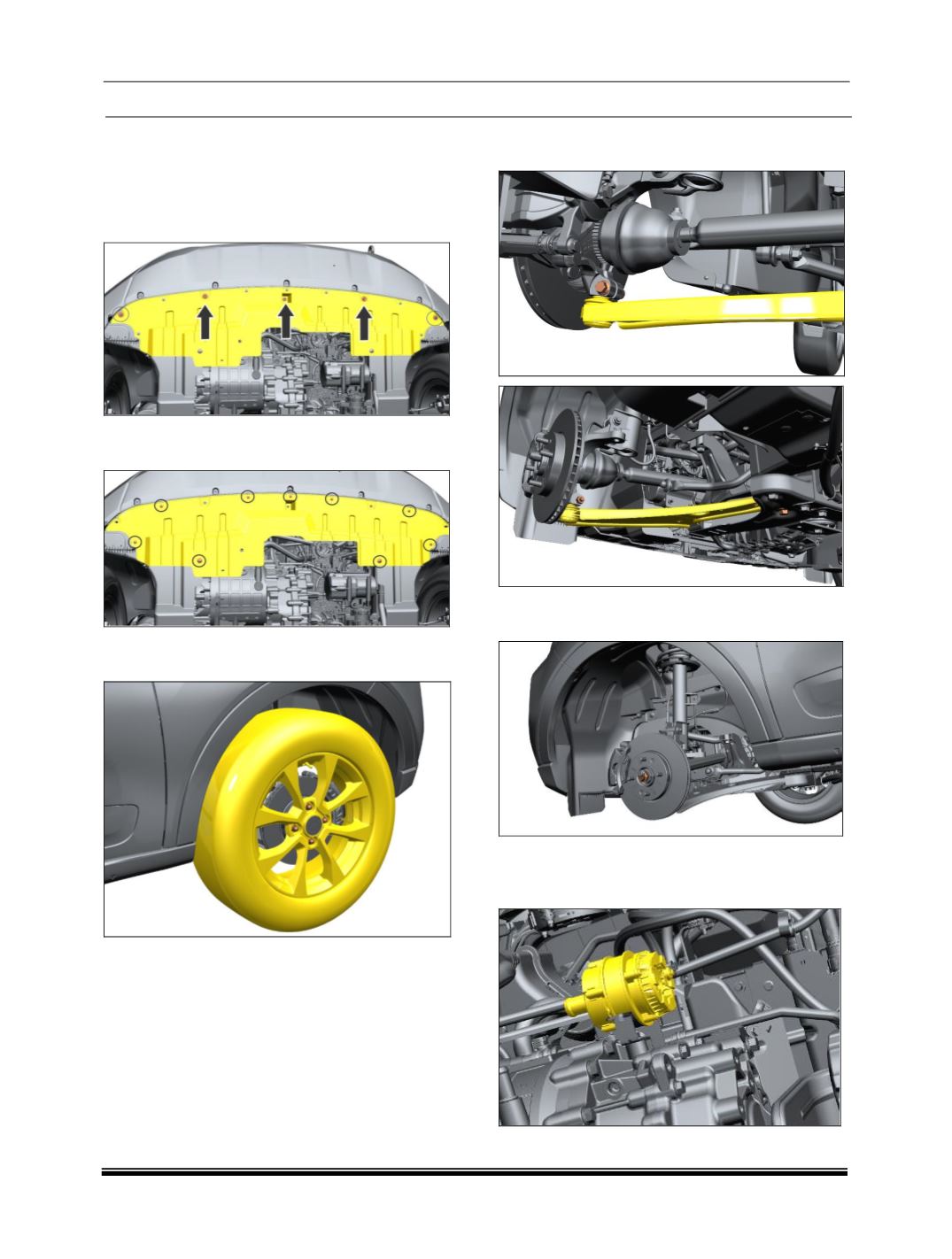

E. E-DRIVE REMOVAL
1. Refer Instructions for working on HV
Components mention before starting work.
2. Loosen and Remove the mounting screws &
nut of splashguard.
3. Loosen and Remove the mounting screws &
nut of splashguard.
4. Loosen and remove the mounting nut of tyre &
take out (LH / RH side )
5. Loosen and remove the boll joint bolt of lower
arm to axle both LH & RH side.
6. Apply brake and remove drive shaft lock nut on
both LH and RH side.
7. Drain the coolant and Remove the pump
(Refer coolant pump section for removal
process).
