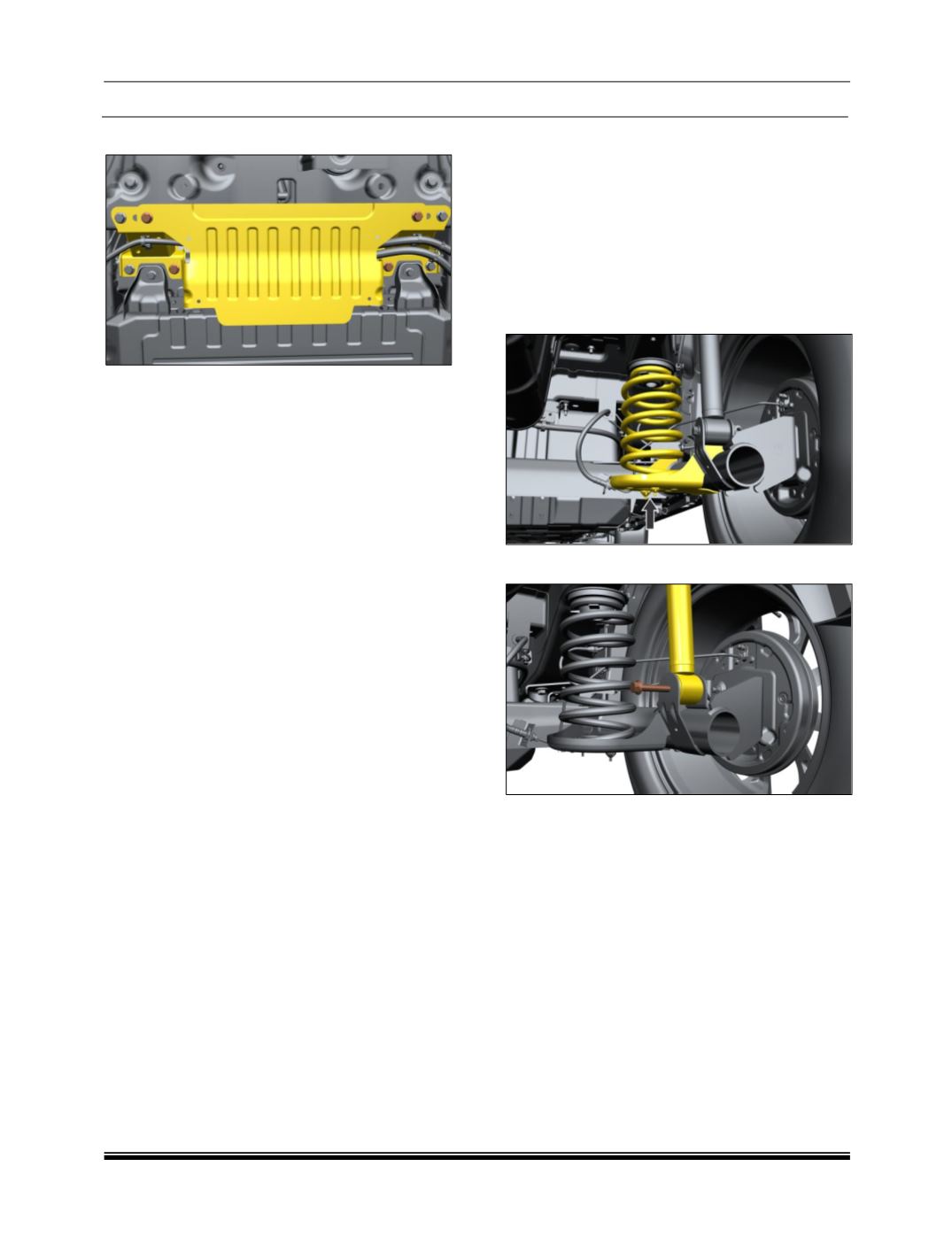

9. Fix underbody battery connection guard.
10.Connect the EPAS for the rack assembly.
11.Fit the tie rod ball joint of steering rack to the
knuckle.
12.Fix the lower arm to the knuckle.
13.Fix the other attachments like 'C' mount and
stab link.
14.Install exhaust Front Pipe Assy
.
E. REAR SHOCK ABSORBER AND COIL
SPRINGS
I. REMOVAL OF REAR SHOCK ABSORBER
AND COIL SPRINGS
1) Lift the car using two-post lift.
2) Remove Rear Wheel.
3) Position the hydraulic jack below the coil
spring pad of torsion beam in such a way that
it slightly compresses the spring.
4) Loosen rear Shock Absorber bottom fastener
5) Similarly carry out the above steps for the
other side.
6) Remove both the shock absorber fasteners
holding the torsion beam using hydraulic jack
at any one side.
7) Now slowly release and hold the hydraulic jack
pressure so that both the coil springs along
with top rubber can be pulled out.
CAUTION:
Do not lower the torsion beam below
certain level as the brake hoses will be damaged.
