250 / 516
SUSPENSION
23

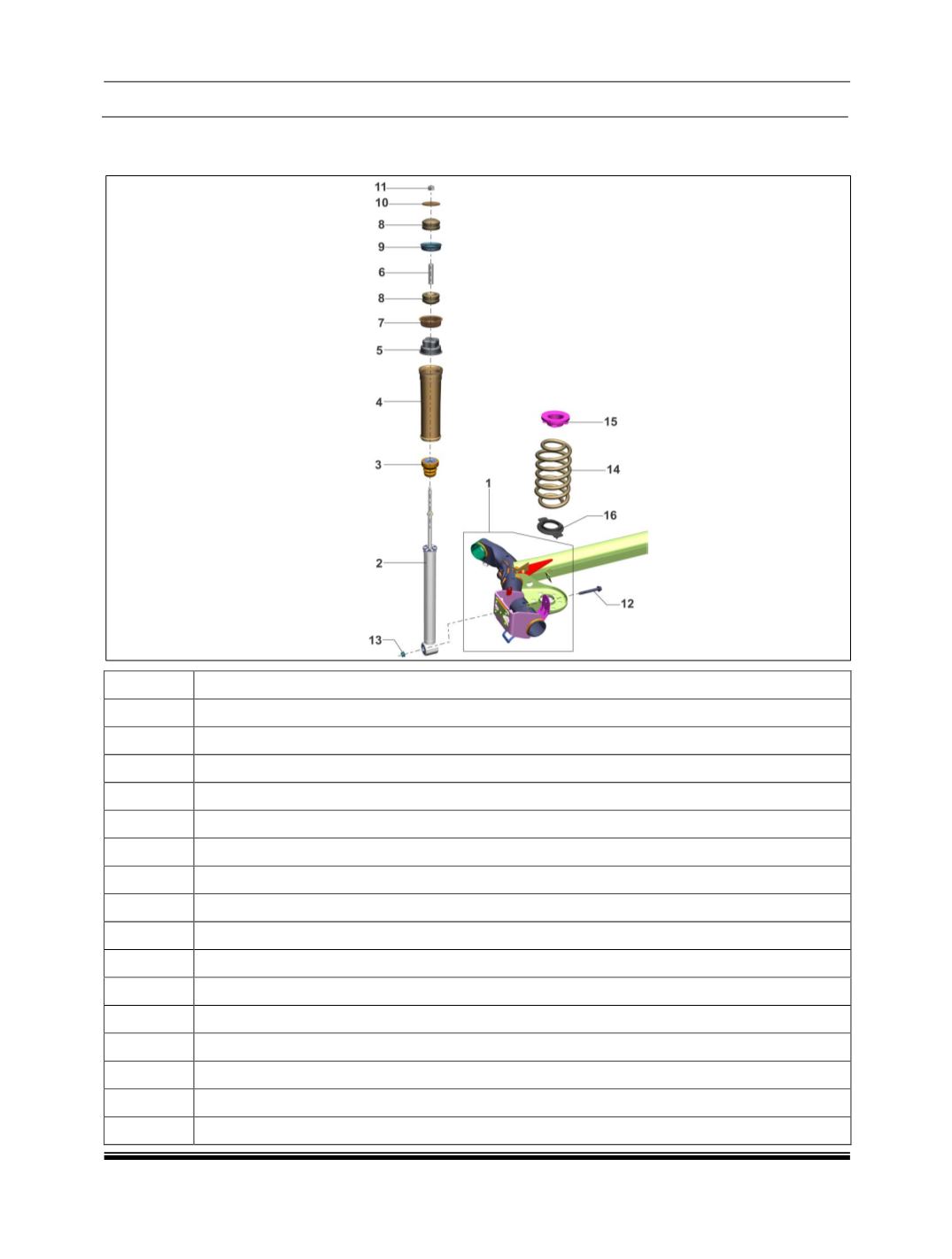

8. EXPLODED VIEWS REAR SUSPENSION
A) REAR SHOCK ABSORBER AND SPRING
SR. NO.
DESCRIPTION
01
ASSY TWIST BEAM WELDED STRUCTURE
02
ASSY DAMPER REAR SUSPENSION
03
BUMP STOPPER REAR SUSPENSION
04
DUST COVER REAR SHOCK ABSORBER
05
TOP CAP
06
SLEEVE REAR SHOCK ABSORBER
07
CUP REAR SHOCK ABSORBER
08
TOP RUBBER REAR SHOCK ABSORBER
09
CUP REAR SUSPENSION TOWER
10
WASHER REAR SHOCK ABSORBER
11
NYLOC NUT M10
12
HEX FL BOLT
13
HEX FL NUT AM10X1.25
14
SPRING REAR SUSPENSION
15
SPRING SEAT TOP RUBBER REAR SUSPENSION
16
SPRING SEAT BOTTOM RUBBER (REAR SUSPENSION)
