C. FUSE AND RELAY BOX LAYOUT

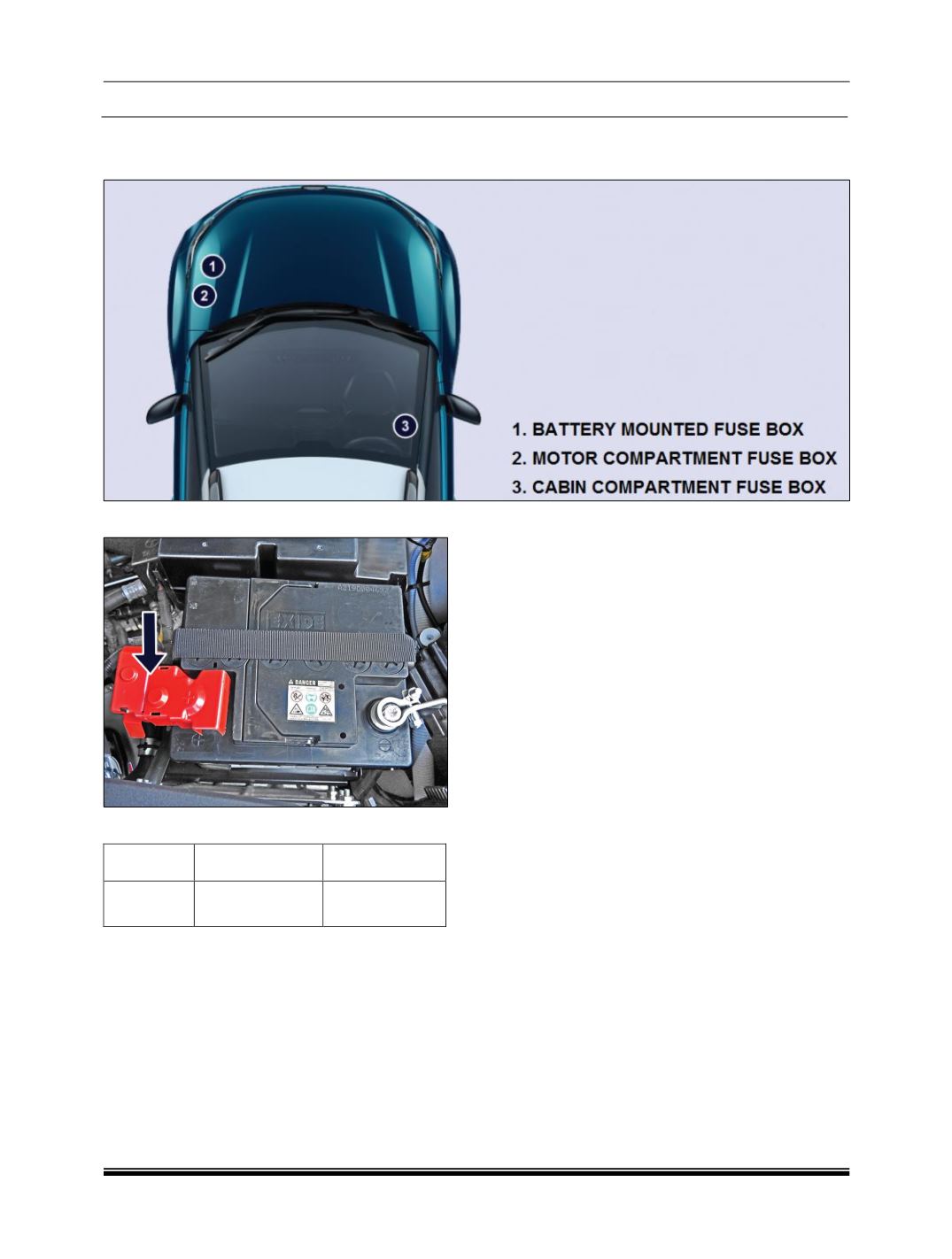

This fuse boxes are located at 3 location as shown.
21.1 BATTERY MOUNTED FUSE BOX (
BDU
)
FUSE DETAIL
FUSE NO. FUNCTION
FUSE RATING
F01
DC – DC
Converter
200A
NOTE
The battery mounted fuse is not re-placeable. If
F01 fuse blows, the 12V battery +ve cable along
with fuse has to be replaced.
WARNING
•
If Fuse box cover is removed for any reason, it
should be refitted properly at its original
position.
•
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with higher
amperage, the electric cables could be
overloaded. This could result in a fire. There is
a risk of an accident and injury. Always re-
place faulty fuses with the specified new fuses
having the correct amperage.
