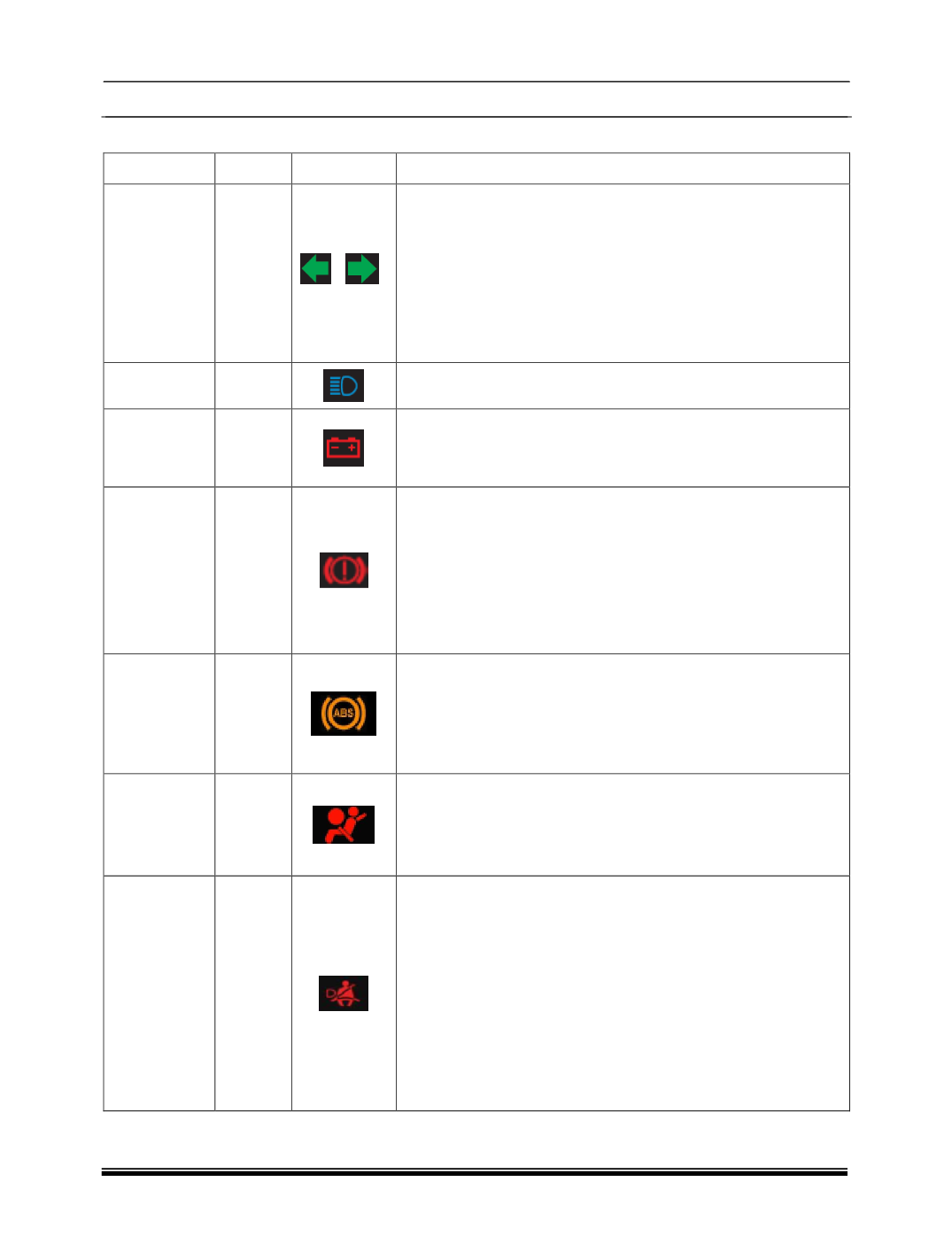

18.2 TELL TALES INFORMATION
TELL TALES COLOR INDICATOR
REMARKS
Turn Signal
Green
One of these symbols comes ‘ON’ when the turn indicators is
switched ‘ON’.
By using the turn indicator switch on the combi-switch, Turn
signal lamps can be operated when the ignition supply is ‘ON’.
The direction indicator arrow on the instrument cluster flashes
along with external indicator lights as selected.
Both telltales will blink simultaneously when Hazard switch is
pressed irrespective of Ignition ON and Tick-Tock sound will be
given when any one or both the telltales are ON
High Beam
Blue
This symbol comes ‘ON’ when the headlamp high beam is
switched ‘ON’ and High beam flashed.
LV Battery
charge
Red
This symbol provides LV (Low voltage) battery charging status
to user. Telltale get display when Auxillary Battery charging
fault occurs to indicate the user that problem with LV battery
and to contact service center.
Park Brake
/Brake Fluid
low/
EBD
Malfunction.
Red
This indicator comes ‘ON’ for approximately 4 seconds when
Ignition is turned 'ON' and goes ‘OFF’. If it remains ‘ON’, it may
indicate:
1. Brake fluid level is low.
2. Parking brake is applied. It shall go ‘OFF’ when it is
released.
3. Fault in EBD (Electronic Brake force distribution)
system
ABS
Indicator
Amber
When ignition is turned ‘ON’, this symbol comes ‘ON’ for 4
seconds and goes ‘OFF’.
This symbol continue to remain 'ON' if there is a problem in
the ABS system.
NOTE:
If the warning is continuously ON Take your Car to
Tata authorized service center.
Airbag
Indicator
Red
The air bag warning symbol comes on for approximately 4
seconds when the ignition is turned ‘ON’ and goes ‘OFF’.
NOTE:
If the warning remains ‘ON’ or blinks, take your car to the
TATA authorized Service center.
Driver Seat
belt Indicator
Red
Seat belt warning indicator comes ‘ON’ for 4 seconds, when
ignition is turned ‘ON’ irrespective of seat belt buckle status.
If seat belt is not fastened then Telltale will be ON as initial
warning with No audio warning i.e. chime. If seat belt remains
unbuckled and vehicle speed goes above 15 kmph, Final
Warning will start with audio chime for 90 seconds
continuously.
Note:
•
Once the seat belt is fastened, the buzzer and warning
indicator will go ‘OFF’.
•
Seat belt audio alarm remains OFF when reverse gear is
engaged.
