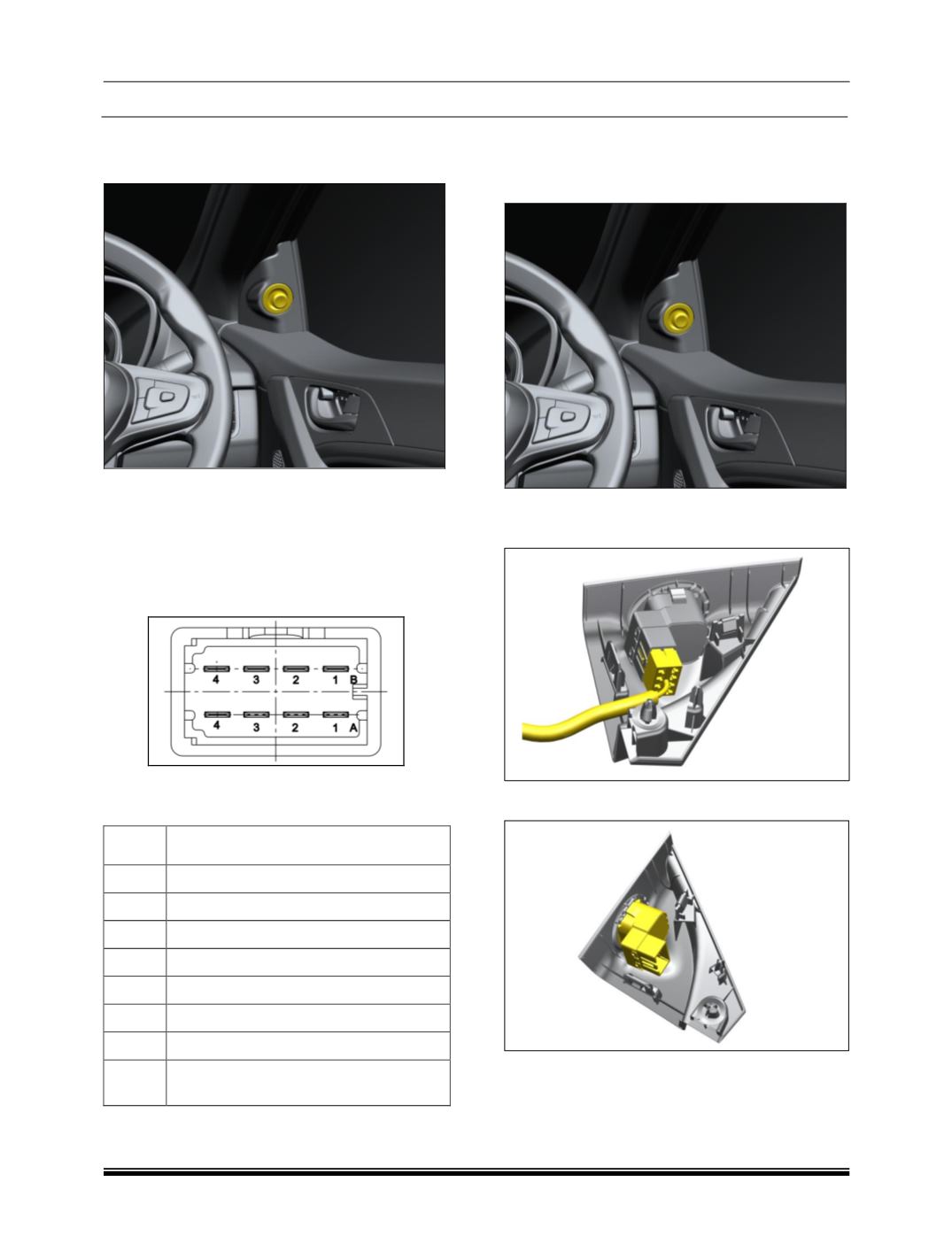

10.MIRROR SWITCH
For High Version
Mirror fold/Unfold (If applicable)-
Knob need to be in center. It should not be at left
& right mirror selection.
Pull Knob down for Mirror folding & again for
mirror unfolding.
A. PINOUT DETAILS
NOTE:
Some features may not applicable for
NEXON EV mention in pin details).
PIN
DESCRIPTION
1A
2A
ACC
3A
1B
2B
3B
GND
4B
4A
BCM INPUT (Applicable for mirror fold
only)
B. REMOVAL (High Version)
1.Pry out the Mirror adjustment switch cover from
cheater assembly.
2.Disconnect the electrical connection of mirror
adjustment switch.
3.Take out the mirror adjustment switch
.
