LV ELECTRICAL SYSTEM
38
C. COMBI
STALK
REPLACEMENT
PROCEDURE
1. Remove the combi switch from vehicle. Refer
removal & refitment of steering nacelle from
steering section.
2. Disconnect combi switch connection.

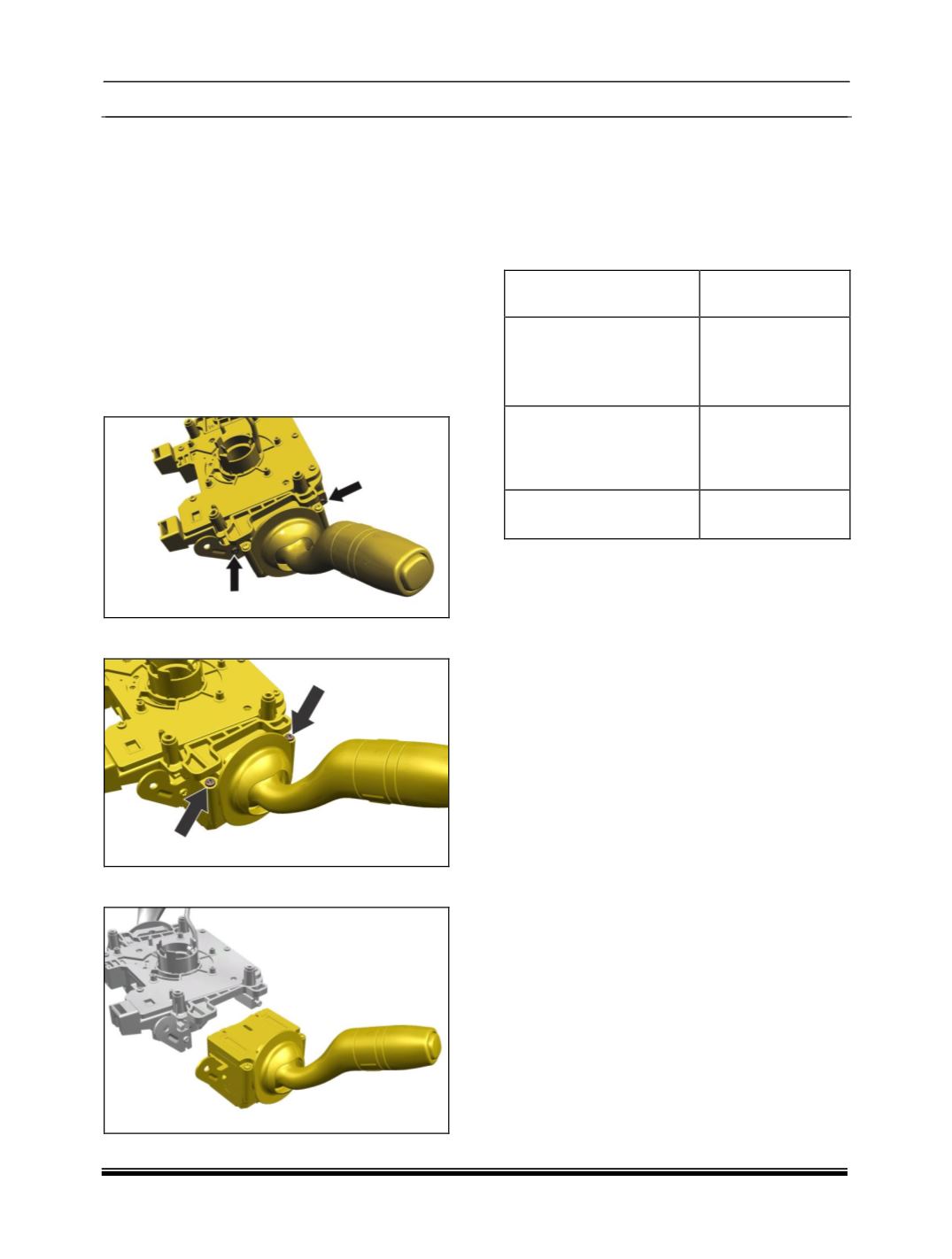

3. Remove the two mounting screw of the stalks
as shown below
4. As shown, Two screws are dismantled to remove
light stalk. Same two screws on wiper side to be
removed to dismantle wiper stalk
a. For Daesung make combi switch
b. For MRPL make combi switch
5. Remove the stalk
INSTALLATION
1. Fit the new stalk.
2. Tight the mounting screws of stalk.
3. Fit the combi switch.
Torque value Table
Component
Tightening torque
value
Light / Wiper Stalk
tightening torque in
Daesung make Combi
Switch
0.3 to 0.4 Nm
Light / Wiper Stalk
tightening torque in MRPL
make Combi Switch
6 to 8 kgf-cm
Clock Spring
1.2Nm
