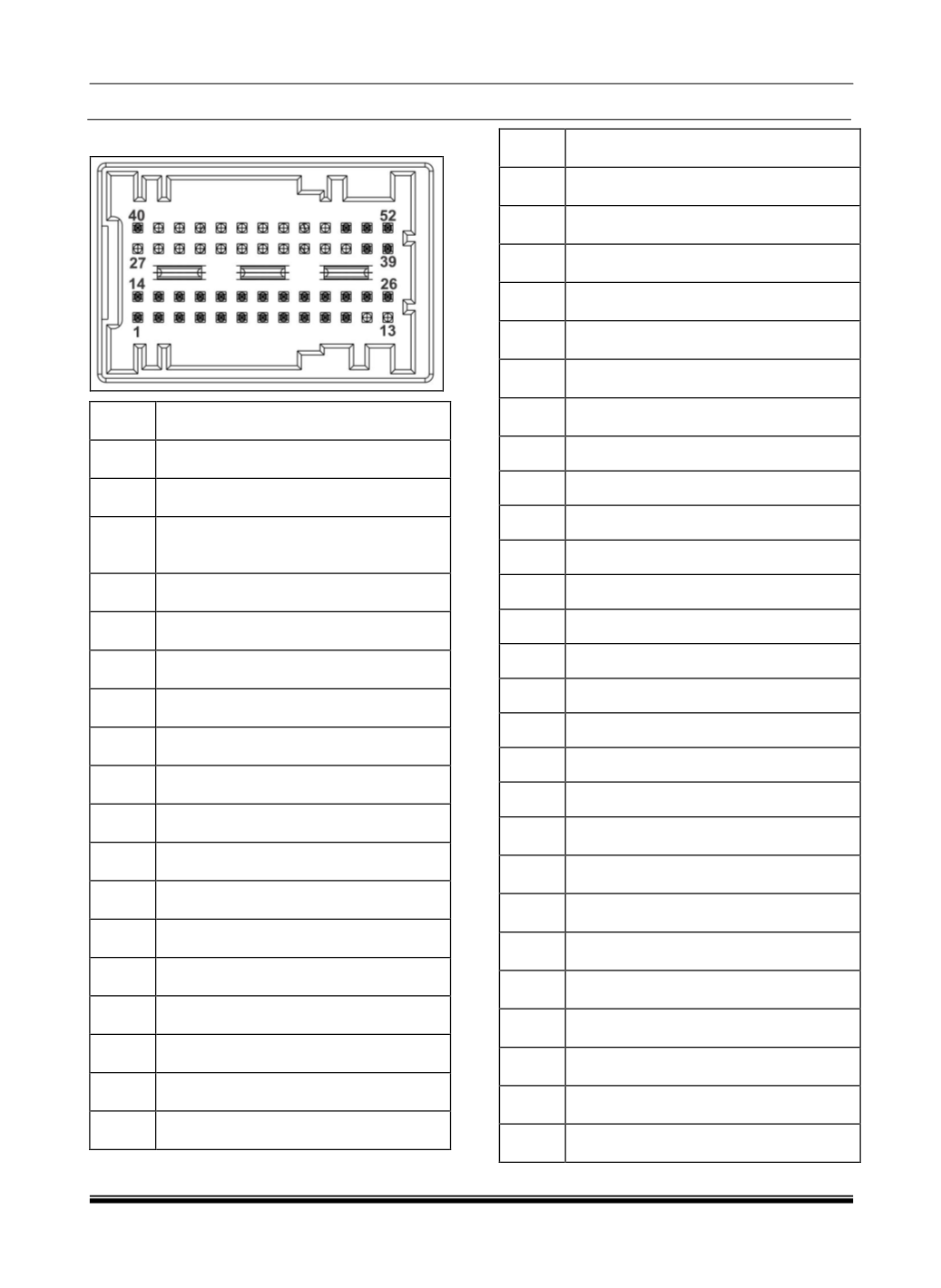

CONNECTOR D
PIN
DETAILS
1
Wiper Front Low High Relay Control
2
Global Closing signal(Sunroof)
3
Central
Lock
Internal
Switch
Signal/InternalLockUnlockSwSig
4
Bonnet State
5
Rear Right Door State
6
Low Beam Switch Signal
7
Wiper Front Low Speed Signal
8
Mirror Fold Unfold Switch
9
Smart Entry Wakeup Signal
10
Spare3
11
Auto Light ON Signal
12
CAN_Body_H
13
CAN_Body_L
14
-
15
Tailgate State
16
Cent Unlock Internal Switch Signal
17
Rear Left Door State
18
Main Beam Switch Signal
19
Wiper Front High Speed Signal
20
Cockpit dimming Signal
21
-
22
Wiper Rear Fixed Internal Signal
23
ML Fail safe Switch Signal
24
Spare4
25
LIN 2
26
Battery GND3
27
-
28
-
29
-
30
-
31
-
32
-
33
-
34
-
35
-
36
-
37
-
38
Roof Lamp LED Out
39
DRL Position Lamp Control RH
40
Head Lamp High Beam Relay
41
-
42
-
43
-
44
-
45
-
46
-
