ELECTRICAL
41
7. IMMOBILIZER SYSTEM (IF APPLICABLE)

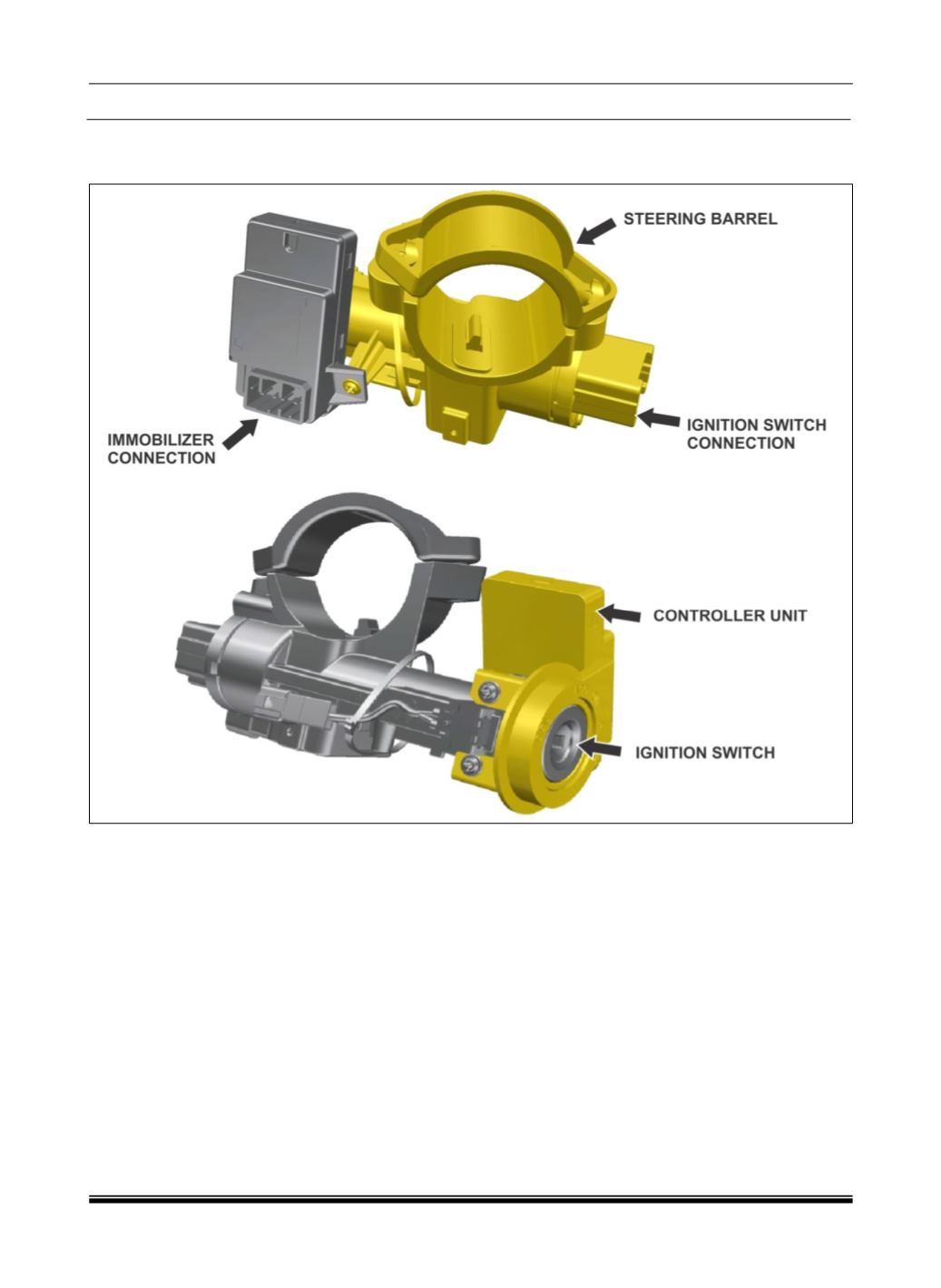

IMMOBILIZER SYSTEM DESCRIPTION
Immobilizer system is designed to prevent vehicle
theft by electronically disabling the engine starting
system. The engine can be started only with
vehicle’s original immobilizer ignition key which
has an electronic identification programmed
code. The electronic key communicates the
identification code to Immobilizer control unit (ICU)
when the key is turned to the “Ignition ON” position.
Immobilizer comes with two Electronic keys (E-
key), (maximum 6 E-keys are possible). The
immobilizer used is based on CAN system.
CAUTION
As CAN communication protocol doesn’t work
beyond 18V, vehicle will not start under “Jump
Start with voltage > 18 V” conditions.
ABBREVATIONS
SCL - Steering Column Lock
ICU - Immobilizer control unit
EMS - Engine management system
ECU - Electronic control unit
DTC - Diagnostic Trouble Code
AES - Advanced encryption standard
E-Key - Electronic Key
W/H - Wiring Harness
SPD - Spare Part Division
