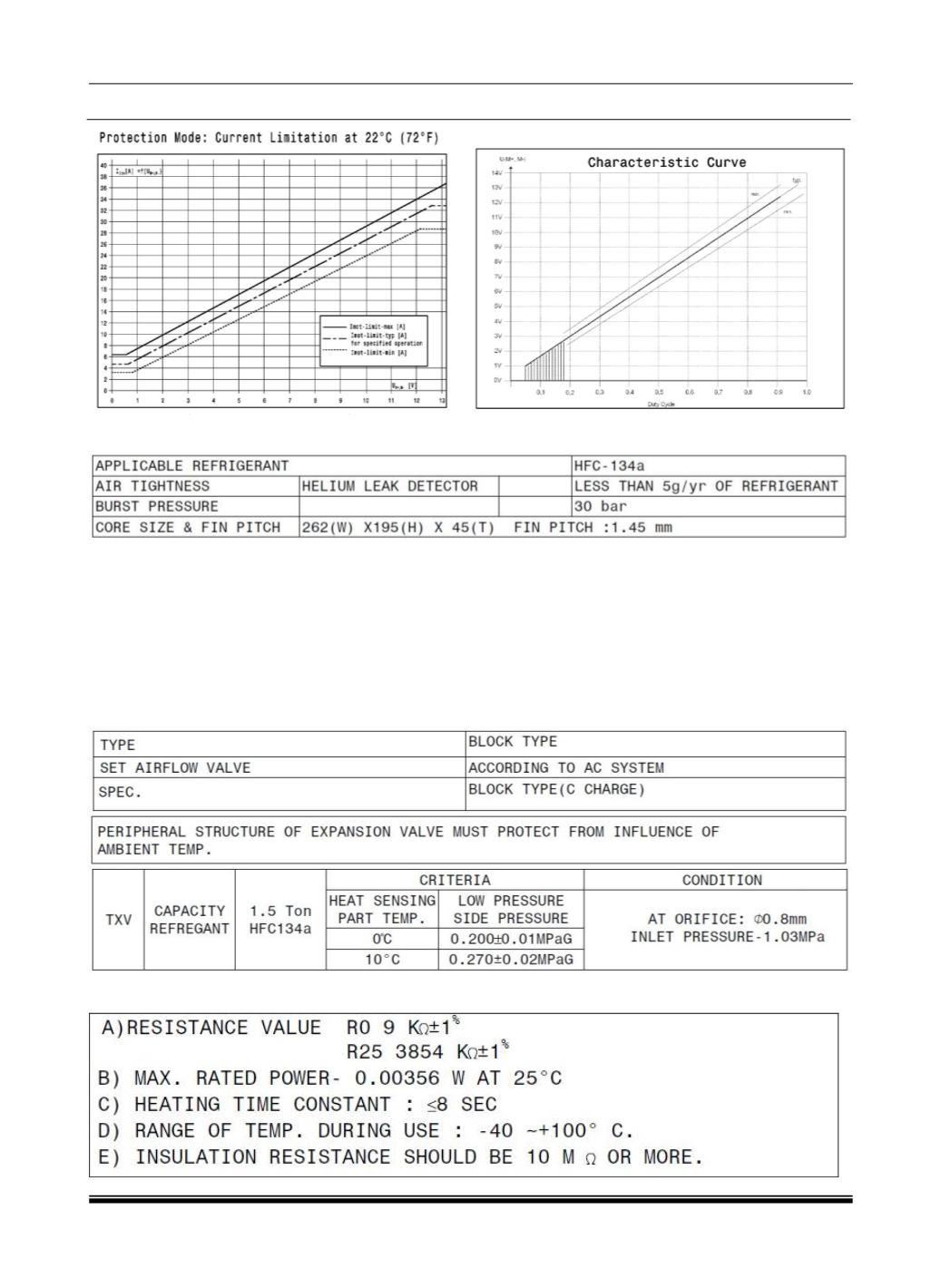

D. SPECIFICATION EVAPORATOR CORE
Please see below sizes for evaporator and heater core
1) Evaporator : Total size : 262 X 235 X 48.5mm
Core size: 262 X 195 X 45 mm
2) Heater : Total size : 219.6 X 181.35 X 40 mm
Core size: 184.6 X 181.35 X 34 mm
E. SPECIFICATION EXPANSION VALVE
F. SPECIFICATION SENSOR
