HVAC
48

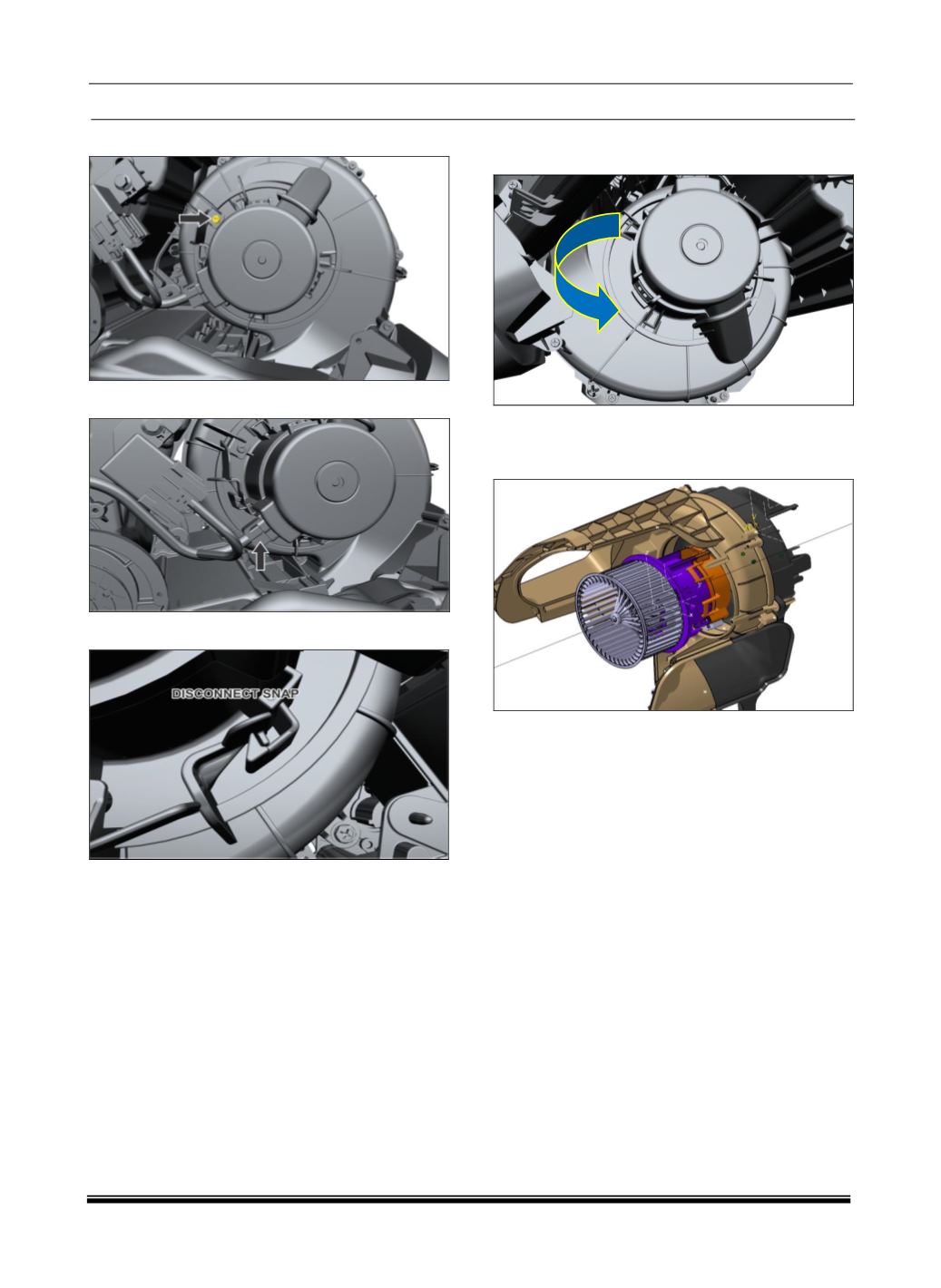

5. Remove one screw on blower Assembly.
6. Disconnect Electrical connection from Blower.
7. Disconnect the snap
8. Rotate Blower assembly by 20 degree in anti-
clockwise direction.
9. After rotating the blower assembly by 20 degree
in anti-clockwise direction take out the blower
assy. From left side in shown direction.
ASSEMBLY
For assembly follow the reverse procedure of re-
moval.
