392 / 745
SUSPENSION
30

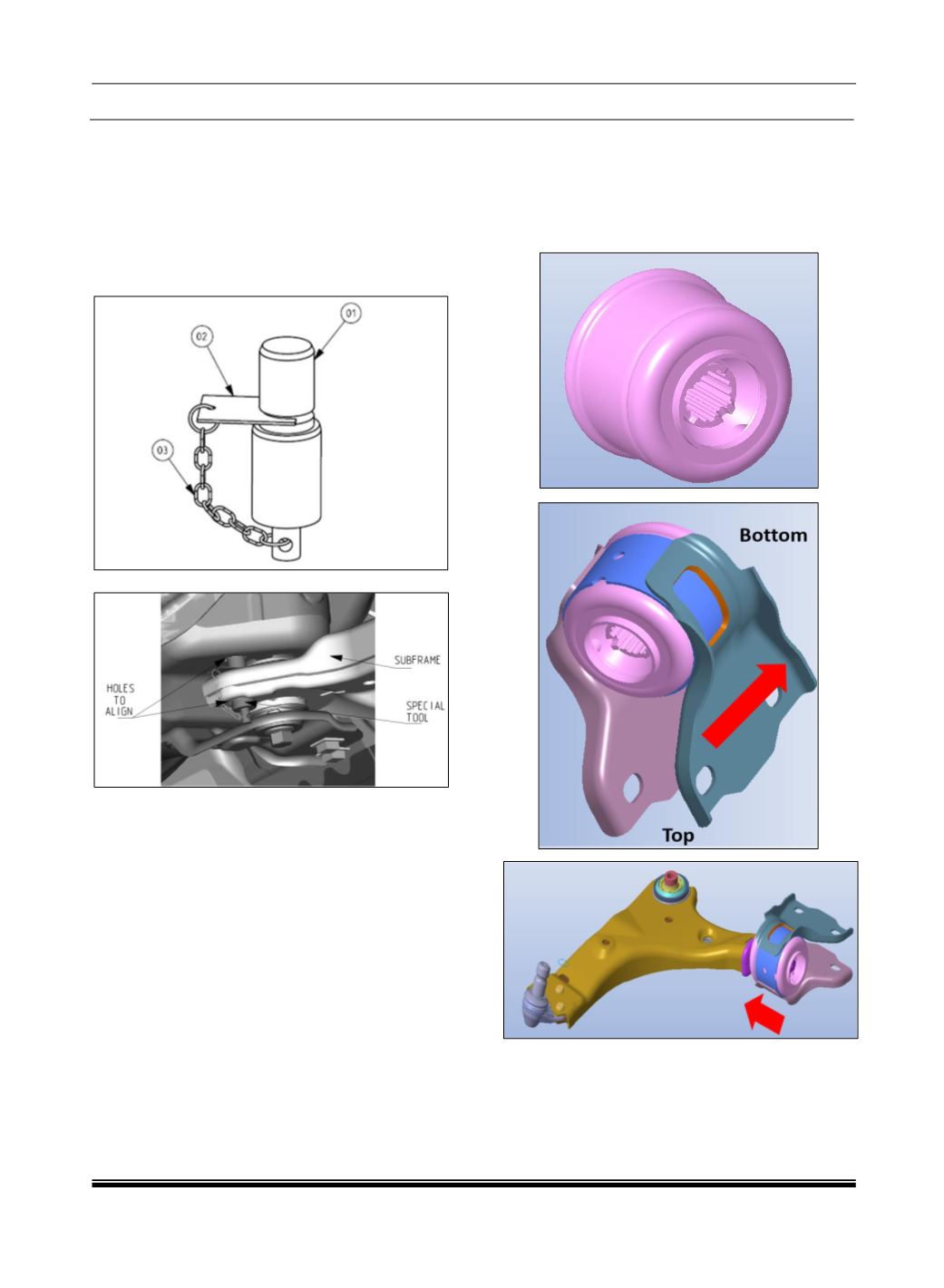

15. INSTALLATION
OF
SUBFRAME
ASSEMBLY
Follow the Reverse Procedure of removal of sub
frame assembly.
Sub frame to be aligned to BIW with help of
Sub frame Fixture RH / LH 541258903101.
Locating holes are available in sub frame &
BIW at rear.
For tightening sub frame bolts, 6 point hex
head socket is recommend. Don’t use 12
point hex socket.
NOTE:
Do not reuse subframe mounting bolt. It is only for
one time use.
Do not reuse the lower ball joint to knuckle
mounting bolt & LCA front pivot bolt.
Use Torx hex socket for tightening of LCA front
pivot bolt.
16. LCA REAR HYDRA-BUSH INSTALLATION
1. Place the bracket on the press table and
place the bush on the top.
2. Press the bush until it fits completely into the
bracket.
