DRIVESHAFT

13

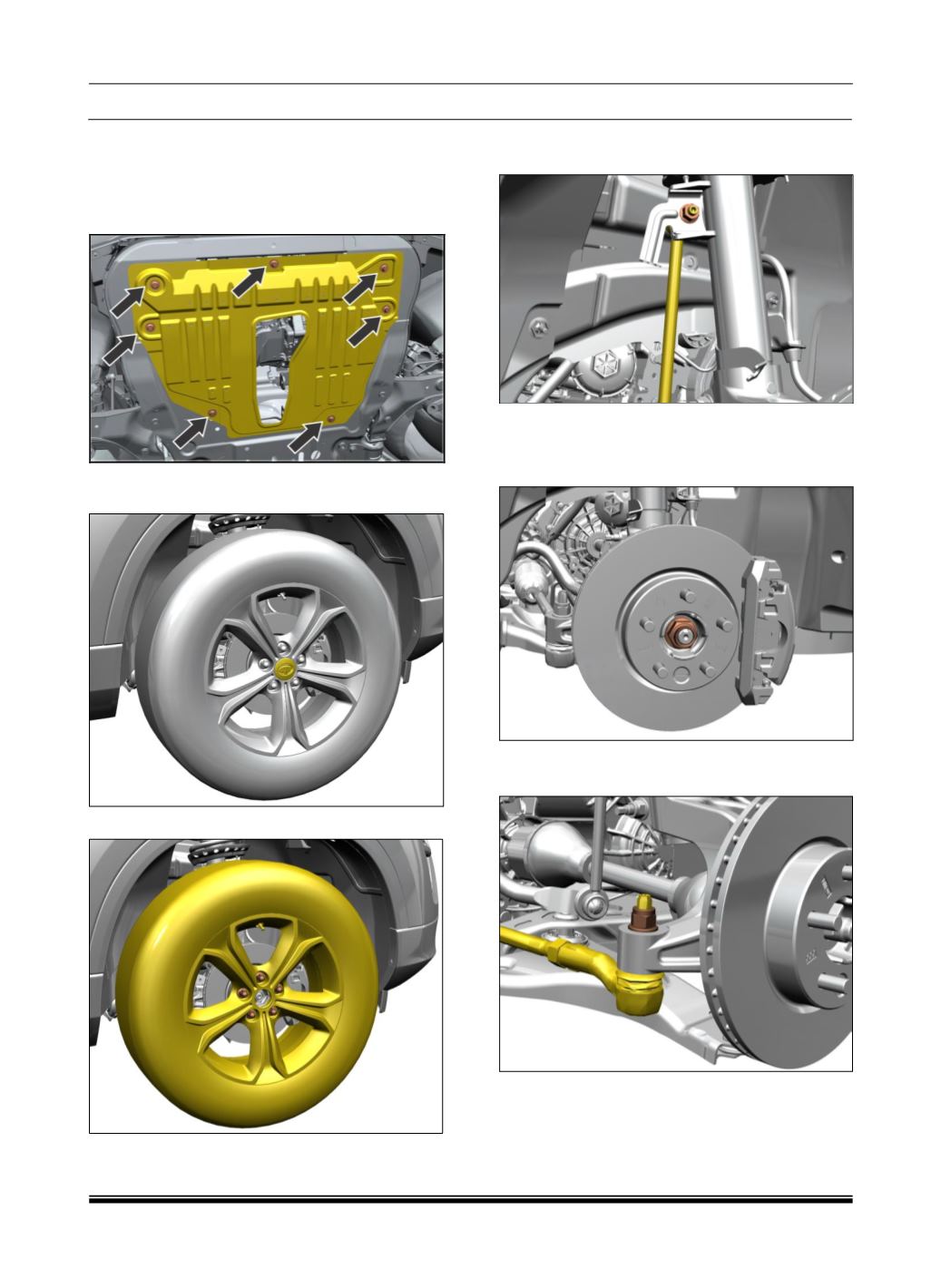

B. RH DRIVE SHAFT REMOVAL

1. Lift the vehicle on using two post lift and

remove the front wheels.

2. Remove the mounting bolts and take out the

engine guard underbody.

3. Lower the vehicle on two post lift. Remove

wheel Cap.

4. Remove wheel nut & take out wheel.

5. Remove ARB link with wheel speed sensor

bracket from front strut.

6. Remove driveshaft nut & spacer.

NOTE:

To restrict rotation of driveshaft apply

Brake.

7. Remove Tie Rod ball joint nut & spacer from

knuckle RH sides.
