C635 TRANSAXLE

57

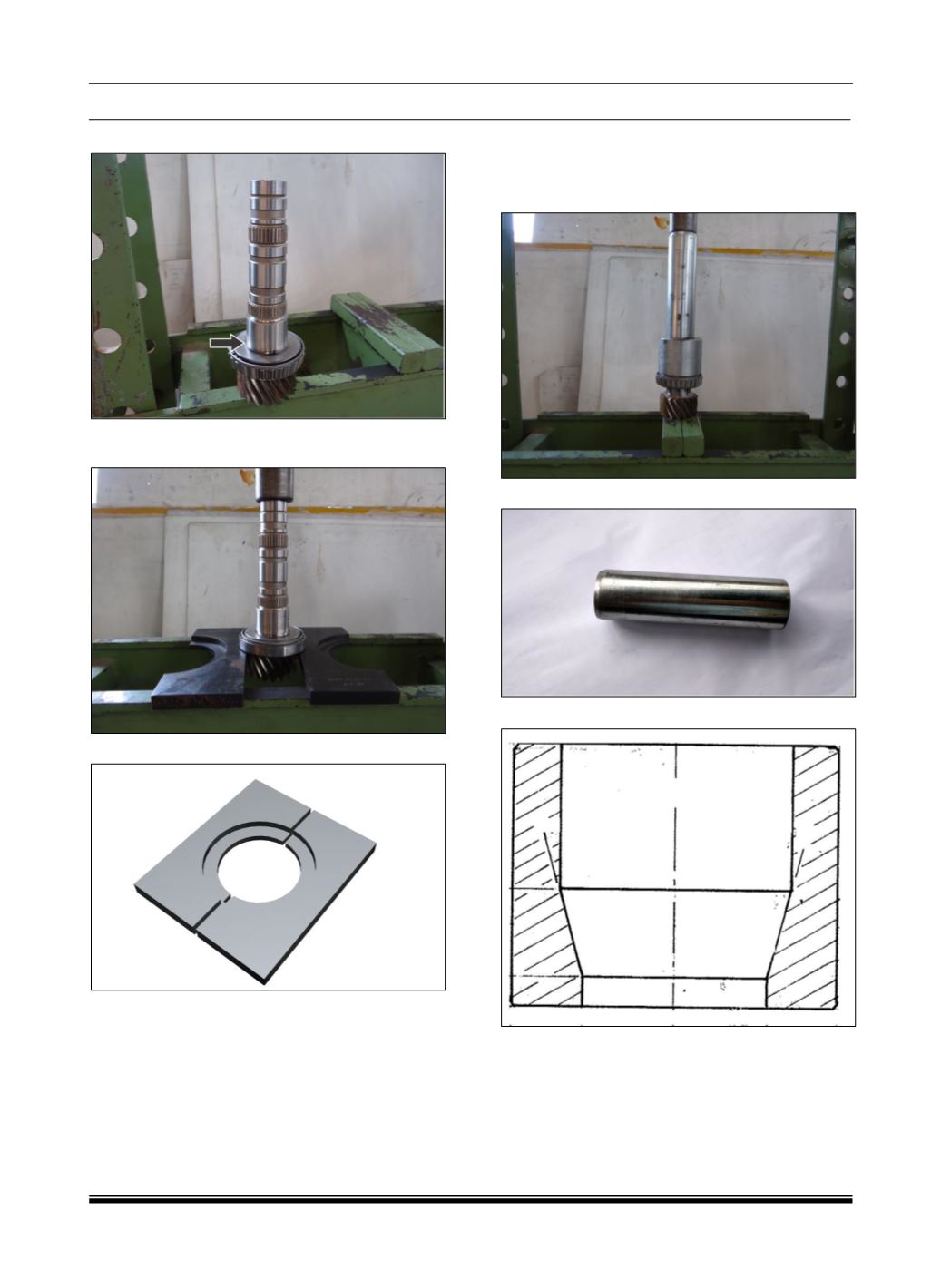

9. Remove the front bearing snap ring.

10.Remove the front bearing using and a suitable

press.

SUPPORT PLATE 5412 5890 2606

23.ASSEMBLY OF OUTPUT SHAFT2 (3

RD

, 4th

and REV.)

1. Install the bearing using C-3095-A and a

suitable press.

DRIFT INSTALLER 2654 5890 3511

REDUCER - 2702 5890 3212
