SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
7

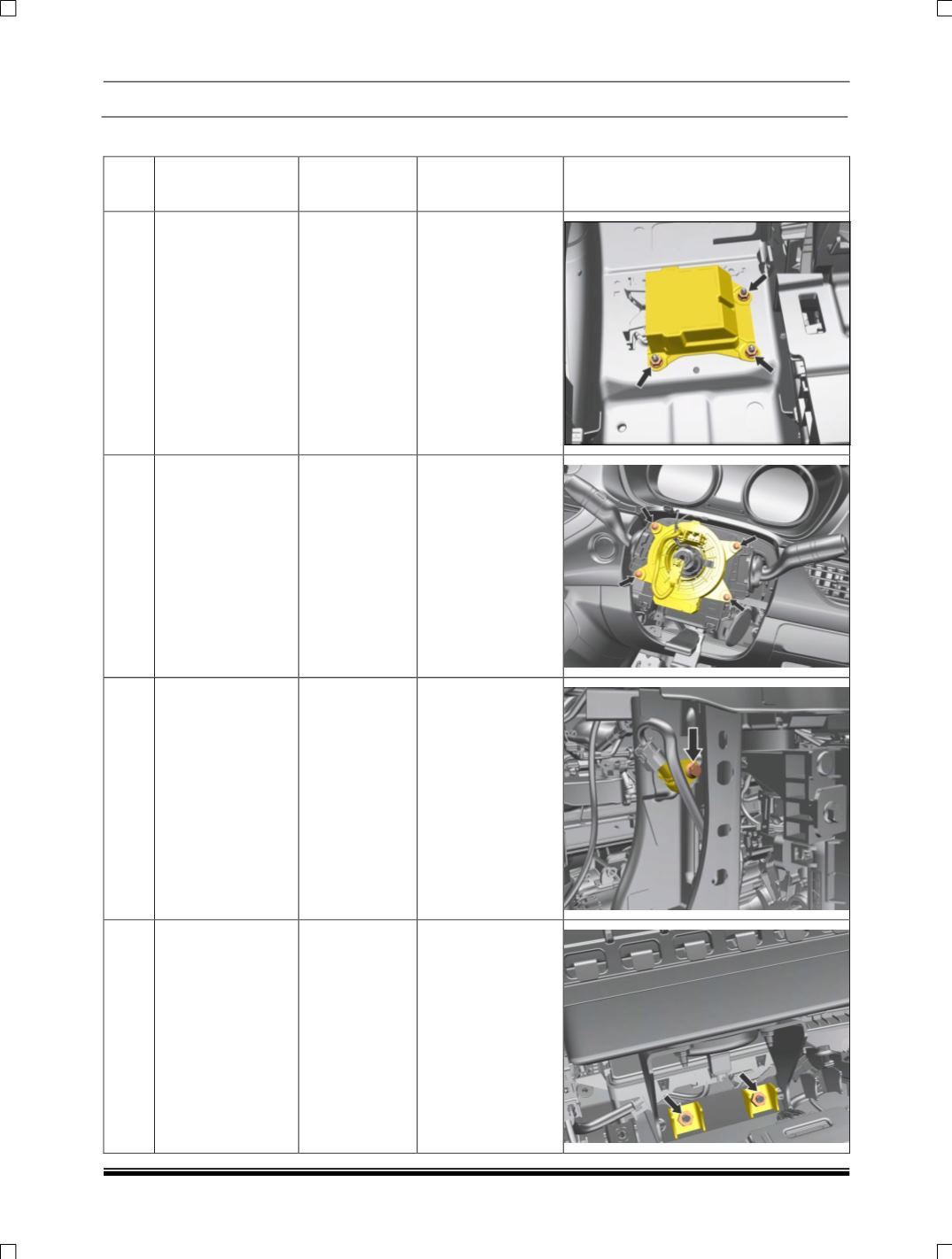

6. TIGHTENING TORQUES
Sr.
No.
DESCRIPTION
FASTENER
TIGHTENIG
TORQUE (Kgfm)
LOCATION
1
Air Bag ECU
mounting
Hex flange nut
AM6
0.917 ± 0.15
2
Clock Spring
mounting
Flange screw
C-ST 4.2X13
0.3~0.5
3
Front impact
sensor mounting
Hex flange
bolt M6X20
0.95 ± 20%
4
PAB unit
mounting on
bracket
Hex Flange
screw M6X16
1 ± 10%
