Step 9:
Check wiring harness is fitted properly or not
Step 10:
Activate park assist system, and check in Head Unit, whether sensor able to detect or not. This is to
ensure, you have done proper fitment.
Step 11:
In music system if HMI shows all sensors areas screen, it means, sensor are connected properly.
If “critical fault” appears on the screen, Check DTCs again if that particular sensor showing faulty or not. If
Yes, do the re fitment. Else, replace with other another new sensor.
Note:
1. While assembling, if sensor falls on concrete surface from above 1 meter height, do not use that sensor
for fitment
2. Due to any damage if holder comes out of the bumper, then replace with new bumper.

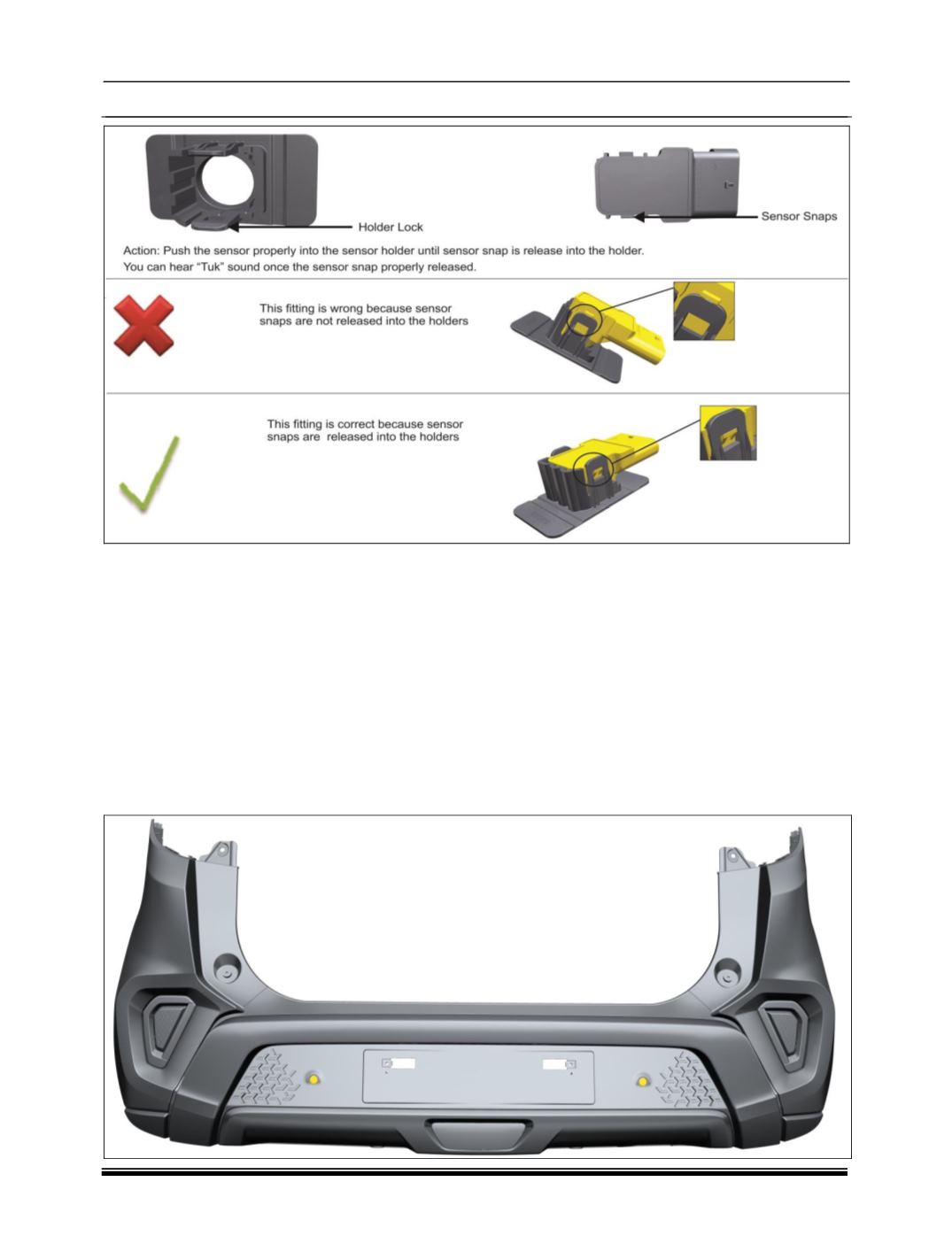

The view of rear bumper after proper installation of sensors as below:
