FUSE AND RELAY REPLACEMNET:

1.Remove the cover of the fuse box.

2.Take out the fuse or relay from its base.

3.Check the Fuse/relay.

faulty replace with same ratting of fuse and

relay.

28.3 CABIN FUSE AND RELAY BOX

This fuse box is part of main wiring harness. For

details refer the below fuse box sticker fitted on

steering column lower cover. For other pin out

details of fuse box refer the power distribution II

circuit schematics.

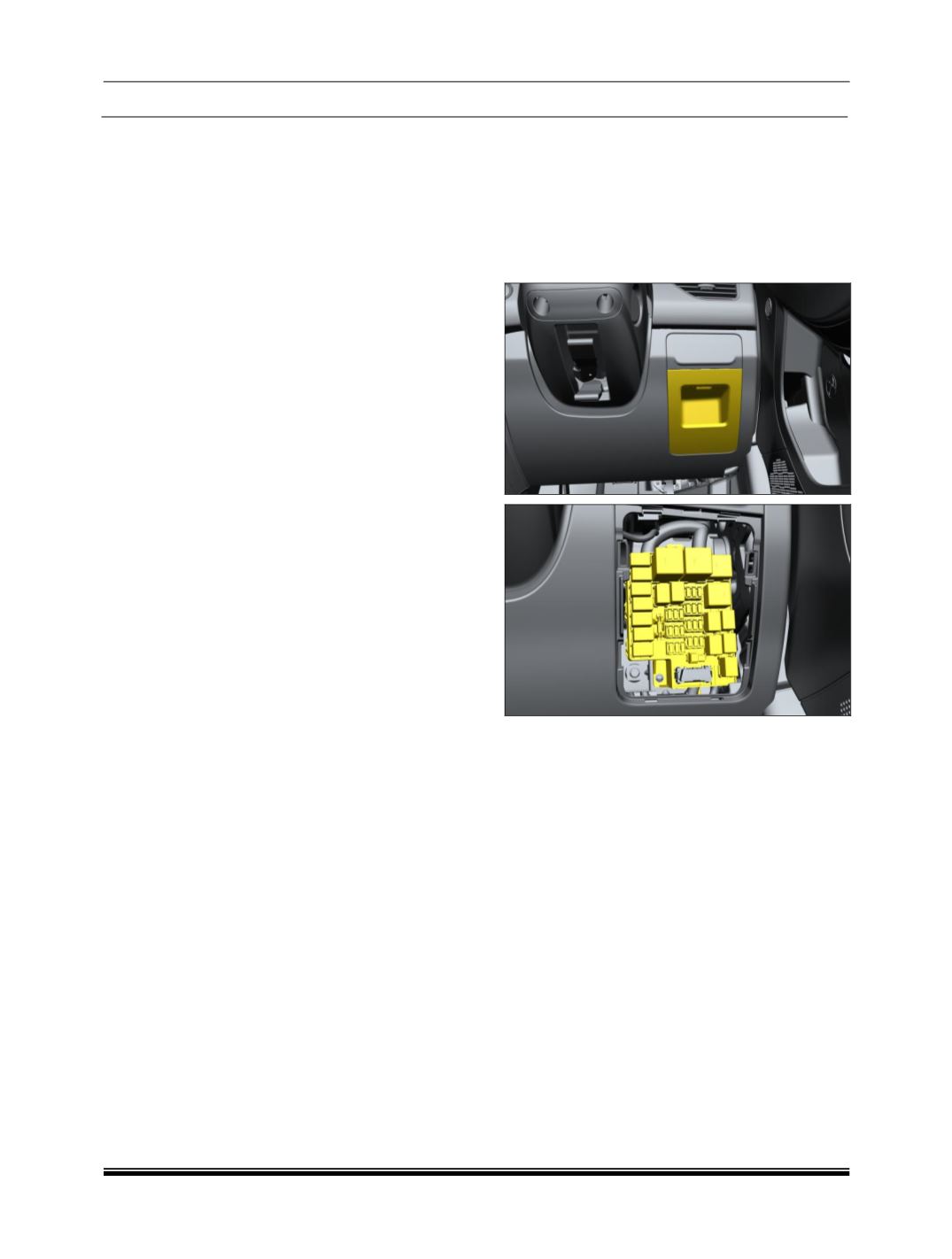

LOCATION
