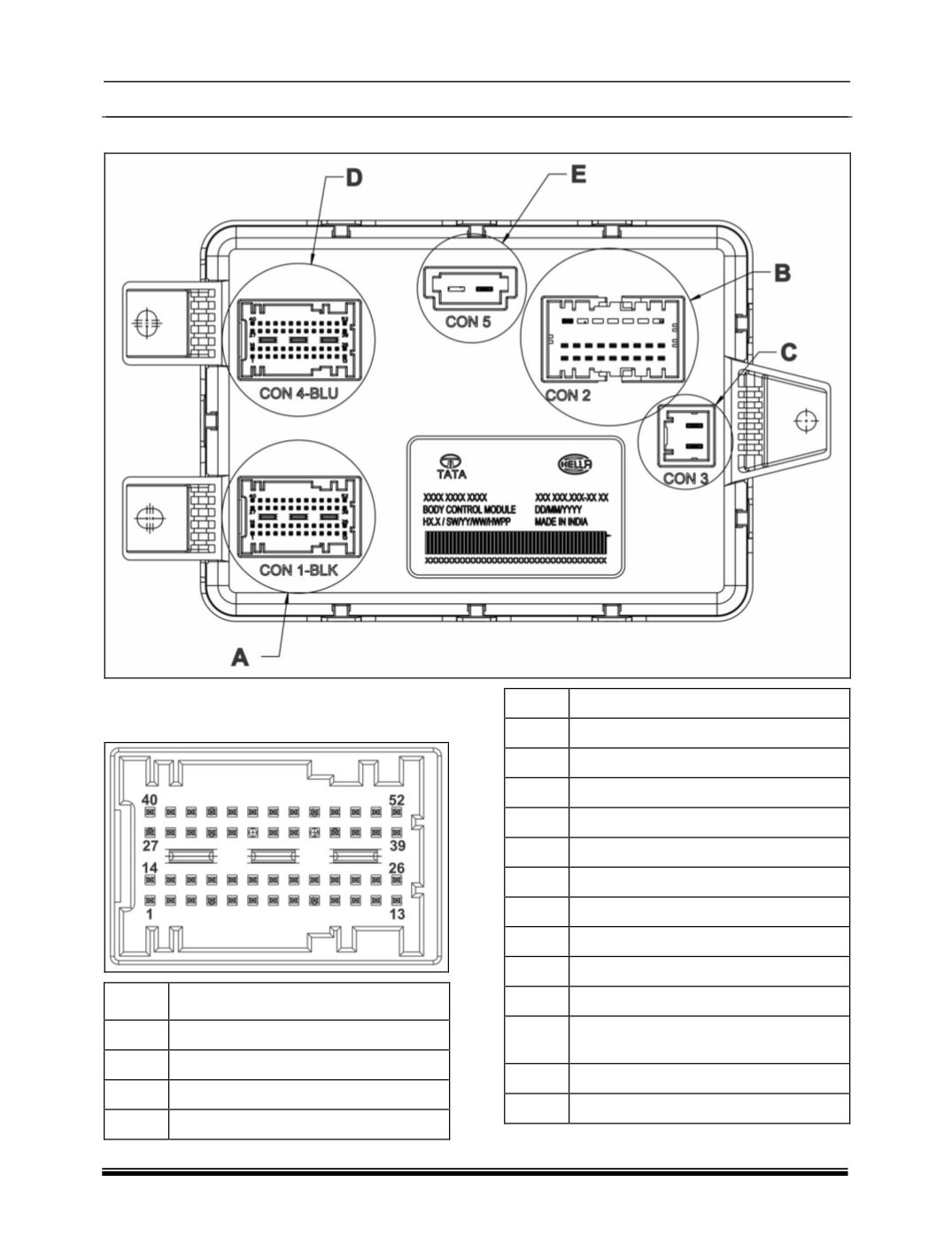

CONNECTION DETAILS
PINOUT DETAILS
CONNECTOR A
PIN
DETAILS
1
Driver Door State
2
Transport Link Signal
3
Door Latch Set Switch Signal Driver
4
Headlamp ON Sig
5
Wiper Rear park signal
6
ESS Switch Signal
7
Turn RH Switch Signal
8
Driver Door Unlock Sig
9
Ignition Key State IGN
10
Key lN Signal
11
Infotainment Removal Detection
12
Wash Rear Switch Signal
13
Wiper Rear Mode Switch Signal
14
Co-Driver Door State
15
Position Lamp Switch Signal
16
Door Latch Reset Switch Sig Driver /
Driver window down switch
17
Tailgate switch Input
18
Wiper Front Park Signal
