1.2L REVOTRON ENGINE
75
C. LUBRICATION SYSTEM

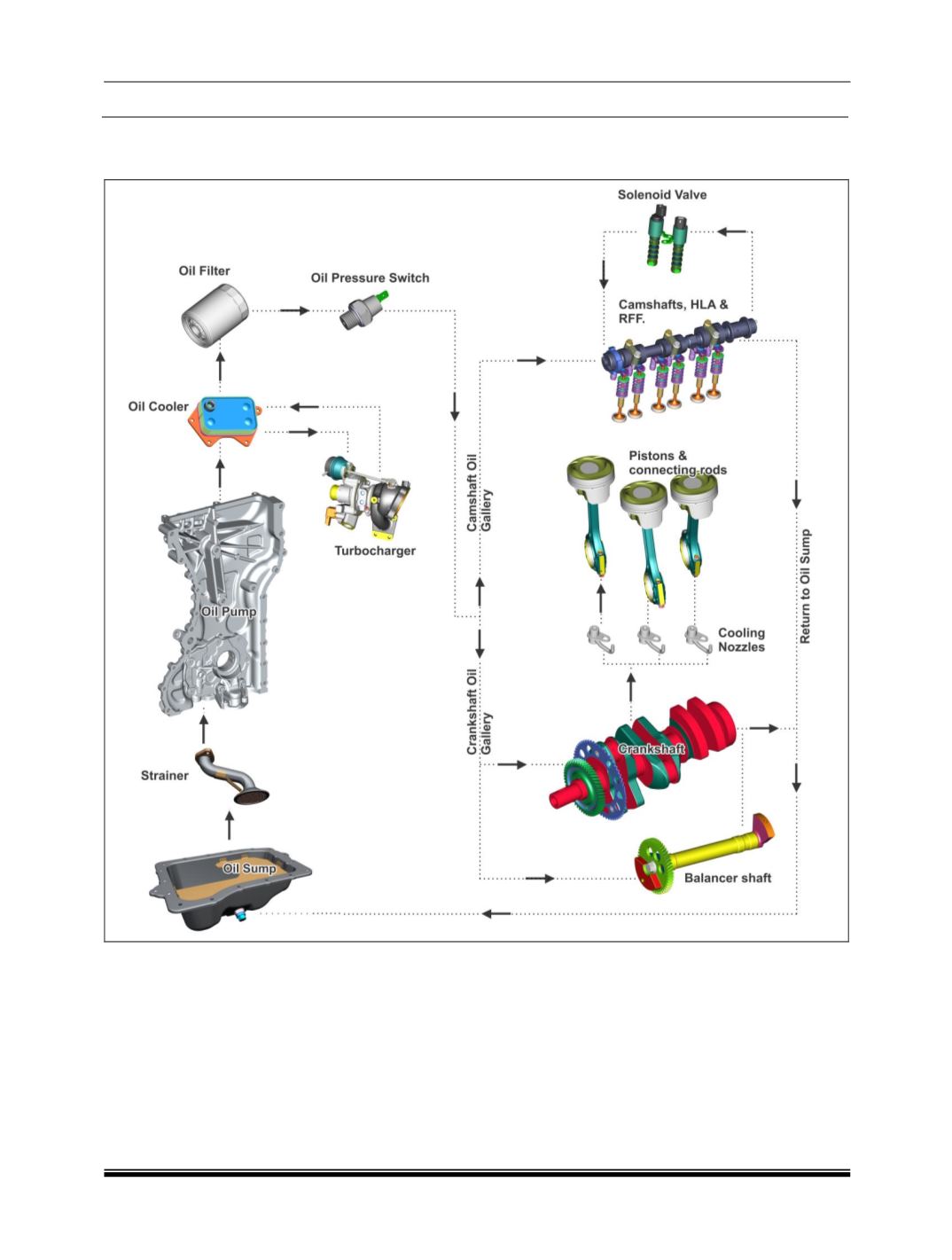

Lubrication System Schematic Layout
1
Oil Sump
8
Camshaft, HLA & Tappet Assy.
2
Strainer
9
Solenoid Valve
3
Oil Pump
10
Piston & Connecting rods
4
Oil Cooler
11
Cooling Nozzles
5
Oil Filter
12
Crankshaft
6
Oil Pressure Switch Sensor
13
Balancer Shaft
7
Turbocharger
