ELECTRICAL
11

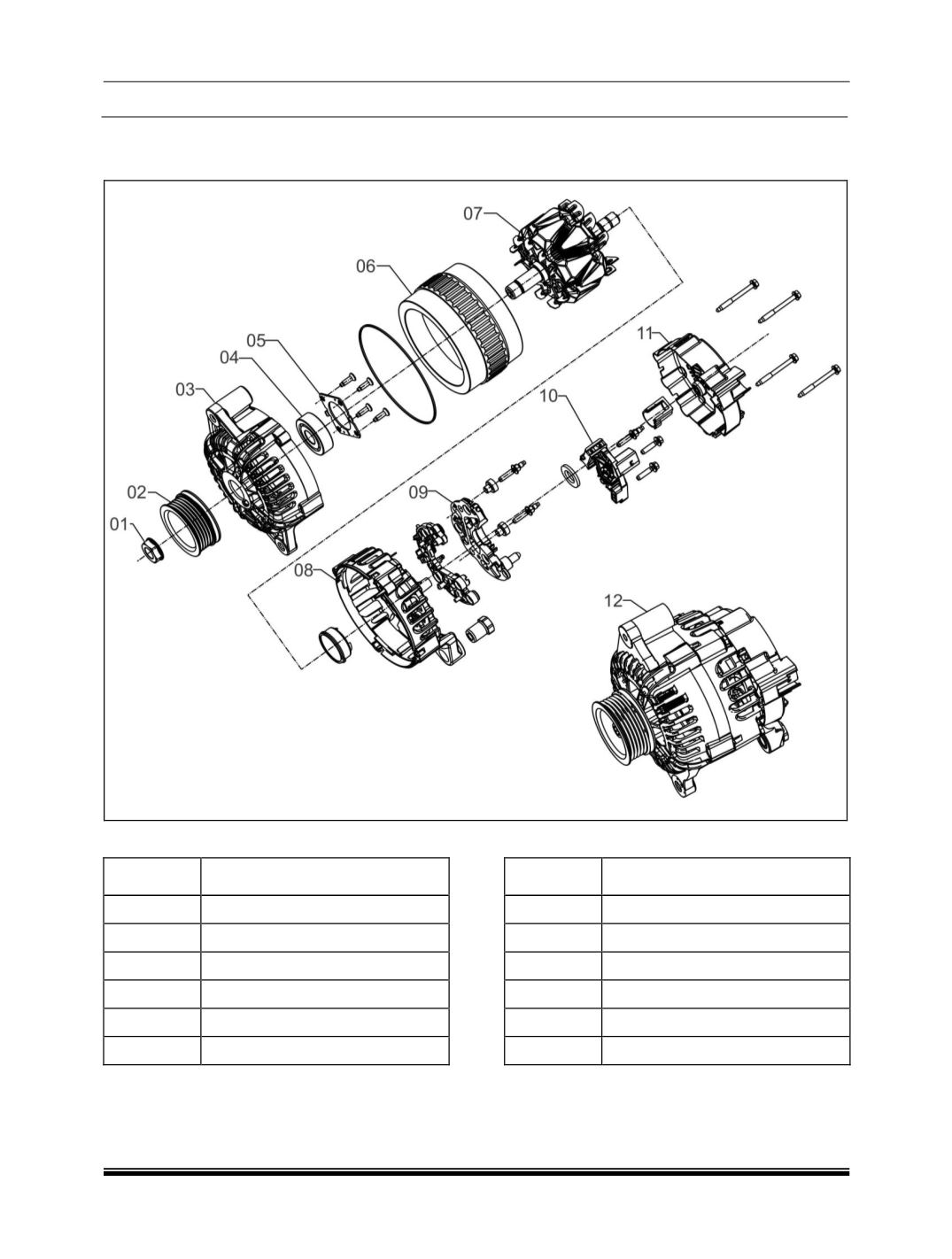

EXPLODED VIEW
For 1.5L CRAIL (Diesel Engine)
ALTERNATOR (PART LIST):
ITEM NO.
DESCRIPTION
01
Pulley Nut
02
Pulley
03
Front Bracket
04
Front Bearing
05
Retainer Bracket
06
Stator Assembly
ITEM NO.
DESCRIPTION
07
Rotor Assembly
08
Rear Bracket
09
Heat Sink
10
Regulator
11
Rear Cover
12
Alternator_14.5V_110A
